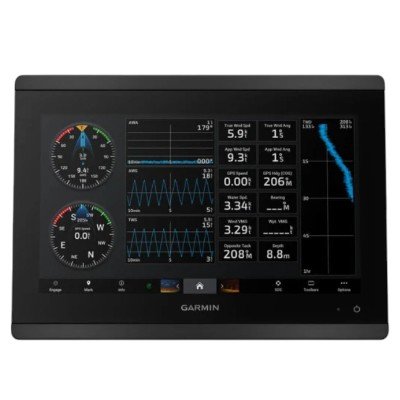

The Garmin GPSMAP® 8612 with built-in Garmin Navionics+™ is a flagship 12-inch chartplotter designed for the North American market. It upgrades the standard “Worldwide Basemap” found on the 8400 series by including high-detail coastal and inland cartography directly out of the box
The preloaded Garmin Navionics+™ provides comprehensive coverage for the following regions:
United States: Full coverage of all coastal waters, plus more than 42,000 lakes, rivers, and inland waterways (including Alaska and Hawaii).
Canada: Detailed coastal coverage for British Columbia, the Great Lakes, the St. Lawrence Seaway, New Brunswick, and Nova Scotia.
International: Coverage extends to Bermuda, the Bahamas, Baja California, the Gulf of California, Johnston Atoll, and Palmyra Atoll/Kingman Reef.
| Feature | Specification |
| Display | 12″ Full HD IPS Touchscreen (1920 x 1080) |
| Mapping | Preloaded Garmin Navionics+™ (US & Canada) |
| Input Voltage | 10 to 32 Vdc |
| Current Draw | 1.3 A (Typical); 6.0 A (Max) |
| Water Rating | IPX7 |
| GPS Receiver | High-sensitivity 10 Hz GPS/GLONASS/Galileo |

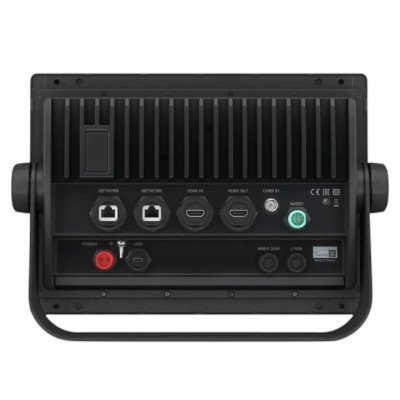

Interface and Networking
| Connection Type | Quantity / Details |
| Garmin Marine Network | 2 Ports (Lync) |
| NMEA 2000® | 1 Port |
| NMEA 0183 | 1 Input / 1 Output (Differential) |
| Video Integration | 1 BNC Composite Input; 1 HDMI Input; 1 HDMI Output |
| J1939 | 1 Port (Engine & vessel data) |
| Card Slots | 2 microSD™ slots (up to 32 GB each)
|
Auto Guidance+™: Uses the built-in mapping to suggest a dock-to-dock path based on your vessel’s depth and overhead clearance.
Daily Map Updates: Includes a 1-year subscription for daily chart updates via the ActiveCaptain® app.
SmartMode™: Allows you to synchronize multiple bridge displays to a single theme (e.g., “Fishing” or “Docking”) with one touch.
OneHelm™: Provides a unified interface for third-party systems like EmpirBus™ digital switching, Victron power systems, and specialized lighting.
SailAssist™: Includes racing features like the starting line, laylines, and an enhanced wind rose.
Note on Sonar: The standard GPSMAP 8612 is a non-sonar unit. For built-in sonar support (CHIRP, ClearVü, and SideVü), the 8612xsv model is required, or an external GSD™ sonar module must be networked to this unit.
