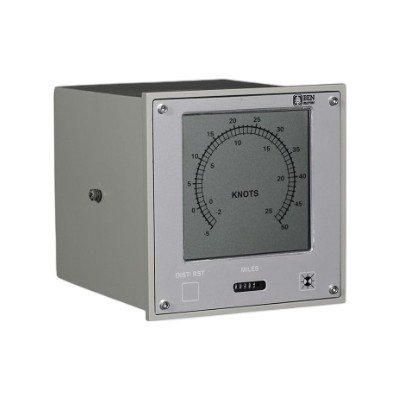

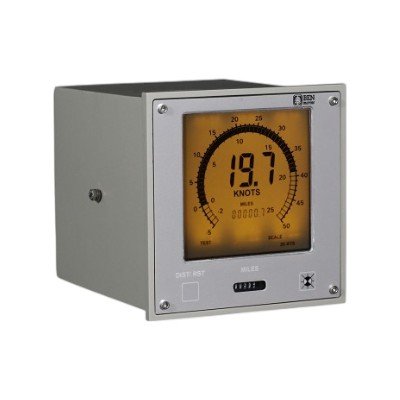

The RGD100 repeater displays data from a speed log through an RS232 or NMEA 0183 RS422 serial link. Data is displayed on an LCD screen. Speed is displayed in numerical and pseudo-analogue modes. Distance is displayed in numerical mode and can be reset by the operator.
| Parameter | Specification |
|---|---|
| Manufacturer | AMI Marine Ltd. |
| Model | RGD100 |
| Equipment Type | Digital Speed & Distance Repeater |
| Display | LCD Display |
| Displayed Data | Speed Through Water (STW), Distance Run, Log Status |
| Speed Display Modes | Digital & Pseudo-Analog |
| Digital Speed Resolution | 0.1 knot |
| Pseudo-Analog Resolution | 1 knot |
| Distance Resolution | 0.1 Nautical Mile |
| Distance Reset | User Resettable |
| Speed Scale | -2 to +25 knots or -5 to +50 knots |
| Communication Interface | RS232 or RS422 (NMEA 0183) |
| Communication Standard | IEC 61162-1 (NMEA 0183) |
| Brightness Control | Front Panel Dimmer |
| Status Indication | Log Status, Test Mode, High/Low Speed Alarm Indication |
| Power Supply | 24 VDC (Optional 115 VAC or 230 VAC, 50/60 Hz) |
| Enclosure Protection | IP55 |
| Mounting | Flush Mount or Bulkhead Mount |
| Dimensions (L × W × D) | 144 × 144 × 200 mm |
| Weight | Approximately 1.6 kg |
| Approvals | IMO Wheelmark, Bureau Veritas Type Approved |
