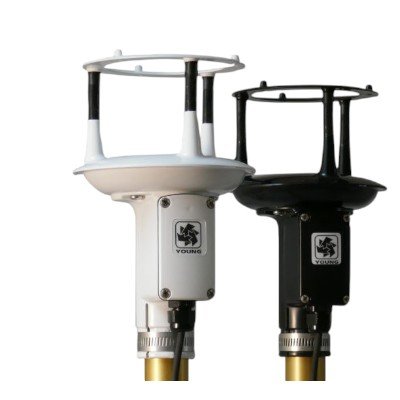

The YOUNG Model 91000 ResponseONE™ Ultrasonic Anemometer measures wind speed and wind direction with no moving parts. The IP66 rated construction enables reliable operation in severe environments. Each sensor is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range. Standard serial output formats include SDI-12, NMEA, and ASCII text. Output may be continuous or polled to conserve power. Standard RS-232 or RS-485 serial formats enable direct integration with YOUNG displays, marine NMEA systems, data loggers or other compatible serial devices. The sensor mounts on a standard 1-inch IPS pipe. A mounting orientation ring is included that engages with the base of the sensor to retain orientation when the sensor is removed for maintenance. Terminations are made in a junction box at the base of the sensor by small clamp-style connectors
| Parameter | Specification |
|---|---|
| Range | Wind speed: 0–70 m/s (156 mph)Wind direction: 0–360° |
| Accuracy | Wind speed: ±2% ±0.3 m/s (0–30 m/s), ±3% (30–70 m/s)Wind direction: ±2° |
| Resolution | Wind speed: 0.01 m/sWind direction: 0.1° |
| Threshold | <0.01 m/s |
| Response Time | <0.25 seconds |
| Serial Outputs | RS-232, RS-485/422, SDI-12Formats: ASCII, ASCII Polled, SDI-12, RMYT, NMEABaud rates: 1200, 4800, 9600, 19200, 38400Units: m/s, mph, knots, km/hrWind format: Speed & Direction or U & VStatus indicator: Standard with ASCII & NMEA |
| Power Requirement | 10–30 VDC, 7 mA typical, 80 mA maximum |
| Operating Temperature | −40 to +60°C |
| Protection Class | IP66 |
| Dimensions | Overall height: 22 cm (8.7 in)Diameter: 13.5 cm (5.3 in)Mounting: 34 mm (1.34 in) diameter, standard 1-inch pipe |
| Weight | 0.36 kg (0.8 lb) |
| Shipping Weight | 1.27 kg (2.8 lb) |
