The Furuno FELCOM 18 is a marine Inmarsat-C Mobile Earth Station (MES) designed for GMDSS communication and safety applications. It provides two-way store-and-forward data communication between vessels and shore stations.

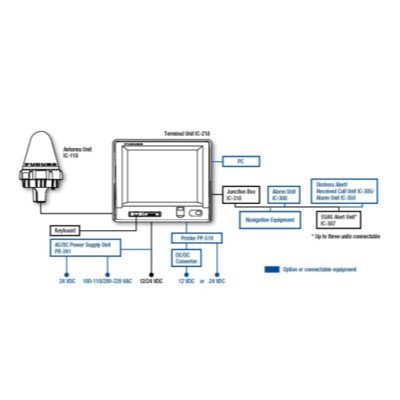

The system supports distress alerting, EGC/SafetyNET, FleetNET, telex, e-mail, fax, data reporting and polling. It also supports LRIT and can be configured for SSAS (Ship Security Alert System) applications. The terminal incorporates an EGC receiver and uses SD card media for data recording. An optional GPS receiver, printer, AC/DC power supply, alarm unit, and distress alert unit are available.
| Parameter | Specification |
|---|---|
| Manufacturer | Furuno |
| Model | FELCOM 18 |
| Equipment Type | Inmarsat-C Mobile Earth Station (MES) |
| Application | GMDSS, EGC/SafetyNET, LRIT, SSAS, vessel tracking and messaging |
| Communication Services | Distress alerting, telex, e-mail, data reporting, polling and messaging |
| EGC Receiver | Built-in |
| Satellite Service | Inmarsat-C |
| Transmit Frequency | 1626.5–1646.5 MHz |
| Receive Frequency | 1537.0–1544.2 MHz |
| Channel Spacing | 5 kHz |
| Modulation | BPSK |
| Transmit Modulation Rate | 600 / 1200 symbols/s |
| Receive Modulation Rate | 1200 symbols/s |
| Coding | Convolutional coding, rate 1/2 |
| Decoder | Viterbi decoder |
| Minimum G/T | Better than -23 dB/K at 5° elevation |
| EIRP / Output Power | 12–16 dBW at 5° elevation |
| Terminal Unit | IC-218 |
| Display | 10.4-inch Color TFT LCD |
| Display Resolution | 800 × 600 dots (SVGA) |
| Display Brilliance | 11 levels |
| Recording Media | SD Card |
| Antenna Unit | IC-118 |
| Antenna Type | Daisy Loop Antenna |
| Polarization | Right-Hand Circular |
| Receiving Gain | 33–40 dB |
| Receiving Noise Figure | ≤ 1.7 dB |
| Transmitting Gain | 28.5–42.5 dB |
| VSWR | ≤ 2.0 |
| Antenna Cable Length | 30 m standard |
| Serial Interface | IEC 61162-1 |
| Serial Ports | 1 × I/O, 1 × Input |
| LAN Interface | 1 × 100Base-TX Ethernet (RJ45) |
| USB Interface | 1 × USB 2.0 |
| Alarm Output | 1 × Contact Closure |
| SSAS Interface | RS-485, 1200 bps |
| Power Supply | 12–24 VDC |
| Power Consumption – Transmit | Less than 130 W |
| Power Consumption – Receive | Less than 60 W |
| Antenna Operating Temperature | -35°C to +55°C |
| Terminal Operating Temperature | -15°C to +55°C |
| Relative Humidity | Up to 95% at +40°C |
| Antenna Protection Rating | IP56 |
| Terminal Protection Rating | IP22 |
| Environmental Standard | IEC 60945 |
