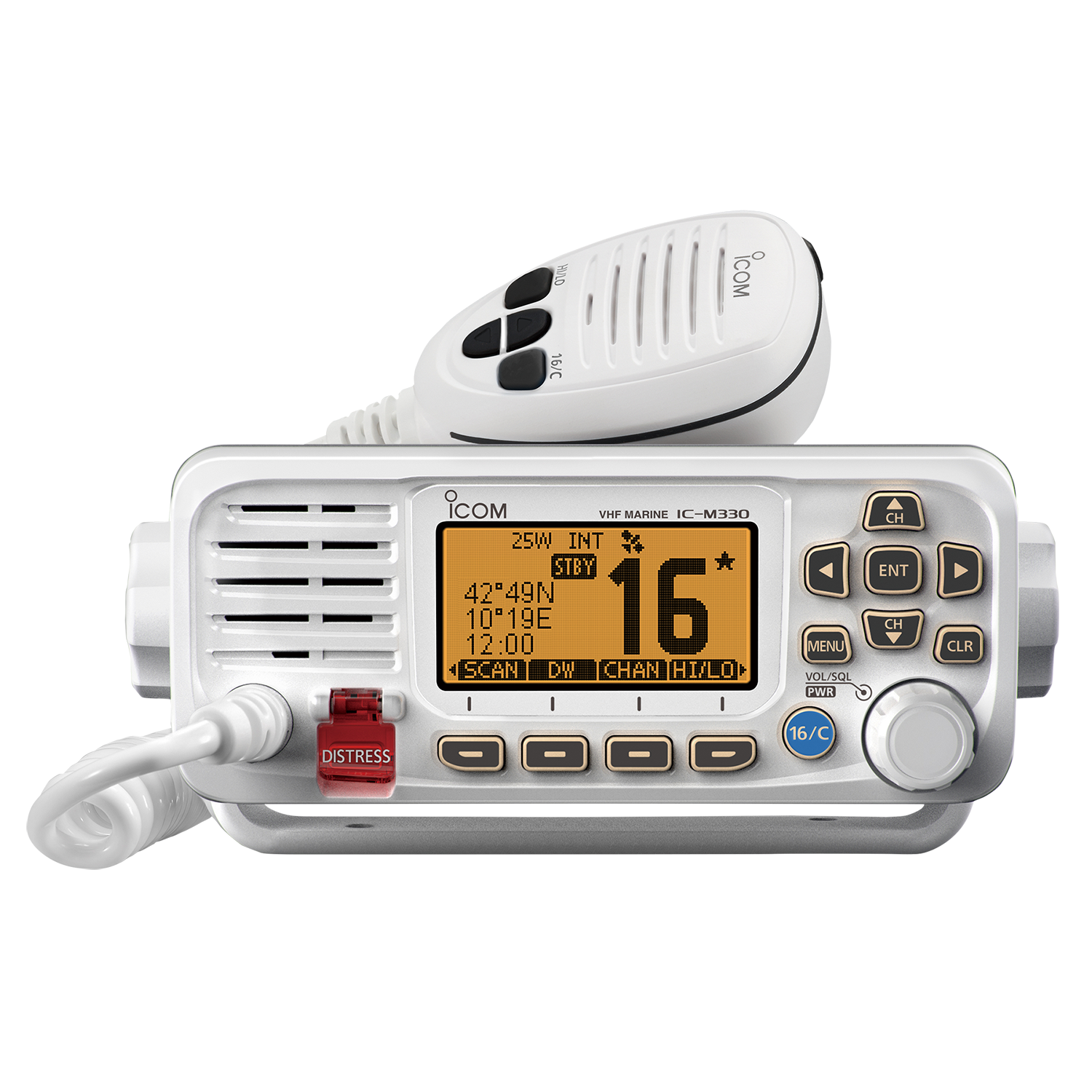

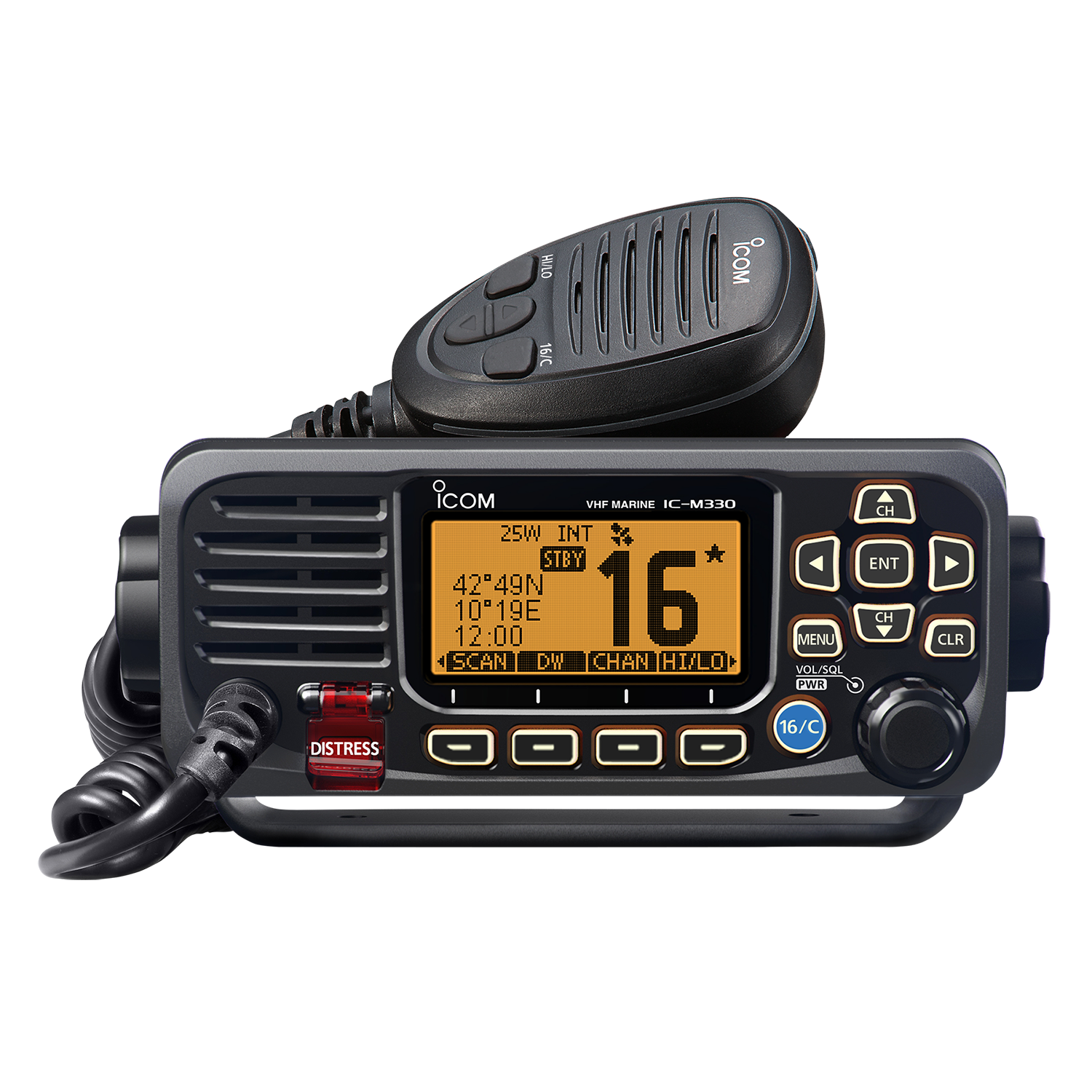

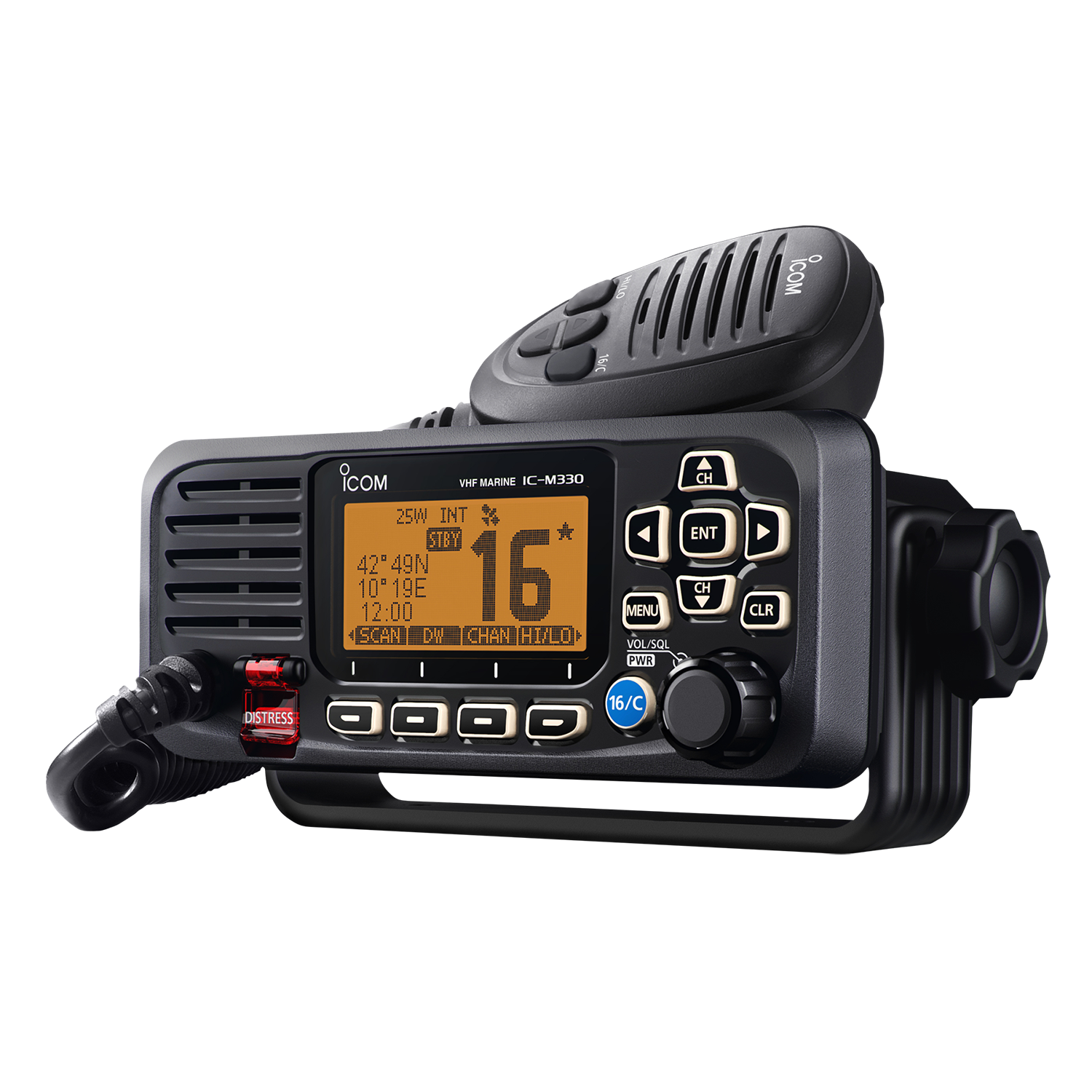

The Icom IC-M330GE is an ultra-compact fixed-mount marine VHF transceiver equipped with an integrated high-sensitivity GPS receiver, manufactured by Icom Inc. in Japan. Designed for space-constrained vessel helms and commercial tenders, the M330GE packs full Class D Digital Selective Calling (DSC) functionality and a 25-watt transmitter into one of the smallest chassis designs in its class.
Featuring a built-in GPS receiver that utilizes GPS, GLONASS, and SBAS systems, the transceiver acquires accurate position, course, and time data instantly without requiring an external GPS antenna hookup—simplifying safety installations and ensuring precise coordinates for DSC distress transmissions. It is housed in an IPX7 waterproof casing and incorporates Icom’s AquaQuake draining function to clear water from the speaker grille.
Key Features:
• Ultra-Compact Form Factor: Space-saving dimensions allow flexible dashboard, overhead, or flush-mount installation in tight wheelhouses and cockpits.
• Built-In High-Sensitivity GPS: Receives GPS, GLONASS, and SBAS data automatically, supplying accurate position fixes for DSC distress calls.
• Class D DSC Built-In: Continuous monitoring of Channel 70 alongside independent receiver capabilities for automated safety and distress alerting.
• IPX7 Submersible Construction: Built to withstand water immersion up to 1 meter depth for 30 minutes.
• AquaQuake Draining Function: Emits acoustic vibrating tones to expel water trapped inside the speaker cone after heavy spray exposure.
| Attribute | Specification Details |
| Manufacturer | Icom Inc. |
| Model / Part Number | IC-M330GE (M330GE) |
| Item Type | Ultra-Compact Fixed-Mount VHF Marine Transceiver with Built-In GPS |
| Frequency Range | Tx: 156.025 MHz – 162.000 MHz; Rx: 156.025 MHz – 161.600 MHz; CH70: 156.525 MHz |
| RF Output Power | 25 Watts (High) / 1 Watt (Low) |
| DSC Class | Class D DSC (ITU-R M.493-13 compliant) |
| GPS Receiver | Built-in multi-GNSS receiver (GPS, GLONASS, SBAS support) |
| Display | High-contrast dot-matrix amber LCD with backlighting |
| Waterproof Rating | IPX7 (Submersible to 1 meter for 30 minutes) |
| Audio Output Power | 4.5 W typical (into 4 Ω external speaker load) |
| Power Supply Requirement | 13.8 V DC nominal (11.7 V – 15.9 V DC) |
| Current Consumption | Tx (25W): 5.0 A max; Rx (AF max): 1.2 A |
| Operating Temperature Range | -20°C to +60°C (-4°F to +140°F) |
| Dimensions (W × H × D) | 125.6 × 66.5 × 110.1 mm (4.9 × 2.6 × 4.3 in) |
| Weight | Approx. 730 g (1.61 lbs) |
| Compliance & Standards | IEC 60945 (Marine EMC & Environmental), CE, FCC, RoHS |
| Application | Commercial workboat bridges, auxiliary VHF communication, primary DSC alerting for compact vessels |
| Country of Origin | Japan |
