AMI Marine X2 VDR is a compact, IMO-compliant Voyage Data Recorder (VDR) and Simplified Voyage Data Recorder (S-VDR) system designed for commercial vessels. It continuously records and securely stores essential bridge navigation, communication, audio and vessel data for voyage monitoring, accident investigation, incident analysis and regulatory compliance.

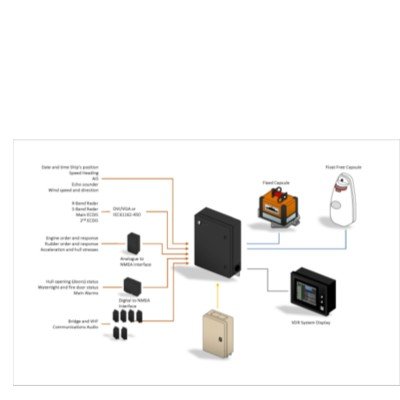

The system can record data from GPS, gyro compass, speed log, AIS, echo sounder, radar, ECDIS, VHF communications, bridge microphones, alarms and other navigation equipment. It incorporates a Main Electronic Unit, touchscreen display, fixed recording capsule and optional float-free capsule, together with PC-based replay software for detailed voyage-data analysis.
The X2 VDR is suitable for both new-build and retrofit installations and is designed to simplify integration with existing shipboard navigation and communication systems.
| Parameter | Technical Specification |
|---|---|
| Manufacturer | AMI Marine |
| Model | X2 VDR |
| Equipment Type | Voyage Data Recorder (VDR) / Simplified Voyage Data Recorder (S-VDR) |
| Application | Commercial vessels, new-build and retrofit installations |
| IMO Compliance | VDR: IMO MSC.333(90) / applicable current requirements; S-VDR: IMO MSC.163(78) as applicable |
| IEC Standard | IEC 61996-1 / IEC 61996-2 |
| Main Electronic Unit | MEU-0017 |
| Power Supply – MEU | 24 V DC |
| Audio Inputs | 10 channels – 8 Bridge Audio + 2 VHF Audio |
| NMEA Inputs | 20 NMEA Data Inputs |
| Video Inputs | 2 Video Inputs for ECDIS / Radar |
| Additional Video | Additional video input options available |
| Ethernet Interfaces | 2 × Ethernet interfaces for ship’s network / ECDIS |
| Long-Term Storage | 1 TB drive |
| Long-Term Recording | 30 days minimum; current X2 configuration provides 60+ days according to AMI |
| Backup Storage | Additional 1 TB backup drive option |
| Touchscreen Display | 8.4-inch colour touchscreen standard |
| Optional Display | 9.7-inch touchscreen |

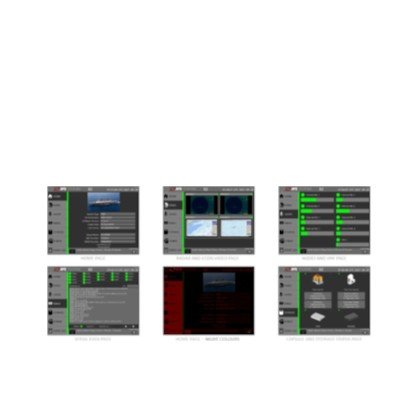

| Display Functions | Live sensor data, system status, alarms and recording status |
| Display Power | 24 V DC supplied from MEU |

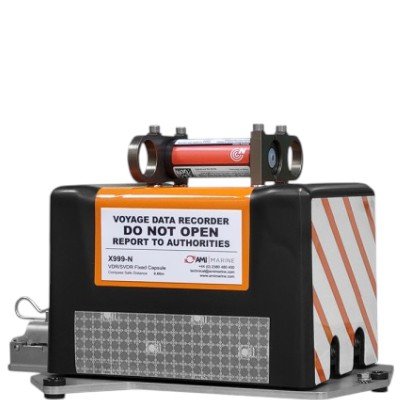

| Fixed Hardened Capsule | 64 GB solid-state storage |
| Fixed Capsule Recording | Minimum 48 hours |
| Fixed Capsule Beacon | PT9 acoustic underwater locator beacon |
| Float-Free Capsule | 80 GB solid-state storage |
| Float-Free Recording | Minimum 48 hours |
| External Microphone | IP67 waterproof, built-in self-test |
| Internal Microphone | Built-in self-test |
| UPS Input | 110–230 V AC, 50/60 Hz |
| UPS Output | 24 V DC |
| UPS | Battery-backed with AC and battery-health monitoring |
| VDR Replay | PC-based replay software |
| Replay Features | Audio Scan, AIS Mapping, Jump to Incident, time-stamped data |
| Data Download | USB / Ethernet data extraction |
| MEU Dimensions | 500 × 570 × 160 mm |
| MEU Weight | Approx. 19.5 kg* |
| Touchscreen Dimensions | 188 × 245 × 56 mm |
| Touchscreen Weight | Approx. 1.5 kg |
| External Microphone Dimensions | 124 × 52.2 × 26.5 mm |
| External Microphone Weight | Approx. 100 g |
| Fixed Capsule Dimensions | 218 × 180 × 347 mm |
| Fixed Capsule Weight | Approx. 13 kg |
| Float-Free Capsule Dimensions | 553 × 236 × 214 mm |
| Float-Free Capsule Weight | Approx. 5.3 kg |
| Origin Country | United Kingdom |
| Manufacturer Location | Southampton, England |
