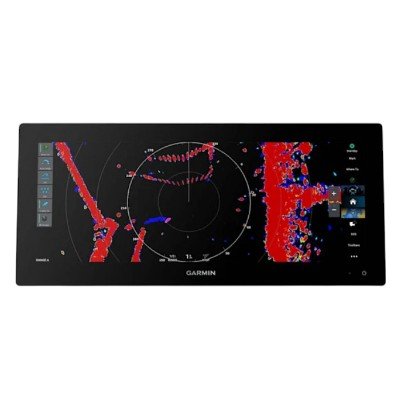

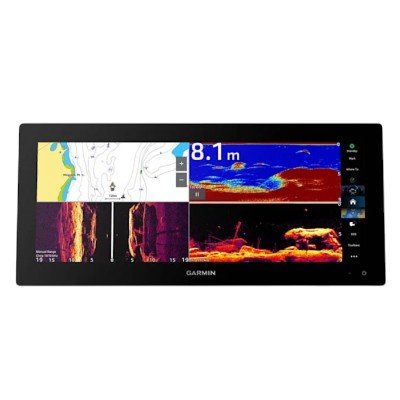

The Garmin GPSMAP® 1543xsv is the flagship 15-inch model of the x3 series, combining a massive high-definition display with premium preloaded cartography. It is designed for mariners who require maximum screen real estate for split-screen viewing of radar, sonar, and charts simultaneously.
Lightning-Fast Processing: The upgraded processor ensures fluid chart movement, rapid zoom response, and instantaneous data processing for high-speed navigation.
Full Network Hub: Acts as the central command for the Garmin Marine Network, allowing you to share sonar, radar, and thermal cameras across multiple networked displays.
Engine & System Control: With built-in J1939 and NMEA 2000® connectivity, you can monitor engine health (Yamaha, Mercury, etc.) and manage third-party systems like lighting or stabilization through OneHelm™.
SailAssist™ Suite: Dedicated sailing features provide laylines, race start guidance, and enhanced wind data to give competitive and cruising sailors a technical edge.
Dimensions: $15.3″ \times 7.0″ \times 3.3″$ ($388.9 \times 178.5 \times 82.9$ mm)
Weight: 7.2 lbs (3.26 kg)
Display Type: Ultrawide IPS (In-Plane Switching) Touchscreen
Display Size: $13.6″ \times 5.1″$; $14.5″$ diagonal ($36.8$ cm)
Resolution: $1920 \times 720$ pixels
Water Rating: IPX7

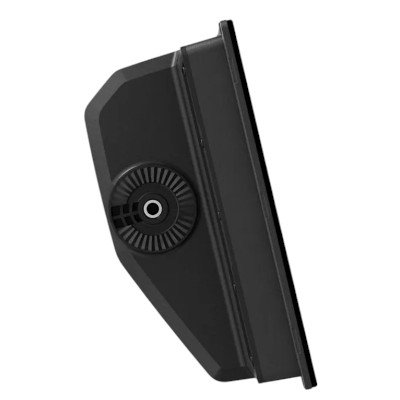

Mounting: Bail, flush, or flat (Flat mount requires custom professional installation)
Power Input: 10 to 32 Vdc
Max Power Usage (at 10 Vdc): 56.93 W
Typical Current Draw (at 12 Vdc): 2.44 A
Maximum Current Draw (at 12 Vdc): 4.21 A
Compass-Safe Distance: 25.5″ (65 cm)

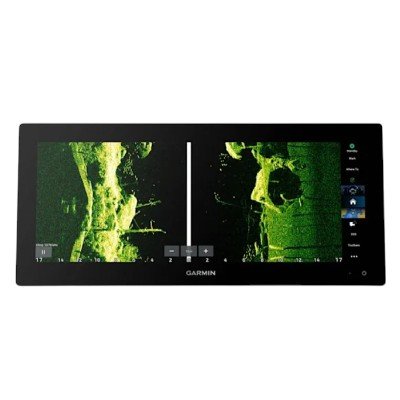

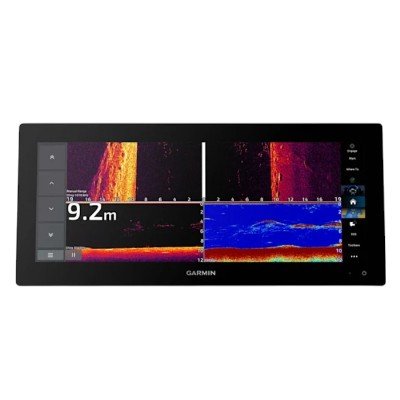

Integrated Sonar: 1 kW Traditional CHIRP, SideVü, and ClearVü
Frequencies Supported:
Traditional CHIRP: 50/77/83/200 kHz (L, M, H CHIRP)
ClearVü/SideVü: 260/455/800/1000/1200 kHz

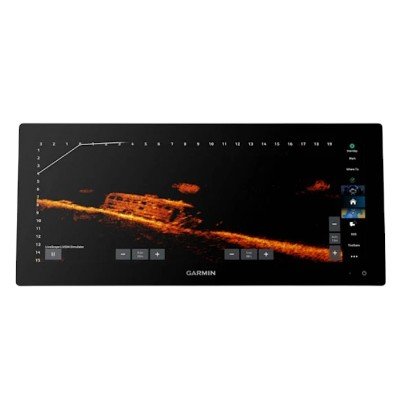

Live Sonar: Full support for Panoptix™ and LiveScope™ (transducer required)
Max Depth: 5,000 ft at 1 kW (Actual depth varies by water conditions and transducer)

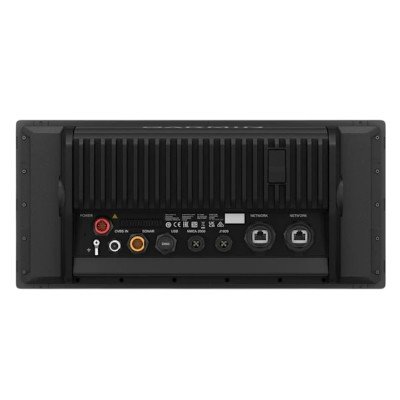

Garmin Marine Network™ Ports: 2
NMEA 2000® Port: 1
NMEA 0183 Ports: 1 Input (Rx), 1 Output (Tx)
J1939 Port: 1 (Engine/CAN bus)
Video Connections: 1 BNC Composite Input; 1 HDMI Input; 1 HDMI Output
USB Port: Support for Garmin USB Card Reader
Wireless: Built-in Wi-Fi, Bluetooth (BLE), and ANT+
Data Cards: 2 microSD™ slots (rear)
Preloaded Charts: Garmin Navionics+™ (Coastal and Inland coverage)
Receiver: 10 Hz high-sensitivity GPS/GLONASS/Galileo
Waypoints / Routes: 5,000 / 100
Track Log: 50,000 points; 50 saved tracks
Advanced Features: AIS/DSC support, OneHelm™ digital switching, and Garmin SailAssist™.
