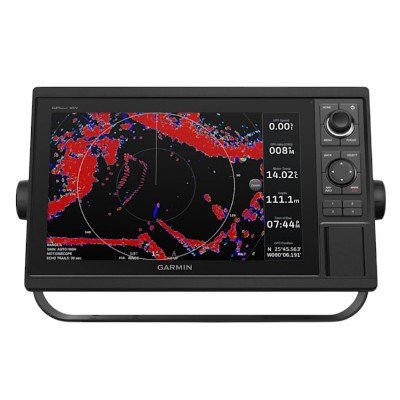

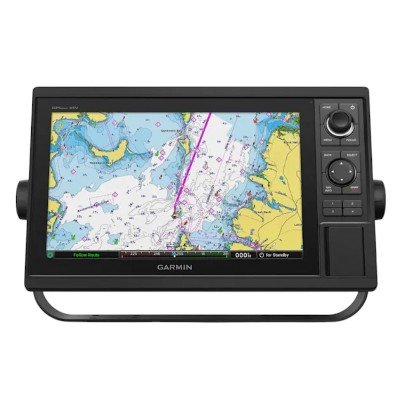

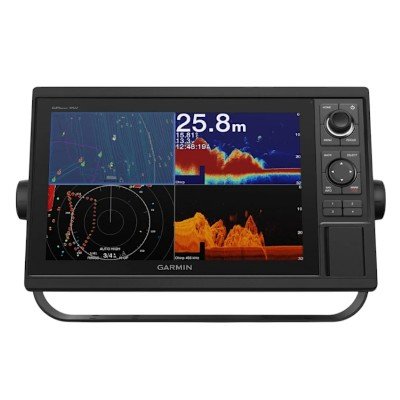

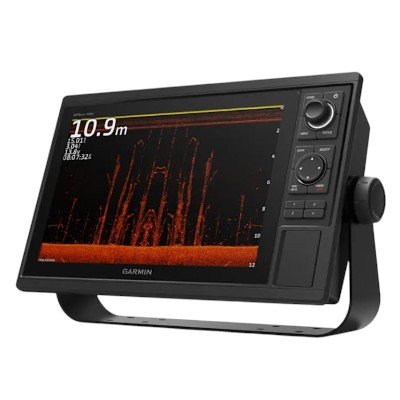

The Garmin GPSMAP® 1222xsv is a high-performance 12-inch keyed chartplotter and sonar combo designed for mariners who prefer the tactile feel of physical controls. It is built to operate in harsh environments where touchscreen operation might be difficult, offering a full keypad and a rotary control knob for precise navigation.
Full Network Support: Seamlessly integrates with NMEA 2000® and NMEA 0183 for autopilot, digital switching, weather, and engine data.
High-Speed Positioning: A built-in 10 Hz GPS and GLONASS receiver updates your position and heading 10 times per second for smooth, accurate movement on the screen.
Quickdraw Contours: Create your own personalized HD fishing maps with 1-foot contours in real-time as you fish, which can be kept private or shared with the Garmin Quickdraw™ Community.
Smart Connectivity: Built-in Wi-Fi® pairs with the ActiveCaptain® app for software updates, chart management, and smart notifications.
Dimensions: $14.1″ \times 8.9″ \times 2.7″$ ($35.8 \times 22.6 \times 6.9$ cm)
Weight: 5.2 lbs (2.34 kg)
Display Type: WXGA Display
Display Size: $10.3″ \times 6.4″$; $12.1″$ diagonal ($26.2 \times 16.3$ cm)
Resolution: $1280 \times 800$ pixels
Water Rating: IPX7
Control Interface: Physical keypad and multi-function rotary control knob
Power Input: 10 to 32 Vdc
Max Power Usage (at 10 Vdc): 34.8 W
Typical Current Draw (at 12 Vdc): 2.2 A
Maximum Current Draw (at 12 Vdc): 2.9 A
Compass-Safe Distance: 25.6″ (65 cm)
Transmit Power: 1 kW Traditional; 1 kW single-channel CHIRP
Built-in Sonar Support:
Traditional CHIRP: 50/77/83/200 kHz

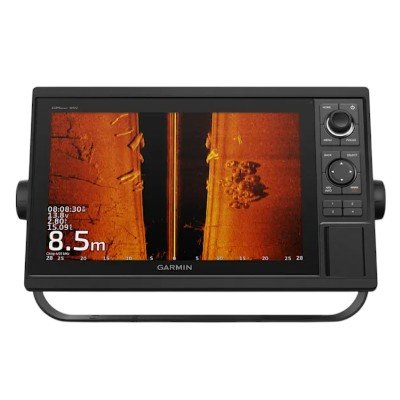

ClearVü/SideVü: 260/455/800 kHz
Live Sonar Support: Compatible with Panoptix™ and LiveScope™ systems.
Maximum Depth: 5,000 ft at 1 kW (Actual depth depends on water conditions and transducer type).

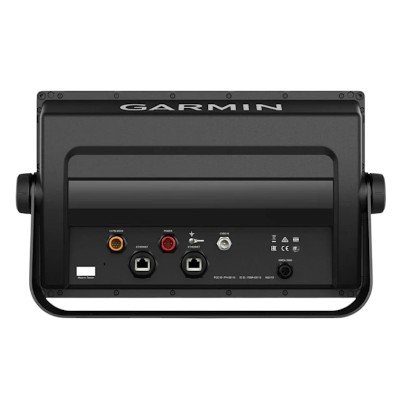

Transducer Port: 1 x 12-pin port.
Garmin Marine Network™ Ports: 2
NMEA 2000® Port: 1
NMEA 0183 Ports: 1 Input (Rx), 1 Output (Tx)
Video Connections: 1 BNC Composite Input
Wireless: Built-in Wi-Fi and ANT+ connectivity
Data Cards: 2 full-sized SD™ slots (located on the front face)
Preloaded Charts: Worldwide Basemap
Positioning: Internal 10 Hz high-sensitivity GPS/GLONASS/Galileo receiver
Waypoints / Routes: 5,000 / 100
Track Log: 50,000 points; 50 saved tracks
Additional Features: AIS/DSC support, Tide tables, Quickdraw Contours, and Fusion-Link™ compatibility.
