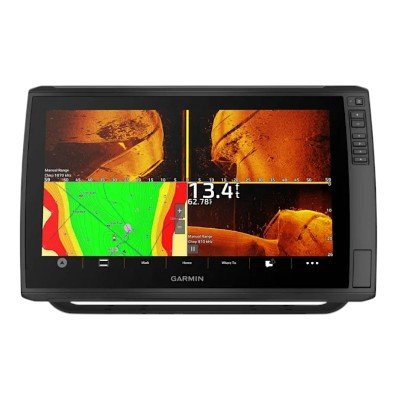

The Garmin ECHOMAP™ Ultra 2 166sv (010-02883-00) is the largest and most powerful chartplotter in the ECHOMAP lineup. This 16-inch unit combines a massive high-definition IPS touchscreen with professional-grade sonar processing. This version comes preloaded with Garmin Navionics+™ U.S. Inland and Coastal mapping and is sold without a transducer, serving as a premium command center for vessels requiring maximum screen real estate for split-screen views.
| Category | Specification |
| Physical Dimensions | 44.1 x 26.6 x 10.3 cm (17.4″ x 10.5″ x 4.1″) |
| Display Resolution | 1920 x 1080 pixels (Full HD) |
| Display Type | IPS (In-Plane Switching) Touch with Keyed Assist |
| Weight | 4.4 kg (9.7 lbs) |
| Power Input | 9 to 18 Vdc |
| Typical Current Draw | 3.5 A (@ 12 Vdc) |
| Max Power Usage | 62 W (@ 10 Vdc) |
| Water Rating | IPX7 |
| Storage | 2 microSD™ card slots (32 GB max) |
Sonar Support: Built-in support for CHIRP traditional, and Ultra High-Definition ClearVü and SideVü scanning sonars (transducer sold separately).
Dedicated LVS Port: Includes a specific port for direct connection to LiveScope™ sonar modules.
NMEA 2000®: Full support for engine data gateways, AIS, VHF, and Fusion-Link™ audio systems.

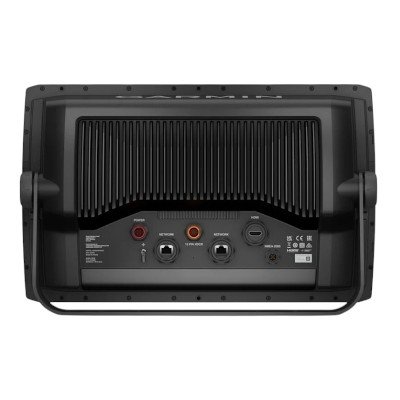

Marine Network Ports: 2 Large-connector ports for high-speed data sharing between compatible Garmin units.
Trolling Motor Control: Full wireless integration with Force® trolling motors to follow tracks, lock onto waypoints, or maintain heading.
ECHOMAP Ultra 2 166sv with Garmin Navionics+™
Power/data cable
Bail mount with quick-release cradle
Protective sun cover
8-pin transducer to 12-pin sounder adapter cable
Mounting hardware and documentation
