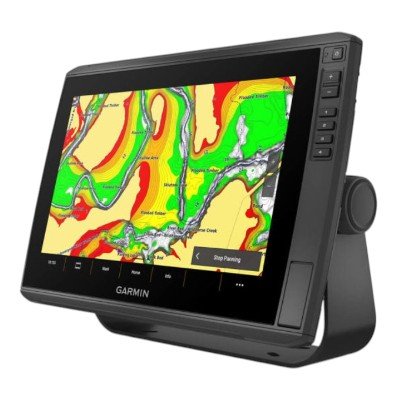

The Garmin ECHOMAP™ Ultra 2 126sv is a premium 12-inch hybrid-touch chartplotter designed for anglers and captains who require high-resolution imaging and professional-grade navigation. This version is distinguished by its preloaded Garmin Navionics+™ coastal and inland mapping and its multi-band GPS capabilities.
As a “head-unit only” package, it serves as the central hub for advanced marine electronics, allowing for custom transducer selection or seamless integration with LiveScope™ sonar systems.

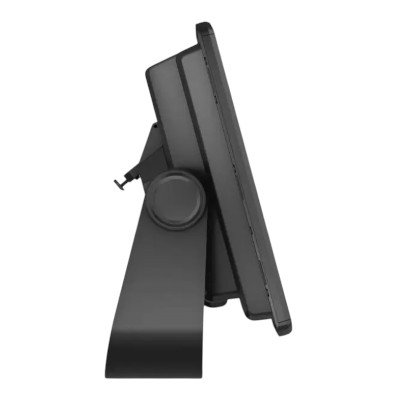

The unit is housed in a rugged, IPX7-rated casing and utilizes a quick-release bail mount. This allows the operator to disconnect the power and data cables instantly and remove the head unit for security when the vessel is at the dock or on a trailer.
LiveScope™ Station: The dedicated sonar processing makes it the ideal display for forward-facing sonar (LVS34).
Navigation Master: Perfect for users who prioritize large-format charting and high-accuracy GPS positioning.

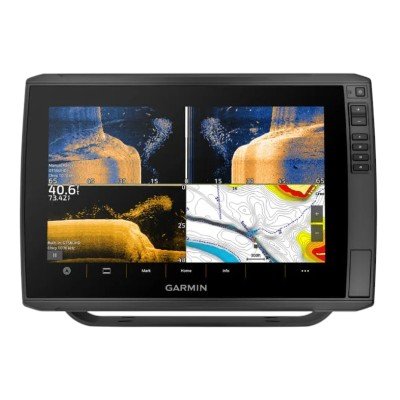

Multi-Display Setup: Use as a secondary display to view full-screen SideVü or ClearVü imaging while a primary unit handles the main chart.
| Category | Specification |
| Dimensions | 34.1 x 22.9 x 9.8 cm (13.4″ x 9.0″ x 3.9″) |
| Weight | 2.5 kg (5.5 lbs) |
| Display Resolution | 1280 x 800 pixels |
| Power Input | 9 to 18 Vdc |
| Typical Current Draw | 2.5 A (at 12 Vdc) |
| Max Current Draw | 5.0 A (at 12 Vdc) |
| Max Power Usage | 36 W (at 10 Vdc) |
| Receiver | 10 Hz Multi-band (GPS, GLONASS, Galileo, BeiDou) |
| Storage | 2 microSD™ card slots (32 GB max) |
| Water Rating | IPX7 |

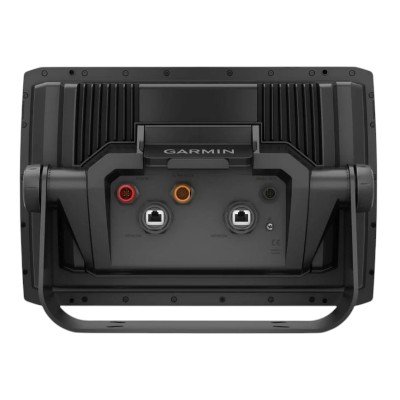

Garmin Marine Network Ports: 2 (Large connectors)
NMEA 2000® Port: 1 (Supports AIS, DSC, Fusion-Link™, and Engine data)
NMEA 0183: Input and Output supported via the power cable
Transducer Port: 1 x 12-pin (Orange connector) for scanning sonar
Built-in Sonar Support: * Traditional CHIRP (70/83/200 kHz)
UHD ClearVü & SideVü (260/455/800/1000/1200 kHz)
Trolling Motor Integration: Wireless connectivity to Garmin Force® trolling motors for waypoint navigation and route following.
ECHOMAP Ultra 2 126sv with Garmin Navionics+™
Power/data cable
Bail mount with quick-release cradle
Protective sun cover
8-pin transducer to 12-pin sounder adapter cable
Hardware and documentation
