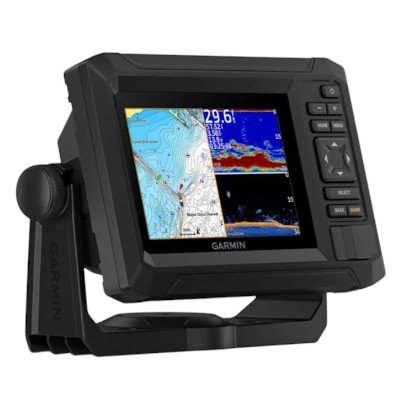

The Garmin ECHOMAP™ UHD2 54cv is a compact, high-performance 5-inch chartplotter designed for anglers who need professional-grade sonar and mapping in a space-saving design. This bundle includes the GT20-TM transducer, providing clear traditional sonar and high-definition scanning right out of the box.

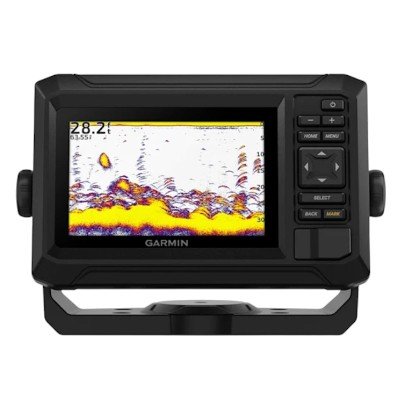

High-Contrast 5″ Display: Features a bright, sunlight-readable display with a bonded glass interface for improved clarity and durability. It is operated via a reliable keyed interface, making it easy to use in all weather conditions.
Garmin Navionics+™ Mapping: Comes preloaded with detailed coastal and Great Lakes mapping. This includes 1-foot contours, depth range shading, and Auto Guidance+™ technology to suggest the best paths through shallow water and obstacles.
UHD Scanning Sonar: With the included GT20-TM transducer, you get Garmin CHIRP traditional sonar for remarkable target separation and ClearVü™ scanning sonar for nearly photographic images of what’s below your boat.
Built-in Wi-Fi®: Wirelessly share sonar, waypoints, and routes with another ECHOMAP UHD2 5″ or 7″ display. You can also pair with the ActiveCaptain® app for software updates and community data.
Dimensions: $7.4″ \times 4.8″ \times 2.4″$ ($18.8 \times 12.2 \times 6.2$ cm)
Weight: 1.1 lbs (0.5 kg)
Display Type: WVGA, IPS
Display Size: $4.3″ \times 2.6″$; $5.0″$ diagonal
Resolution: $800 \times 480$ pixels
Water Rating: IPX7
Control Interface: Physical buttons (Keyed)
Power Input: 9 to 18 Vdc
Typical Current Draw (12 Vdc): 1.0 A
Maximum Current Draw (12 Vdc): 1.5 A
Max Power Usage (10 Vdc): 18 W
Compass-Safe Distance: 11.8″ (30 cm)
Included Transducer: GT20-TM (4-pin)
Frequencies Supported:
Traditional CHIRP: 77/200 kHz
ClearVü: 455/800 kHz
Transmit Power: * Traditional: 500 W (RMS)
ClearVü: 500 W (RMS)
Maximum Depth: * Traditional: 1,900 ft (Freshwater); 700 ft (Saltwater)
ClearVü: 750 ft
Sonar Features: Bottom lock, water temperature log, and graph.
Wireless: Built-in Wi-Fi (Used for sharing sonar and user data between two UHD2 units)
NMEA 0183 Ports: 1
Transducer Port: 1 (4-pin)
Data Cards: 1 microSD™ slot (32 GB max size)
App Compatibility: ActiveCaptain® for software updates and Quickdraw Community.
Preloaded Mapping: Garmin Navionics+ (U.S. Coastal and Great Lakes)
Receiver: 5 Hz high-sensitivity internal GPS
Waypoints / Routes: 5,000 / 100
Track Log: 50,000 points; 50 saved tracks
Standard Features: AIS/DSC support, Tide tables, and Auto Guidance+™ technology.
