Technical Specification

📡 General

• Type: Adaptive marine autopilot (small/medium vessels)
• Control principle: Self-learning adaptive steering
• Steering modes:
  • STBY (standby)
  • AUTO
  • Advanced AUTO
  • NAV (track control)
  • Dodge
  • NFU (Non-follow-up)
  • Turn mode
  • FishHunter™ modes

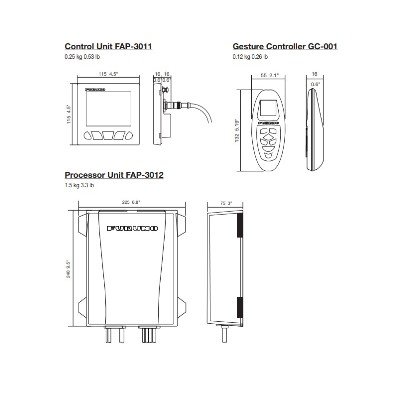

🖥️ Control Unit (FAP-3011)

• Display size: 4.1-inch color LCD
• Resolution: 320 × 240 (QVGA)
• Effective display area: 85.2 × 85.2 mm
• Brightness: ~700 cd/m²

⚙️ Processor Unit (FAP-3012)

Steering control features

• Adaptive auto-tuning (self-learning)
• Sea condition adjustment:
  • Calm / Moderate / Rough (Auto or Manual)

Alarm functions

• Heading deviation alarm
• Watch alarm

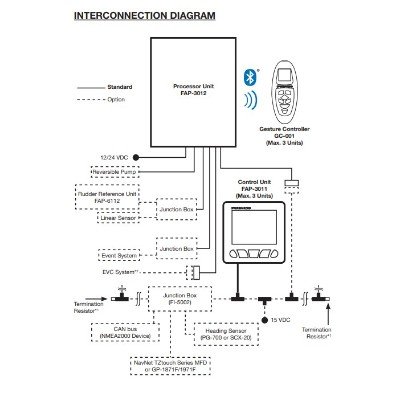

🔗 Interfaces & Communication

• NMEA 2000: 1 port
• CAN bus (DBW control): 1 port
• Control signal ports: 3
• Wireless: Bluetooth (gesture controller)

Data support (examples)

• Heading, speed, navigation data
• GPS / GNSS input
• Engine & vessel data (via NMEA 2000)

⚡ Electrical

• Processor unit power:
  • 12–24 V DC
  • ~0.22 A max
• Control unit power:
  • 15 V DC
  • ~0.29 A max
• Gesture controller:
  • 3 V DC (2 × AAA batteries)

🌊 Waterproof & Environmental

• Processor unit: IP55
• Control unit: IP56
• Gesture controller: IP65 / IP67
