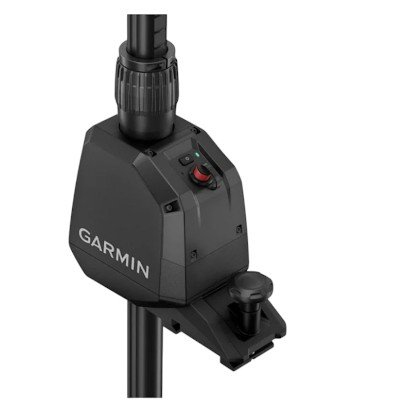

The Garmin Spy Pole™ 49″ is a motorized, high-clearance transducer steering system designed for professional anglers and offshore vessels. This 49-inch version provides the extra shaft length necessary for boats with high bow rails or deep drafts, ensuring your live sonar transducer stays consistently submerged even in heavy chop. It allows you to rotate and aim your sonar independently of the trolling motor’s direction.
Extended 49″ Shaft: Ideal for larger center consoles or boats that require a longer reach to the waterline.
Independent Operation: Since it is not physically attached to the trolling motor’s shaft, you can point your sonar in one direction while your motor pulls the boat in another.
OneVü™ Ready: When paired with the GT360UHD transducer, it unlocks a 360-degree high-definition perspective in both 2D and 3D.
Wireless Control: Includes multiple control options, including a wireless foot pedal and a gesture-based remote.
| Feature | Details |
| Shaft Length | 49 inches (Optimized for 57″ Force/Force Pro trolling motors) |
| Weight | 9.35 lbs (4.24 kg) including motor, mount, and cables |

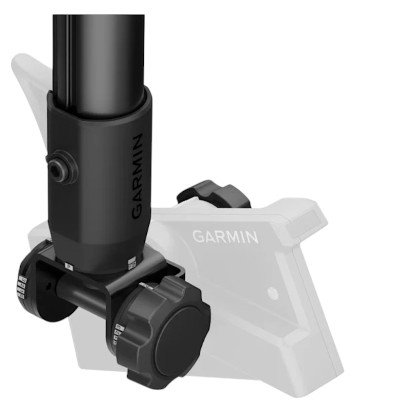

| Mount Style | Quick-release, Reversible |
| Water Rating | IPX7 (Components above the waterline) |
| Materials | Designed for freshwater, brackish, and saltwater use |
| Voltage Range | 10 V to 45 Vdc |
| Power Consumption | 18 W (Typical); 70 W (Maximum) |
| Fuse | 8 A |
Target Locking (SpyLock™): Maintains the LiveScope sonar focus on a specific waypoint or underwater structure regardless of boat movement.
Automatic Scanning (SpyScan™): Sweeps the pole back and forth automatically to search for fish and structure.
Motor Synchronization (SpyLink™): Coordinates the pole’s direction with the Garmin Force® Pro trolling motor.
Cable Management: Features internal routing to protect transducer cables through the pole shaft.
Wireless Networking: Connects wirelessly to compatible Garmin chartplotters and Force trolling motors.
Maximum Connections: Supports up to 5 gesture remotes, 1 foot control, 1 heading sensor, 1 trolling motor, and 1 chartplotter network.
Included Accessories:

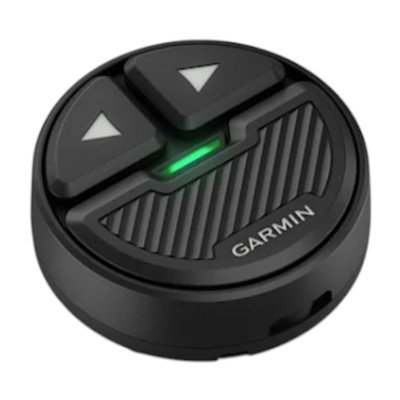

Gesture Remote: Rod-mountable with point-and-steer capabilities (IPX7 rated).

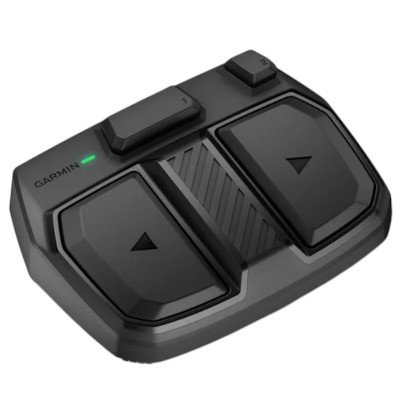

Foot Control: Low-profile wireless pedal for hands-free operation.
Wireless Heading Sensor: Ensures accurate sonar orientation and True Motion technology support.
LiveScope: Supports LVS32, LVS34, and LVS62 (maximum of one with internal routing).
360 Sonar: Compatible with the GT360UHD transducer for OneVü™ scanning (2D and 3D views).
