Technical Specification

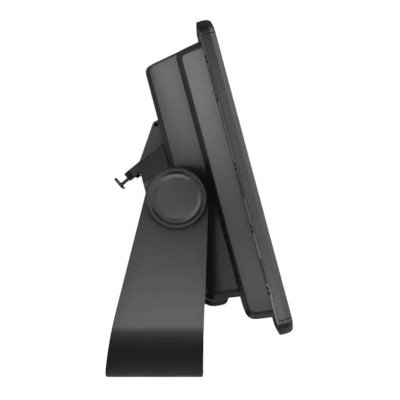

Physical & Environmental

• Dimensions: 34.1 x 22.9 x 9.8 cm ($13.4″ \times 9.0″ \times 3.9″$)

• Weight: 2.5 kg (5.5 lbs)

• Water Rating: IPX7 (Withstands incidental exposure to water up to 1 meter for 30 minutes)

• Temperature Range: $-15°\text{C}$ to $55°\text{C}$ ($5°\text{F}$ to $131°\text{F}$)

• Compass-Safe Distance: 65 cm ($25.6″$)

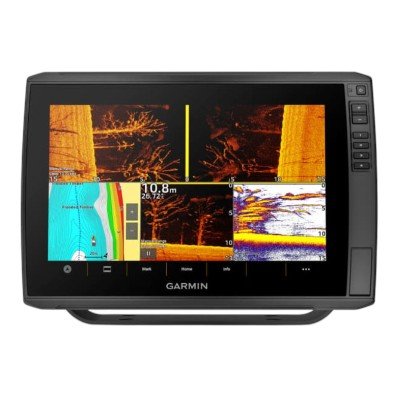

Display Features

• Type: WXGA, IPS (In-Plane Switching) for wide viewing angles

• Size: 26.1 x 16.3 cm; 30.7 cm diagonal ($10.3″ \times 6.4″$; $12.1″$ diagonal)

• Resolution: $1280 \times 800$ pixels

• Input: Multi-touchscreen with Keyed Assist (dedicated buttons)

Electrical Specifications

• Power Input: 9 to 18 Vdc

• Typical Current Draw (@ 12 Vdc): 3.0 A

• Max Current Draw (@ 12 Vdc): 3.3 A

• Max Power Usage (@ 10 Vdc): 34 W

• Fuse Rating: 8 A

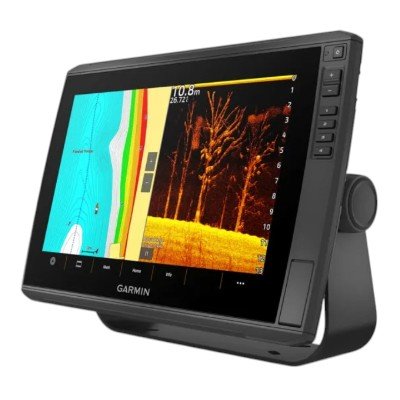

Sonar & Transducer Support

• Transmit Power: 600 W (RMS)

• Traditional Sonar: Built-in CHIRP (Single Channel: 70/83/200 kHz, L, M, H CHIRP)

• ClearVü/SideVü: Built-in 260/455/800/1000/1200 kHz

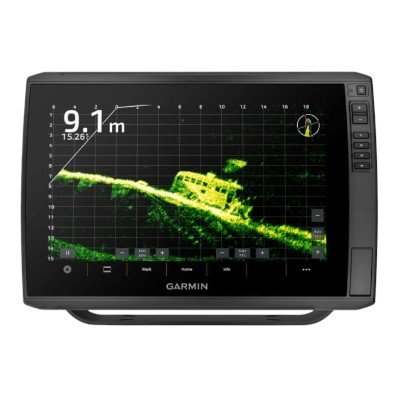

• LiveScope™ Support: Full compatibility with the LiveScope lineup (requires separate sonar module/transducer)

Connectivity & Networking

• Garmin Marine Network Ports: 2 (Large connectors); used for connecting Panoptix™, GCV™ modules, or other ECHOMAP units.

  Note: These ports are not compatible with BlueNet™ or legacy GPSMAP®/Radar devices.

• NMEA 2000®: 1 Port (Support for engine data, AIS, VHF, and Fusion-Link™)

• NMEA 0183: Input/Output ports supported via power cable

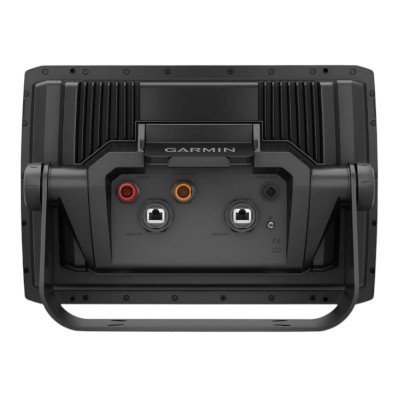

• Transducer Port: 1 x 12-pin (Orange connector)

• Wireless: Built-in Wi-Fi for ActiveCaptain® app and wireless data sharing between Ultra 2/UHD2 units.

Sensors & Navigation

• GPS Receiver: 10 Hz high-sensitivity multi-band (L1 and L5)

• Constellations: GPS, GLONASS, Galileo, BeiDou

• Memory: 2 microSD™ card slots (32 GB max size)

• Capacity: 5,000 Waypoints, 100 Routes, 50,000 Track points (50 saved tracks)
