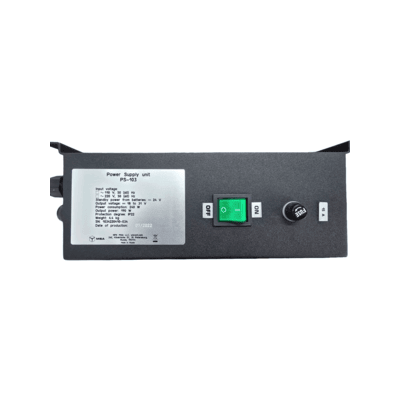

The Unicont PS-103 Marine Power Supply Unit is an industrial-grade, marine-certified power supply designed to deliver unregulated, robust 24V DC power to vital shipboard communication, automation, and navigation hardware. It features high galvanic isolation and integrated automatic failover switching to a backup battery bank in the event of an AC mains failure.
Depending on the exact variant (such as the base PS-103, the 7A modification, or the higher-capacity 20A version), the physical footprints, current capacities, and terminal loads vary slightly.
| Weight | 6 kg |
|---|---|
| Dimensions | 34 × 22 × 16 cm |

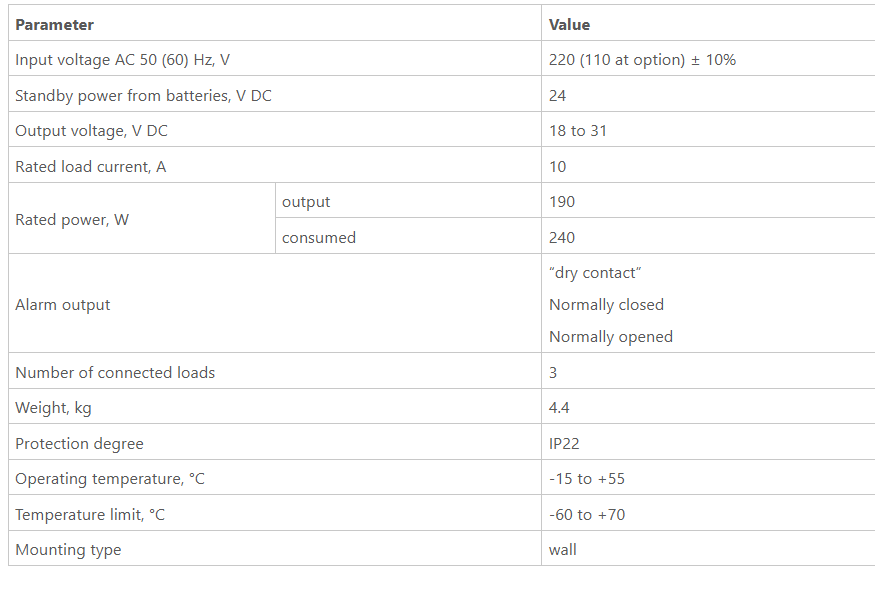

| Feature | Base Model: PS-103 | Variant: PS-103-7A | Heavy Duty: PS-103-20A |
| Input Voltage | 220V AC (110V optional) ±10%, 50/60 Hz | 110/220V AC, 50/60 Hz | 110/220V AC, 50/60 Hz |
| Backup Input | 24V DC Battery Standby | 24V DC Battery Standby | 24V DC Battery Standby |
| Output Voltage | 18 to 31V DC (Unregulated) | 24V DC | 24V DC (Unregulated) |
| Rated Load Current | 10 A | 7 A | 20 A (25A Max) |
| Power Output / Consumed | 190 W / 240 W | 168 W / 210 W | 500 W / 600 W |
| Load Channels | 3 x Independent Outlets | 3 x Independent Outlets | 4 x Independent Outlets |
| Alarm Output | Dry Contact (NO / NC) | Dry Contact (NO / NC) | Dry Contact (NO / NC) |
| Enclosure Protection | IP22 | IP22 | IP22 |
| Operating Temp | -15°C to +55°C | -15°C to +55°C | -20°C to +55°C |
| Weight | 4.4 kg | 5.0 kg | 12.0 kg |
| Mounting Type | Wall Mount | Wall Mount | Wall / Surface Mount |
