Technical Specification

🚢 GENERAL

• Type: Class A AIS Transceiver (SOLAS / Inland certified)
• Function: Transmit + Receive AIS data
• Application: Commercial vessels, passenger ships, offshore craft
• AIS Standard: IEC 61993-2 compliant

📡 AIS / RADIO

• AIS Class: Class A (high priority vessel tracking)
• Operation: Continuous automatic position reporting
• Message support: Full AIS message set (position, safety, text, etc.)
• Integration: Advanced AIS target management + collision awareness

🖥️ DISPLAY SYSTEM

• Display: Integrated high-definition color screen
• Function: Electronic Chart + AIS overlay
• Features:
  • Real-time vessel tracking
  • CPA/TCPA collision warnings
  • MOB (Man Overboard) display tools
  • Multi-target management

🛰️ GPS / NAVIGATION

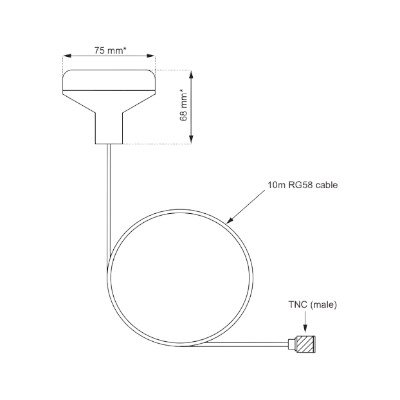

• GPS: Built-in GNSS receiver (multi-satellite support)
• Chart system: C-MAP MAX compatible (microSD charts)
• Navigation integration: Full bridge system compatibility

🔌 CONNECTIVITY

• NMEA 2000: Yes (network integration)
• NMEA 0183: Supported (data communication)
• External devices:
  • Radar integration
  • Autopilot integration
  • Sensors & bridge systems

⚡ ELECTRICAL

• Power supply: 12–24V DC system (marine standard)
• Design: Continuous 24/7 operation capable
• Power efficiency: Commercial-grade consumption control

🌊 ENVIRONMENTAL

• Waterproof rating: IPX7 (submersible protection)
• Build: Shock and vibration resistant housing
• Duty cycle: Designed for harsh marine/commercial use

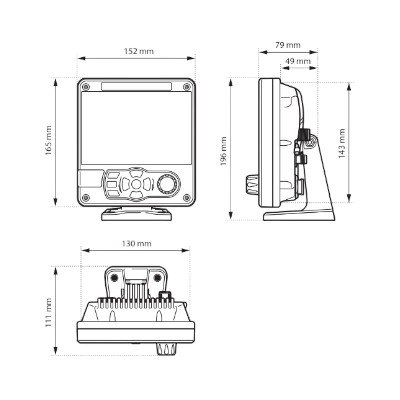

📐 PHYSICAL

• Design: Integrated bridge console unit
• Form factor: Large display + embedded AIS system
• Mounting: Flush or pedestal installation
