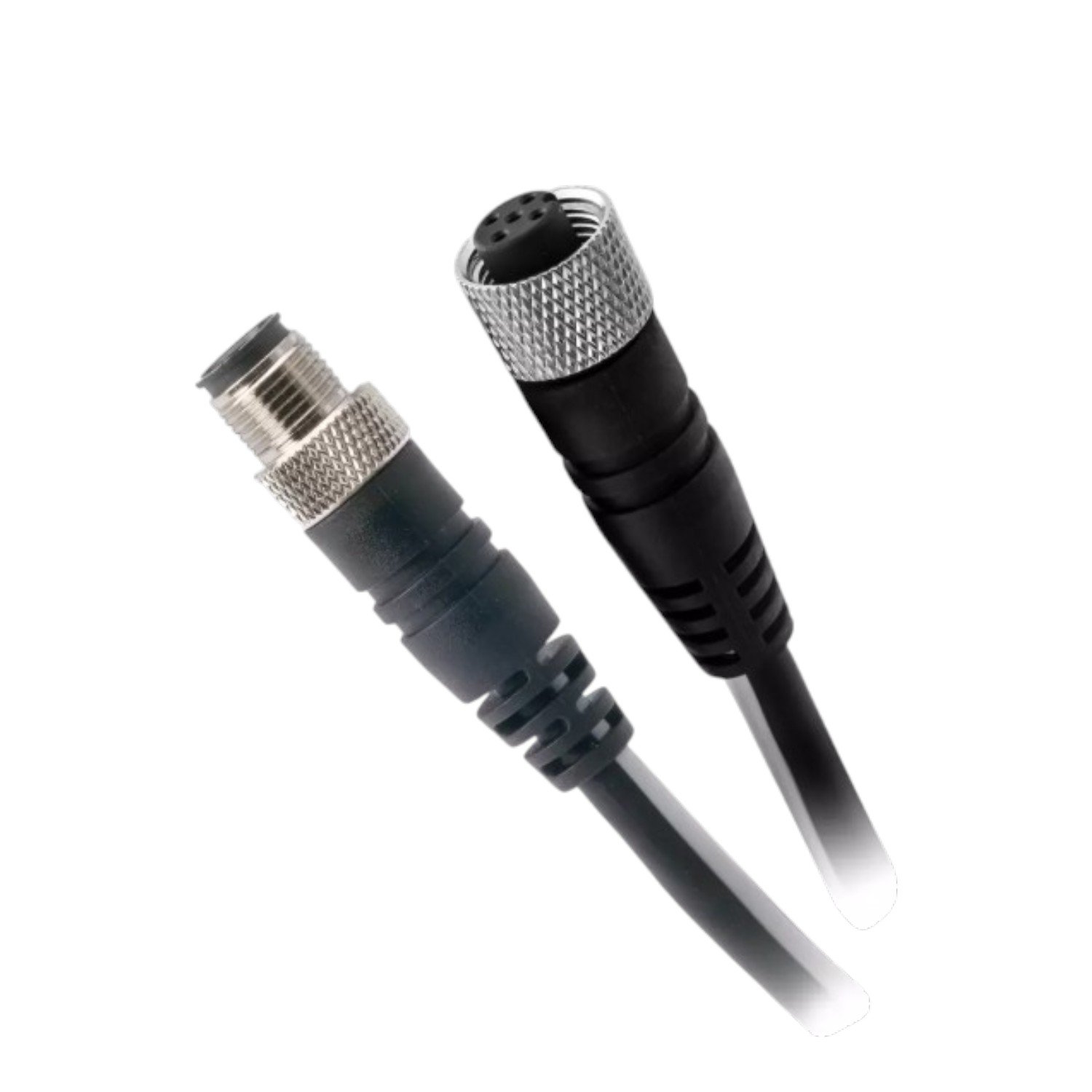

Raymarine NMEA 2000 DeviceNet Male to DeviceNet Female Cable (2m) (E70260) is a standard marine extension cable designed to bridge NMEA 2000 Micro-C / DeviceNet networking components. Featuring a 5-pin DeviceNet Male connector on one end and a 5-pin DeviceNet Female connector on the other, this 2-meter cable allows for straightforward drop/spur extensions or backbone connections between standard NMEA 2000 instruments, sensors, drop tees, and multifunction displays across the vessel’s data bus.
| Specification | Details |
| Part Number (SKU) | E70260 |
| Cable Length | 2 m (6.6 ft) |
| Connector Type (End 1) | 5-Pin NMEA 2000 Micro-C / DeviceNet Male |
| Connector Type (End 2) | 5-Pin NMEA 2000 Micro-C / DeviceNet Female |
| Network Protocol Compatibility | NMEA 2000 / DeviceNet / SeaTalkNG (via adapter) |
| Operating Voltage Range | 9.0V DC to 16.0V DC |
| Current Carrying Capacity | 4A max network backbone / spur current |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
| Storage Temperature | -30°C to +70°C (-22°F to +158°F) |
| Waterproof Rating | IPX6 / IPX7 (when coupled) |
| Weight | Approx. 0.12 kg (0.26 lbs) |
| Country of Origin | United Kingdom (UK) |
