The Koden MDC-7025P is a 25 kW X-Band black-box marine radar designed for professional and commercial vessel navigation. It is an IMO-compliant radar with a maximum radar range of 96 NM and is available with 4 ft, 6 ft, or 9 ft open-array antennas. The system provides high-speed sampling for short-range targets, automatic gain and sea-clutter control, and simple operation through a remote trackball.

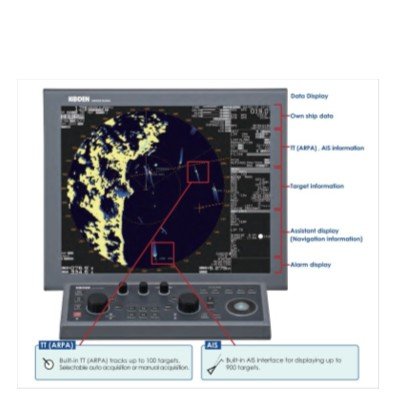

The radar includes TT/ARPA as standard, capable of tracking up to 100 targets, and an integrated AIS interface capable of displaying up to 900 AIS targets.
| Parameter | Specification |
|---|---|
| Manufacturer | Koden Electronics Co., Ltd. |
| Model | MDC-7025P |
| Equipment Type | Black-Box Marine Radar |
| Radar Band | X-Band |
| Radar Frequency | 9.410 GHz |
| Transmitter Output | 25 kW |
| Maximum Range | 96 NM |
| Minimum Range Scale | 0.125 NM |
| Range Scales | 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 32, 48, 64 and 96 NM |
| Antenna | Open-array |
| Antenna Options | 4 ft / 6 ft / 9 ft |
| TT / ARPA | Built-in, standard |
| Radar Target Tracking | Up to 100 targets |
| AIS Interface | Built-in, standard |
| AIS Targets | Up to 900 targets |
| Clutter Control | Automatic STC / automatic gain |
| Short-Range Detection | High-speed sampling |
| Operation | Remote trackball / USB |

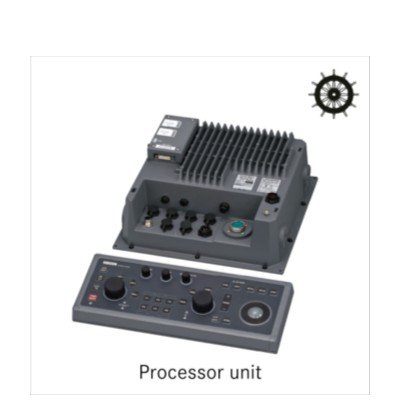

| Processor Unit Dimensions | 320 × 320 × 133 mm |
| Operation Unit Dimensions | 141 × 385 × 57 mm |
| Power Supply | 21.6–41.6 VDC |
| Processor Unit Weight | Approx. 13 kg |
| Operation Unit Weight | Approx. 1.8 kg |
| Radar Configuration | Black-box |
| Approval | IMO / SOLAS radar requirements |
| Origin Country | Japan |
