JRC JSS-2150 150W Class A MF/HF Radio Equipment (GMDSS)

The JRC JSS-2150 is a high-reliability 150W Class A MF/HF radio communication system engineered by Japan Radio Co., Ltd. for commercial vessels operating in GMDSS sea areas. Featuring an advanced modular design with a compact transceiver and antenna tuner, it allows flexible installation on vessel bridges with limited space while delivering uninterrupted long-range voice and digital selective calling (DSC) performance.

Equipped with an integrated 6-channel DSC watch-keeping receiver, the JSS-2150 continuously scans distress frequencies to ensure immediate emergency alert capability. Its user-friendly controller features a bright 3.8-inch high-visibility backlit display, customizable screen settings, and tactile push-button control for effortless operation under all maritime lighting conditions.

Key Features:
• Full GMDSS Compliance: Meets IMO standards for Class A MF/HF DSC radio installations across SOLAS and non-SOLAS commercial vessels.
• Integrated 6-Channel DSC: Continuous watch-keeping receiver monitors all six GMDSS distress and safety frequencies simultaneously.

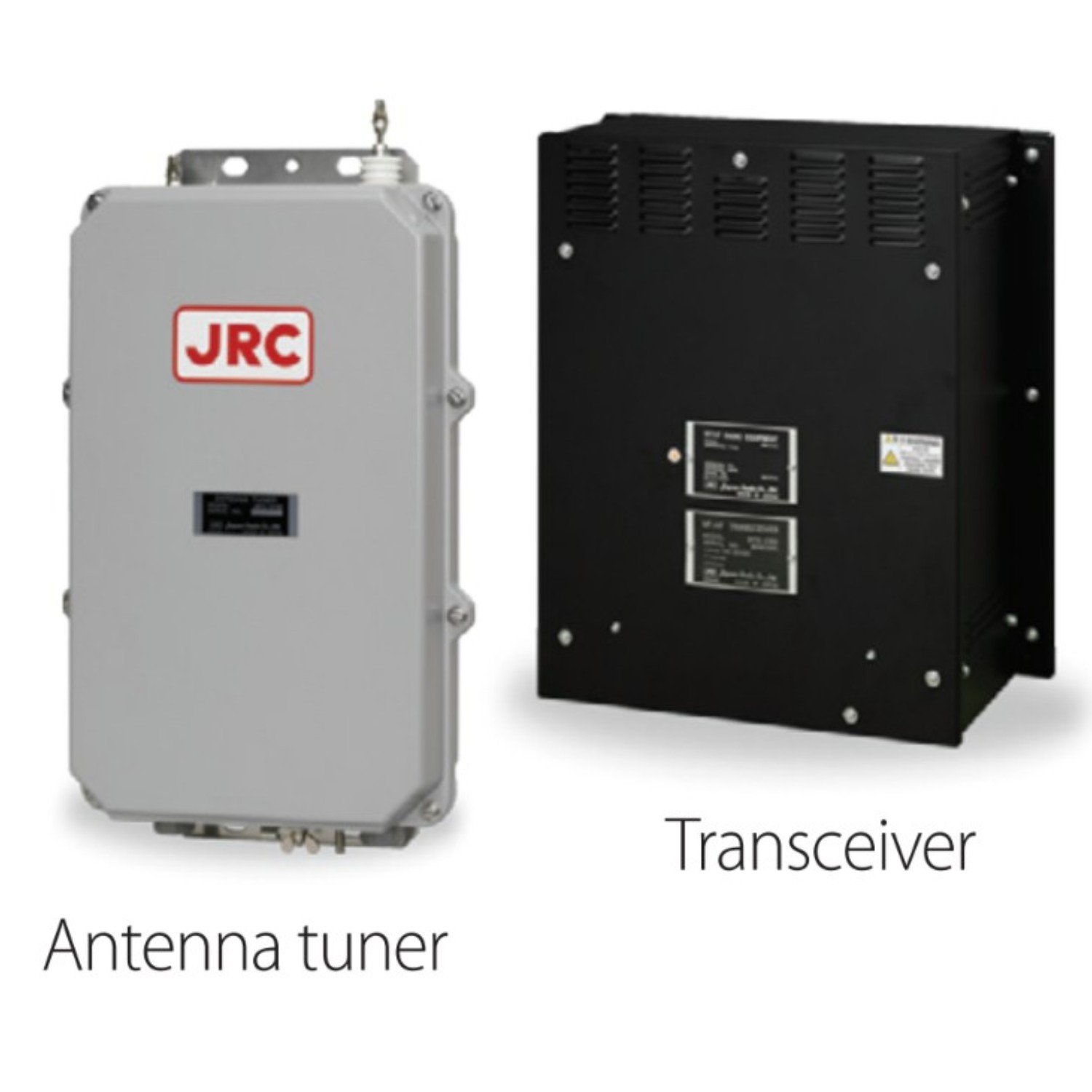

• Compact Modular Design: Small-footprint transceiver and antenna tuner enable versatile installation in tight console spaces.

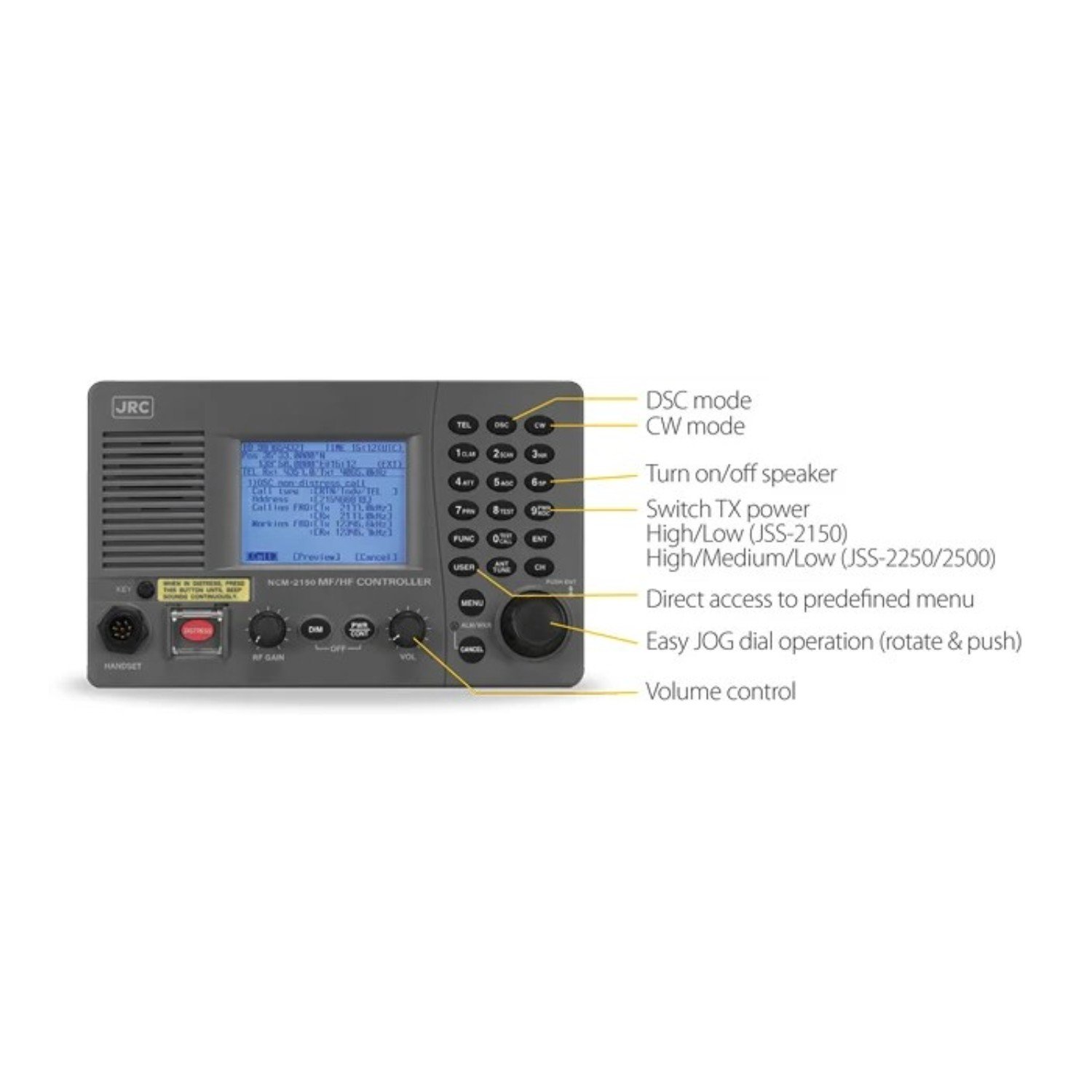

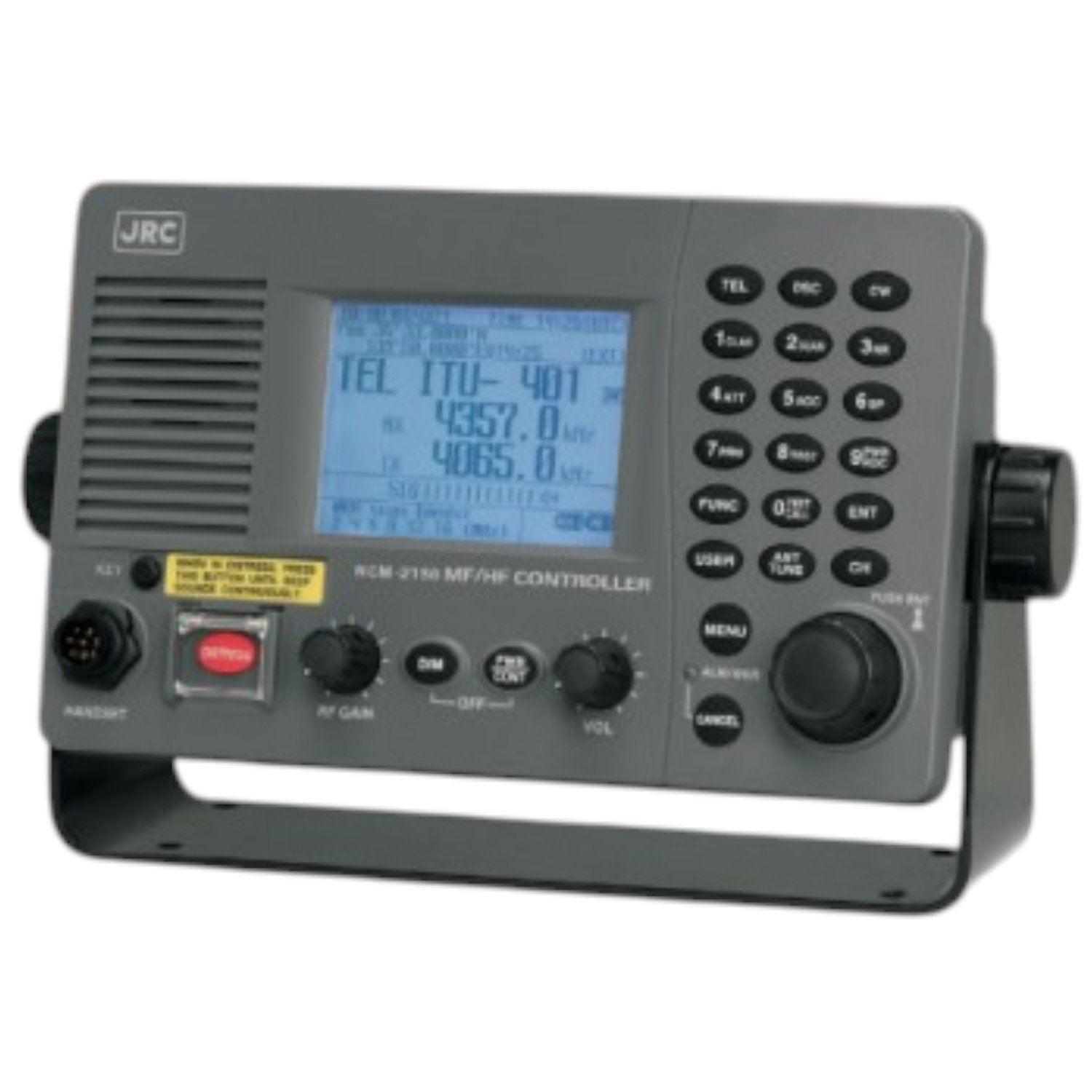

• Clear 3.8-Inch LCD Display: Features 10 dimming levels, 11 contrast settings, and custom user keys for quick menu access.
• One-Touch Distress Activation: Spring-loaded emergency distress button prevents accidental activation while enabling instant alert transmission.
• Dual Controller Support: Connect an optional secondary operation station to control the system from multiple bridge locations.

Technical Specification

Attribute Specification Details
Manufacturer JRC (Japan Radio Co., Ltd.)
Model / System JSS-2150
Item Type Marine MF/HF DSC Class A Transceiver System (GMDSS)
Output Power 150W PEP (4–27.5 MHz) / 100W PEP (1.6–4 MHz)
Frequency Range RX: 90.0 kHz – 29.9999 MHz / TX: 1605.0 kHz – 27.5000 MHz
DSC Receiver Built-in 6-Channel DSC Watch-Keeping Receiver
Display Type 3.8-inch LED Backlit LCD (320 x 240 pixels)
Communication Modes J3E, F1B, A1A, H2B, J2D, H3E (receiving only)
Operating Power 21.6V to 31.2V DC (Optional AC power supply available)
Interfaces IEC 61162-1 (NMEA 0183 / GPS / RMS)
Application Commercial vessel long-range communication, SOLAS GMDSS radio station
Mounting Type Flush console mount or tabletop bracket mount
Country of Origin Japan

There are no reviews yet.

Be the first to review “JRC JSS-2150 150W Class A MF/HF Radio Equipment (GMDSS)”

Your email address will not be published. Required fields are marked *

Download

JSS-2150-2250-2500
