The JRC JMR-5400 Series is a high-performance marine radar designed for commercial ships, workboats, offshore vessels and other professional maritime applications. It uses JRC’s advanced signal-processing technology to improve short-range target detection, target discrimination and clutter suppression, while maintaining long-range detection performance. The series is available with both X-band and S-band scanners, including solid-state S-band configurations. JRC states that the series meets the latest IMO radar standards and has MED certification (Category 2) for applicable configurations.
| Parameter | Specification |
|---|---|
| Manufacturer | Japan Radio Co., Ltd. (JRC) |
| Series | JMR-5400 |
| Equipment Type | IMO-compliant marine radar |
| Radar Bands | X-Band / S-Band |
| X-Band Output | 10 kW / 25 kW |
| S-Band Output | 250 W solid-state / 30 kW configuration |
| X-Band Frequency | 9410 MHz ± 30 MHz |
| S-Band Frequency | 3050 MHz ± 20 MHz |
| Maximum Range Scale | 96 NM |
| Minimum Range Scale | 0.125 NM |
| X-Band Antennas | 4 ft, 6 ft, 7 ft, 9 ft |
| S-Band Antennas | 8 ft / 12 ft solid-state; other configurations available |
| Display Options | 19-inch / 26-inch colour LCD |
| 19-inch Resolution | 1280 × 1024 (SXGA) |
| 26-inch Resolution | 1920 × 1200 (WUXGA) |
| TT Tracking | 30 targets standard, expandable to 100 |
| AIS Targets | 180 standard, expandable to 1,000 |
| TT Tracking Range | Up to 32 NM |

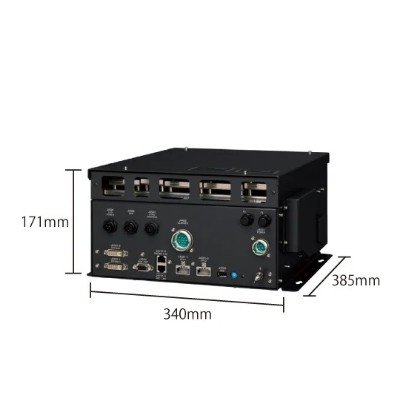

| Processor | NDC-1678 |
| Bearing Modes | North-up / Course-up / Head-up |
| Presentation Modes | Relative Motion / True Motion |
| EBL | 2 |
| VRM | 2 |
| Clutter Processing | Automatic clutter removal |
| Target Trails | Short / medium / long trails |
| Chart Support | C-MAP MAX |
| Country of Origin | Japan |
