JRC JMA-1030 Series – X-Band Marine Radar:
Compact non-SOLAS X-band marine radar designed for vessels below 500 GT, featuring a 7-inch WVGA colour touchscreen, 4 kW/4.9 kW transmitter options, compact radome or open-array scanners, AIS target display, 10-target MARPA+ tracking, guard-zone monitoring and MOB functionality. The system operates from 12–24 VDC and is particularly suited to fishing vessels, pleasure craft, workboats and small commercial vessels.
| Parameter | JMA-1030 Series |
|---|---|
| Manufacturer | JRC – Japan Radio Co., Ltd. |
| Series | JMA-1030 |
| Models | JMA-1032 / JMA-1034 / JMA-1036 |
| Radar Type | Marine X-Band Radar |
| IMO / SOLAS | Non-SOLAS / Non-IMO Cat. 3, <500 GT |
| Frequency | 9410 ± 30 MHz |
| Transmit Power | 4 kW (JMA-1032 / JMA-1034); 4.9 kW (JMA-1036) |
| Antenna | Radome / open-array configuration depending on model |

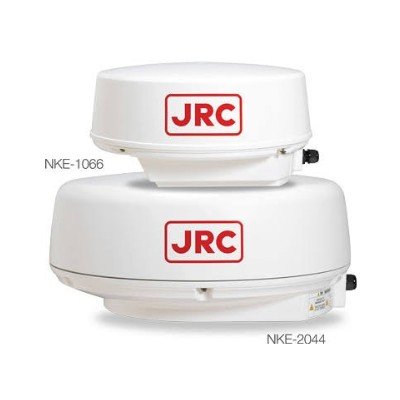

| JMA-1032 Antenna | NKE-1066, 1.5 ft / 450 mm radome |
| JMA-1034 Antenna | NKE-2044, 2 ft / 620 mm radome |
| JMA-1036 Antenna | NKE-2063, 3.9 ft open antenna |

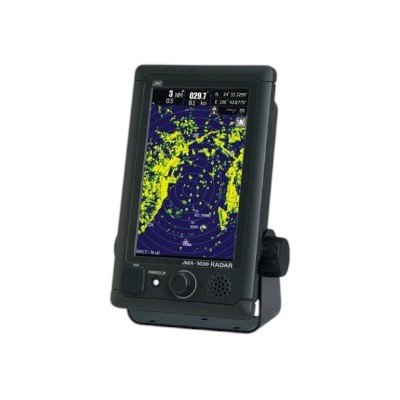

| Display | 7-inch wide WVGA colour LCD |
| Resolution | 800 × 480 pixels |
| Operation | Touchscreen + buttons + rotary/push control |
| Maximum Range | Up to 48 NM for JMA-1032/1034; JMA-1036 supports additional range scale options |
| Minimum Range Scale | 0.0625 NM |
| Rotation Speed | Up to 48 rpm depending on scanner |
| MARPA | 10 automatic tracking targets |
| MARPA Tracking Range | Up to 20 NM |
| AIS Targets | 50 displayed; up to 500 ship static data stored |
| Guard Zone | Built-in |
| MOB Function | Yes |
| NMEA Inputs | Up to 3 channels |
| Power Supply | 12–24 VDC (-10%/+30%) |
| Maximum Consumption | Approximately 50 W |
| Scanner Protection | IP26 |
| Display Protection | IP55 |
| Operating Temperature | Scanner: −25 to +55°C; Display: −15 to +55°C |
| Origin Country | Japan |
| Application | Fishing vessels, yachts, pleasure craft, small commercial/workboats |
