Intellian FB500 FleetBroadband is a high-performance maritime L-band satellite communication terminal designed for reliable voice and broadband data connectivity at sea. It provides up to 432 kbps IP data, simultaneous voice and data services, SMS and fax capabilities. The FB500 can function as a standalone communication terminal or serve as the L-band component of an Intellian Fleet Xpress solution when combined with a GX-series VSAT terminal.
| Parameter | Specification |
|---|---|
| Satellite Service | Inmarsat FleetBroadband |
| Network | Inmarsat ELERA L-band |
| Standard IP Data | Up to 432 kbps |
| Voice | Digital 4 kbps voice |
| SMS | Up to 160 characters |
| Fax | Group 3 via 3.1 kHz Audio |
| RX Frequency | 1518.0–1559.0 MHz |
| TX Frequency | 1626.5–1675.0 MHz |
| RX Channel Width | 10.5–189 kHz |
| TX Channel Width | 21–189 kHz |
| G/T | > −7.0 dB/K |
| Antenna Type | 3-axis directional patch phased-array antenna |
| Azimuth | Unlimited rotation |

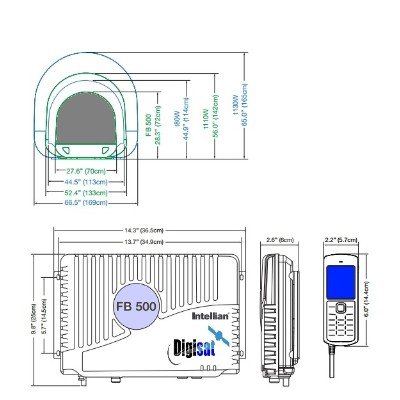

| ADU Size | Approx. 72 × 70 cm |
| ADU Weight | Approx. 15.5 kg |
| BDU Size | Approx. 36 × 25 × 6.7 cm |
| BDU Weight | Approx. 3.9 kg |
| DC Input | 10–32 VDC, isolated |
| Maximum Power | Approx. 150 W, including antenna |
| AC Input | 100–240 VAC, 50/60 Hz |
| Water Ingress | ADU IP56 / BDU IP31 |
| Operating Temperature | −25°C to +55°C |
| Humidity | ADU EN60945; BDU 95% RH non-condensing at +40°C |
| Approvals / Compliance | Inmarsat FleetBroadband, R&TTE, CE, FCC |
| Management Software | Intellian AptusLX |
