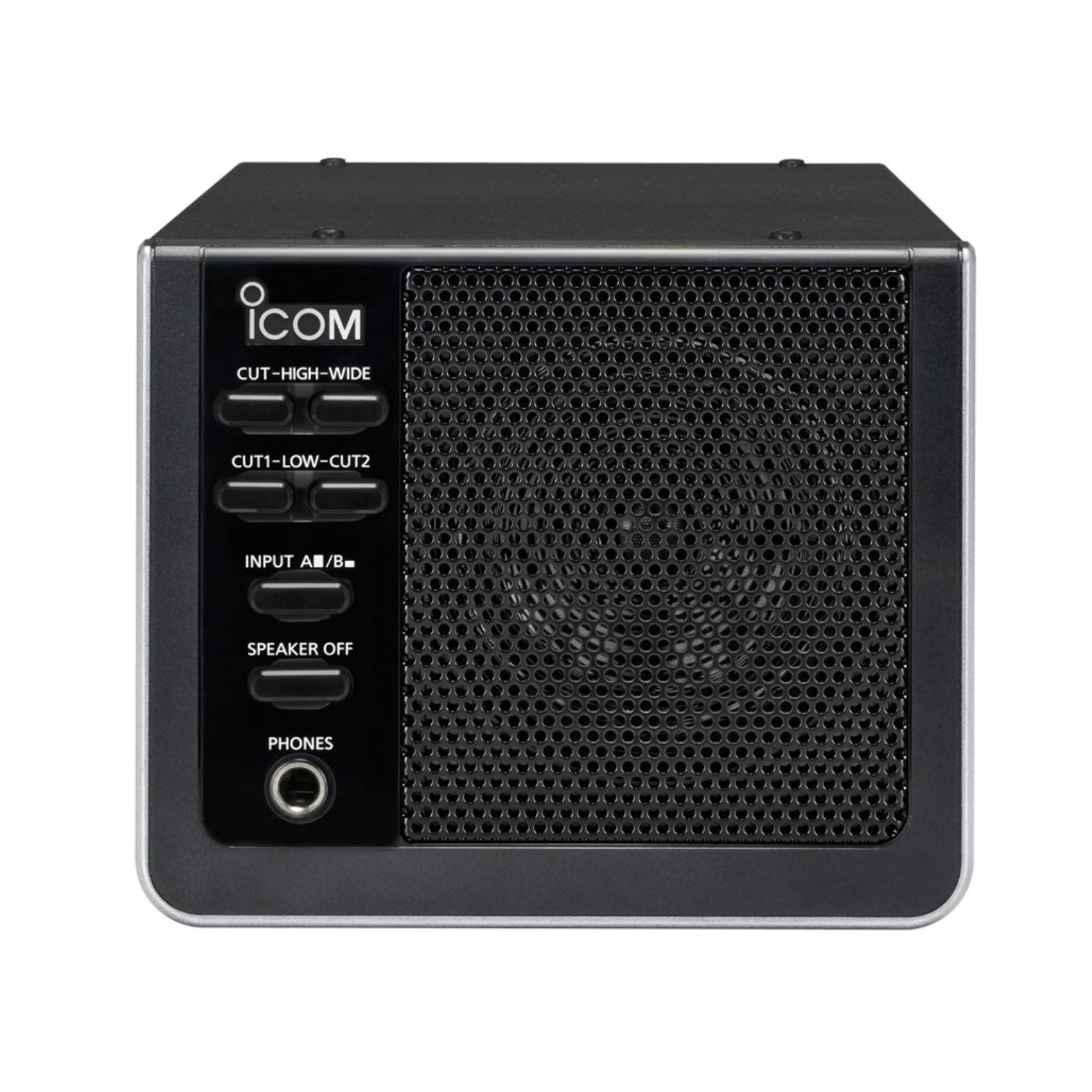

Icom, SP-41 External Communication Speaker with Audio Filters

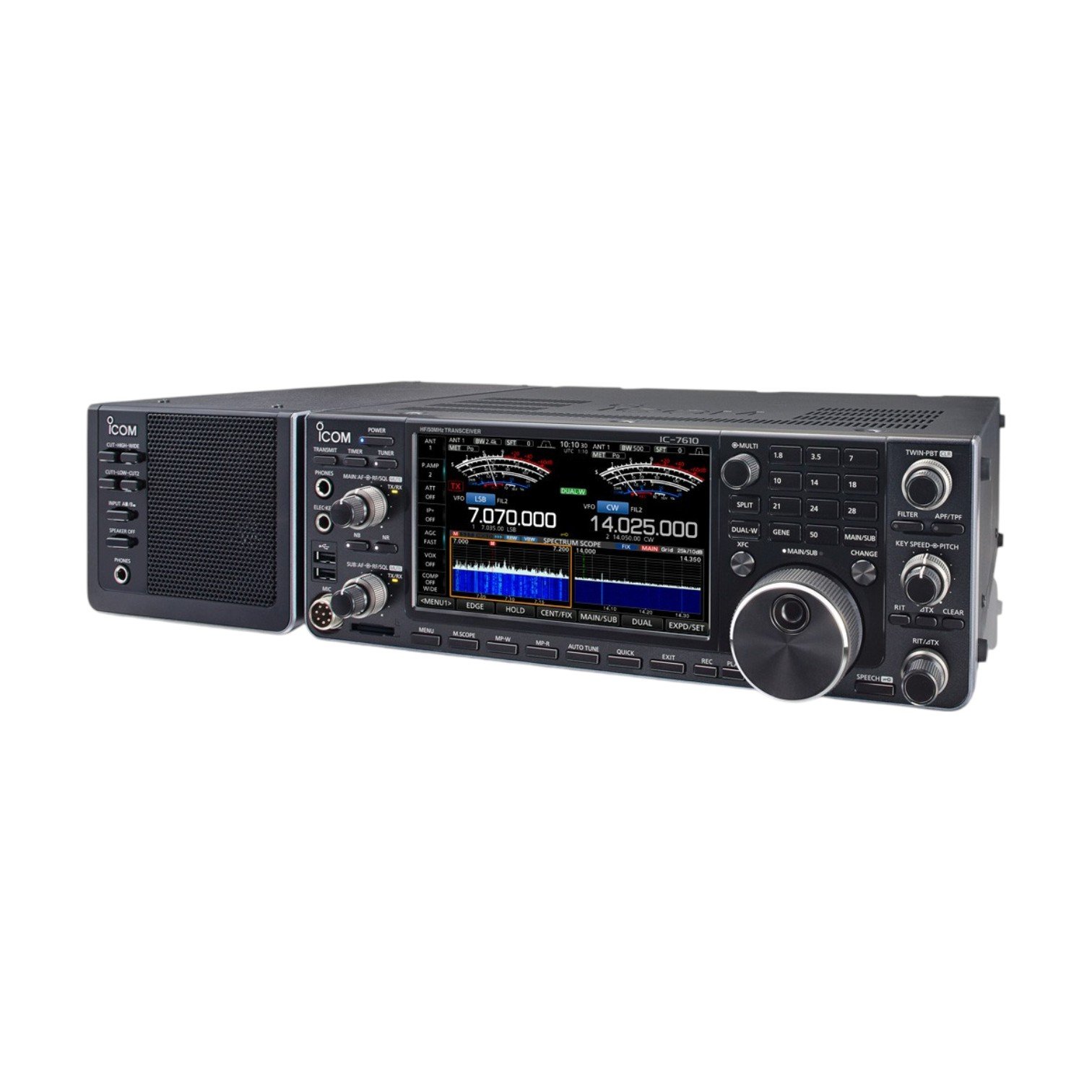

The Icom SP-41 is a high-performance external desktop communication speaker manufactured by Icom Inc. in Japan. Purpose-built to complement Icom’s HF/VHF/UHF marine transceivers, communications receivers, and base station radios (such as the IC-7610, IC-7300, IC-9700, and IC-R8600), the SP-41 delivers audio reproduction while reducing background noise and interference.

Equipped with two dual-position audio filters (High-Cut and Low-Cut), the SP-41 allows operators to tailor sound characteristics to boost voice intelligibility in weak or noisy signal conditions. It features dual 3.5 mm inputs selectable via a front-panel switch, a front-mounted headphone jack, an audio mute switch, and a flip-out tilt stand matching transceiver display angles.

Key Features:
• Selectable Dual Audio Filters: Integrated High-Cut (Cut/Wide) and Low-Cut (Cut1/Cut2) tone controls suppress high-frequency noise and low-frequency hum.
• Dual Input Connections: Accepts two separate audio input sources (Input A / Input B) selectable via front-panel toggle switch.
• Front-Panel Headphone Jack & Mute Switch: Standard 1/4-inch (6.3 mm) headphone jack automatically silences the main speaker for private watchkeeping.
• Matching Ergonomic Design: Styled to align aesthetically and ergonomically with Icom desktop transceivers, featuring an adjustable flip-out tilt stand.

Technical Specification

Attribute Specification Details
Manufacturer Icom Inc.
Model / Part Number SP-41
Item Type External Desktop Communication Speaker with Audio Line Filters
Rated Input Power 5 W
Maximum Input Power 7 W
Impedance 8 Ω
Filter Characteristics High-Cut (Cut, Wide) / Low-Cut (Cut 1, Cut 2)
Audio Inputs 2 × 3.5 mm mini jacks (Input A / Input B, front switchable)
Audio Output 1 × 1/4″ (6.35 mm) stereo headphone jack
Operating Temperature -10°C to +60°C (+14°F to +140°F)
Dimensions (W × H × D) 145 × 118 × 277 mm (5.7 × 4.6 × 10.9 in)
Weight Approx. 2.15 kg (4.7 lbs)
System Compatibility Icom IC-7610, IC-7300, IC-7760, IC-7410, IC-9100, IC-9700, IC-R8600, IC-718
Compliance Standards IEC 60945, CE, FCC
Application Marine radio room communications, weak-signal audio filtering, dual-transceiver monitoring stations
Country of Origin Japan
