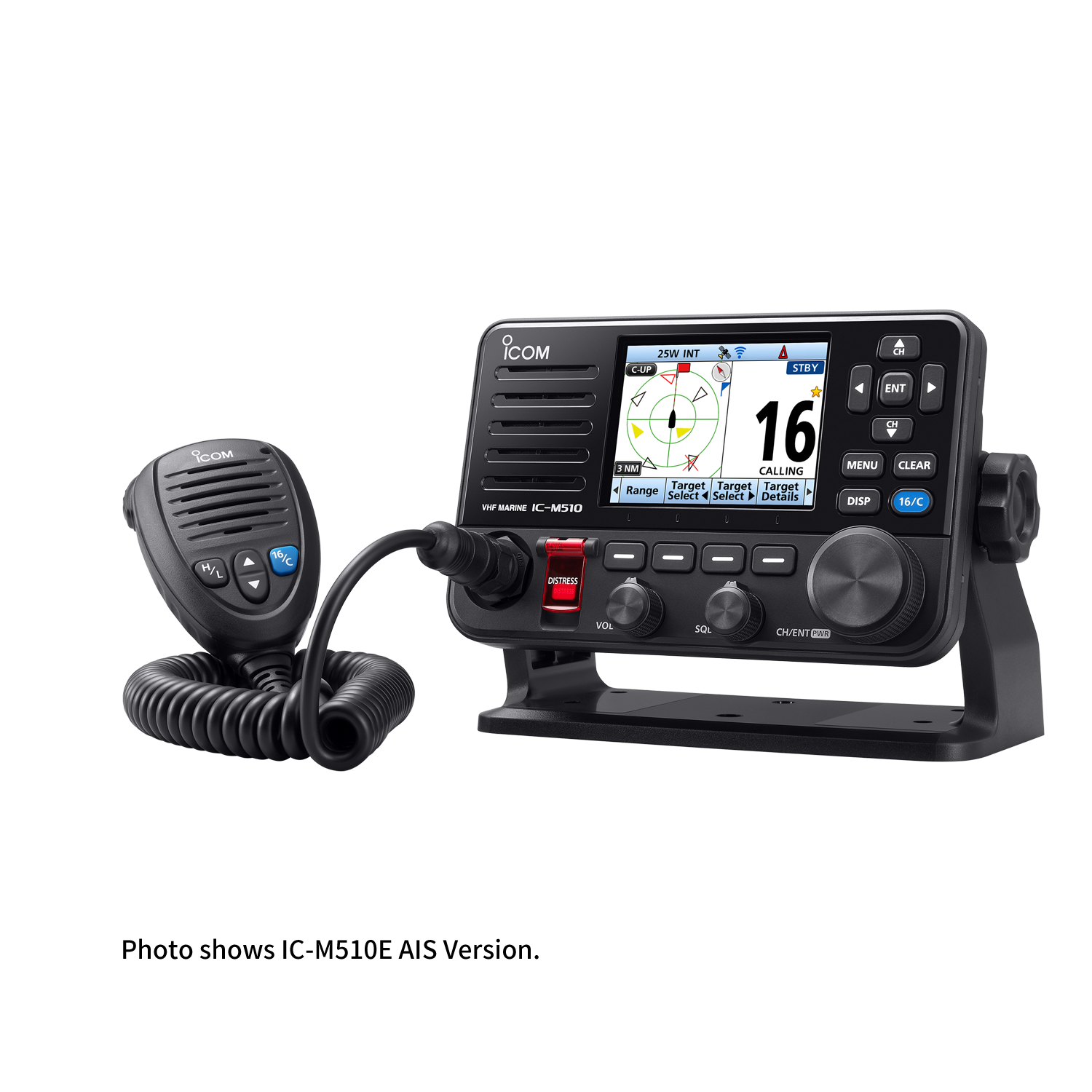

The Icom IC-M510E is an advanced fixed-mount marine VHF transceiver featuring integrated wireless LAN (Wi-Fi) connectivity and a wide-angle color TFT display, manufactured by Icom Inc. in Japan. Engineered for professional commercial vessels, bridge consoles, and high-end yachts, the M510E combines robust 25-watt RF transmission power with Class D Digital Selective Calling (DSC) and smartphone/tablet command integration.
Featuring a large 3.5-inch wide-viewing-angle color TFT LCD, the transceiver presents crystal-clear graphics, channel readouts, and navigation data that remain legible under direct sunlight and high-contrast night modes. Built-in WLAN functionality allows operators to control the radio and manage intercom calls using smart devices via the RS-M500 app. Additionally, the unit incorporates active noise cancellation, an internal GNSS receiver (model dependent), and NMEA 2000/0183 connectivity for seamless bridge system integration.
Key Features:
• 3.5-Inch Wide-Angle Color TFT Display: Large high-resolution screen delivers exceptional legibility from wide viewing angles across the wheelhouse.
• Built-In WLAN Smartphone Integration: Enables wireless operation, intercom communication, and remote control via iOS/Android devices running the Icom RS-M500 app.
• Class D DSC Built-In: Continuous monitoring of Channel 70 alongside dedicated receiver circuitry for automated distress and safety alerting.
• NMEA 2000 & NMEA 0183 Connectivity: Plug-and-play data sharing with multi-function displays, GPS navigators, and onboard instrument networks.
• Active Noise-Canceling Technology: Advanced digital signal processing removes background engine and wind noise from transmitted and received audio.
| Attribute | Specification Details |
| Manufacturer | Icom Inc. |
| Model / Part Number | IC-M510E (M510E) |
| Item Type | Fixed-Mount VHF Marine Transceiver with DSC and WLAN |
| Frequency Range | Tx: 156.025 MHz – 161.600 MHz; Rx: 156.000 MHz – 163.425 MHz; CH70: 156.525 MHz |
| RF Output Power | 25 Watts (High) / 1 Watt (Low) |
| DSC Class | Class D DSC (ITU-R M.493-13 compliant) |
| Display | 3.5-inch wide-angle color TFT LCD (320 × 240 pixels) |
| Wireless Connectivity | Built-in WLAN (IEEE 802.11 b/g/n) for smart device control |
| Waterproof Rating | IPX7 (Front panel: 1 meter depth for 30 minutes) |
| Audio Output Power | 15 W typical (into external speaker); 4.5 W internal speaker |
| Power Supply Requirement | 13.8 V DC nominal (11.7 V – 15.9 V DC) |
| Current Consumption | Tx (25W): 5.5 A max; Rx (AF max): 1.8 A |
| Operating Temperature Range | -20°C to +60°C (-4°F to +140°F) |
| Dimensions (W × H × D) | 175 × 110 × 47.8 mm (6.9 × 4.3 × 1.9 in) |
| Weight | Approx. 940 g (2.07 lbs) |
| Compliance & Standards | IEC 60945 (Marine EMC & Environmental), CE, RED, RoHS |
| Application | Commercial vessel primary bridge communications, networked wheelhouse DSC terminals |
| Country of Origin | Japan |
