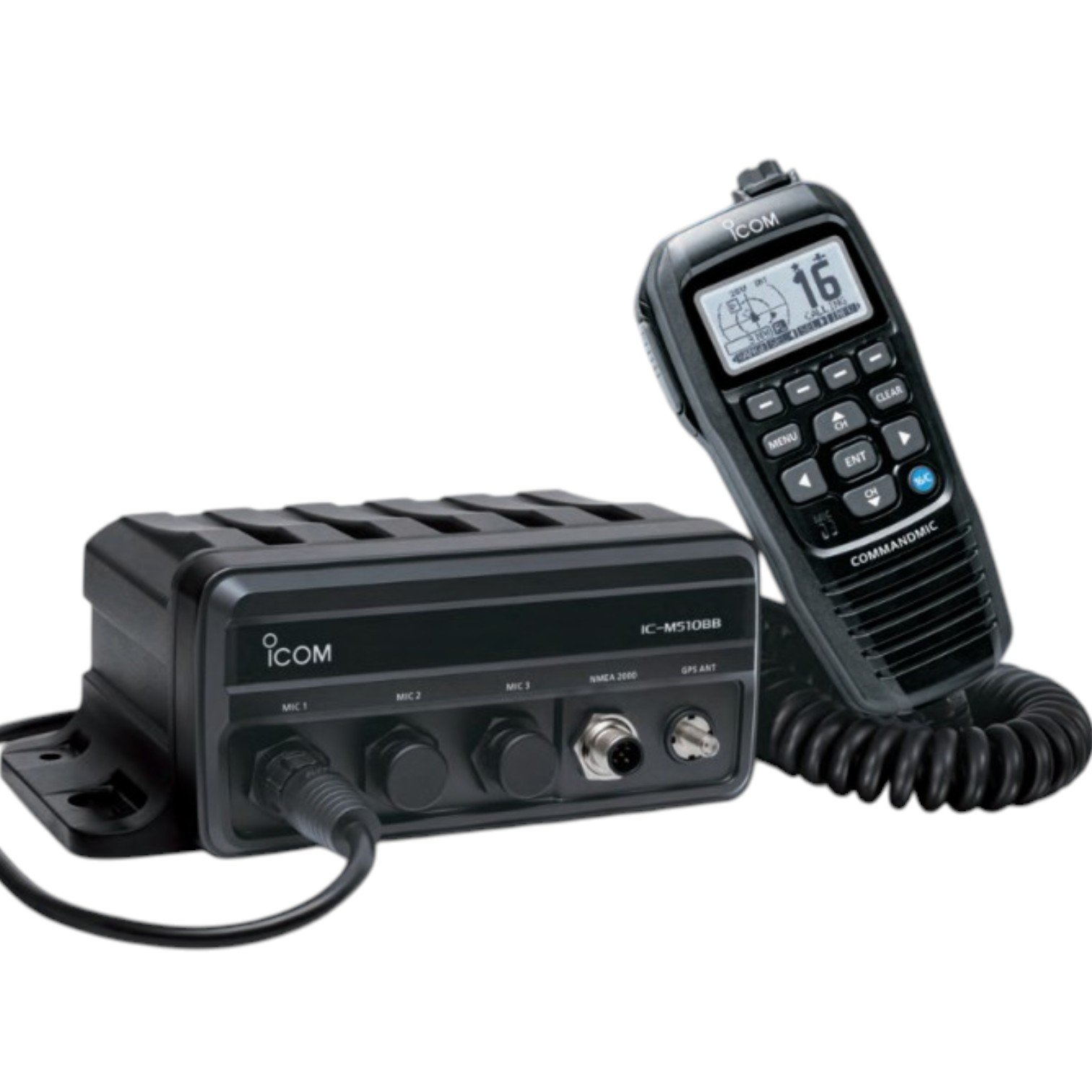

The Icom IC-M510BB is an advanced black-box style fixed-mount marine VHF transceiver manufactured by Icom Inc. in Japan. Designed for professional commercial vessels, workboats, and helm stations with limited dash space, the M510BB separates the main RF transceiver chassis from the control interface, allowing the main unit to be safely tucked away out of sight while providing full operation via up to three remote CommandMic units.
The system is operated via the supplied HM-195GB/HM-229 style CommandMic, which features a high-contrast backlit LCD screen, full keypad control, and intuitive soft-key navigation. The transceiver incorporates a built-in Class D DSC receiver, integrated NMEA 2000 and NMEA 0183 connectivity, and a powerful 25-watt RF output. It also supports smart device integration via WLAN for wireless monitoring and intercom functions.
Key Features:
• Space-Saving Black Box Architecture: Main RF transceiver unit mounts remotely in an equipment rack or behind a bulkhead, freeing up valuable helm console space.

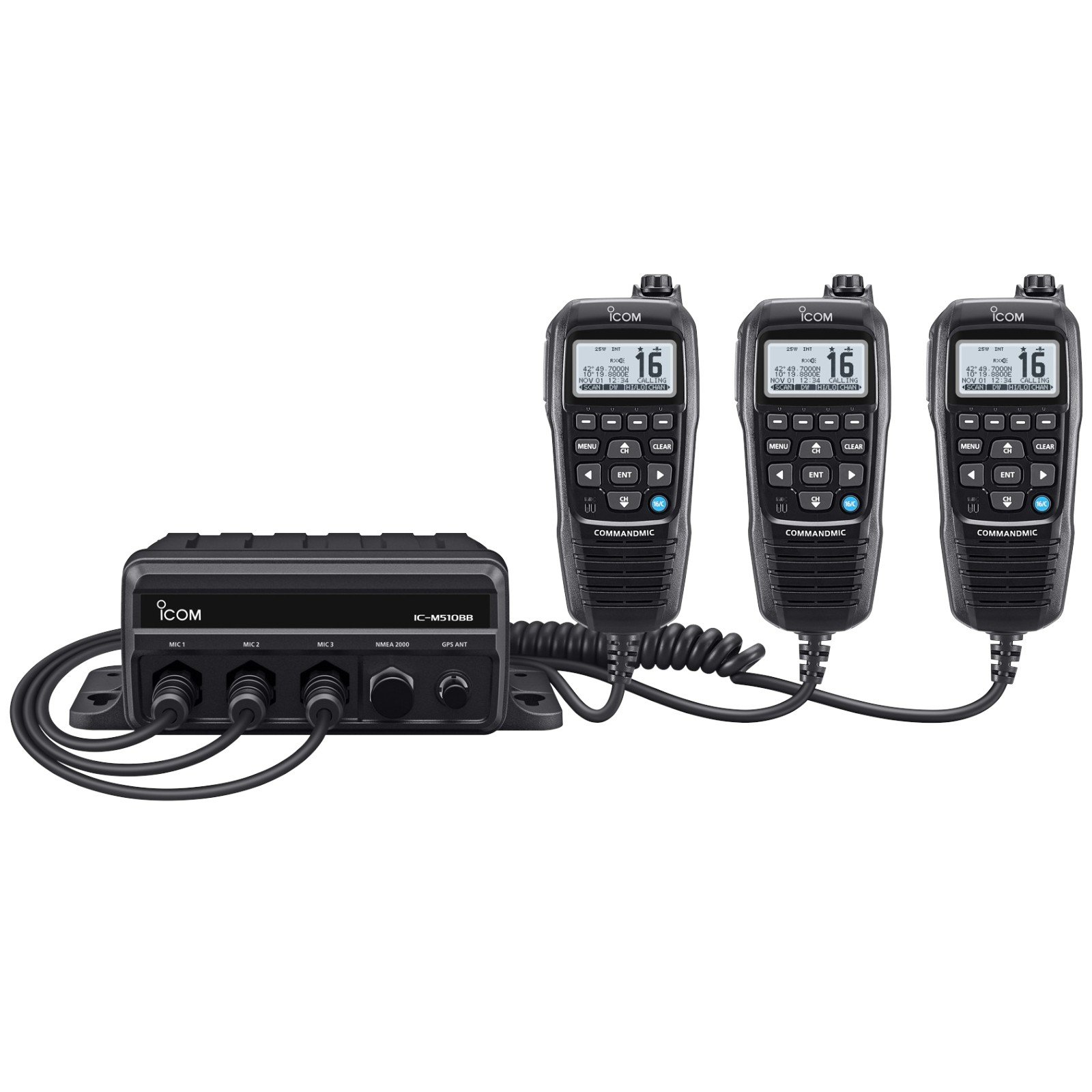

• Multi-Station CommandMic Operation: Supports up to three remote control microphone stations, allowing full transceiver operation from multiple bridge locations or bridge wings.
• Class D DSC Built-In: Continuous monitoring of Channel 70 alongside an independent receiver for automated distress and safety alerting.
• NMEA 2000 & NMEA 0183 Connectivity: Seamlessly integrates with onboard navigation sensors, multi-function displays, and GPS systems.
• Smart Device WLAN Integration: Enables wireless control, intercom, and media streaming via iOS/Android devices running the Icom RS-M500 app.
| Attribute | Specification Details |
| Manufacturer | Icom Inc. |
| Model / Part Number | IC-M510BB (M510BB) |
| Item Type | Black Box Fixed-Mount Marine VHF Transceiver with DSC |
| Frequency Range | Tx: 156.025 MHz – 161.600 MHz; Rx: 156.000 MHz – 163.425 MHz; CH70: 156.525 MHz |
| RF Output Power | 25 Watts (High) / 1 Watt (Low) |
| DSC Class | Class D DSC (ITU-R M.493-13 compliant) |
| Control Interface | Up to 3 CommandMic stations (HM-195 series remote microphones) |
| Wireless Connectivity | Built-in WLAN (IEEE 802.11 b/g/n) for smartphone/tablet linking |
| Interface Ports | NMEA 2000, NMEA 0183/0183-HS, external speaker, GPS antenna |
| Waterproof Rating | IPX7 (CommandMic and transceiver chassis housing) |
| Power Supply Requirement | 13.8 V DC nominal (11.7 V – 15.9 V DC) |
| Current Consumption | Tx (25W): 5.5 A max; Rx (AF max): 1.8 A |
| Operating Temperature Range | -20°C to +60°C (-4°F to +140°F) |
| Dimensions (Main Chassis) | Compact remote-mount configuration |
| Compliance & Standards | IEC 60945 (Marine EMC & Environmental), CE, RED, RoHS |
| Application | Commercial vessel multi-station bridge communication, space-constrained wheelhouses |
| Country of Origin | Japan |
