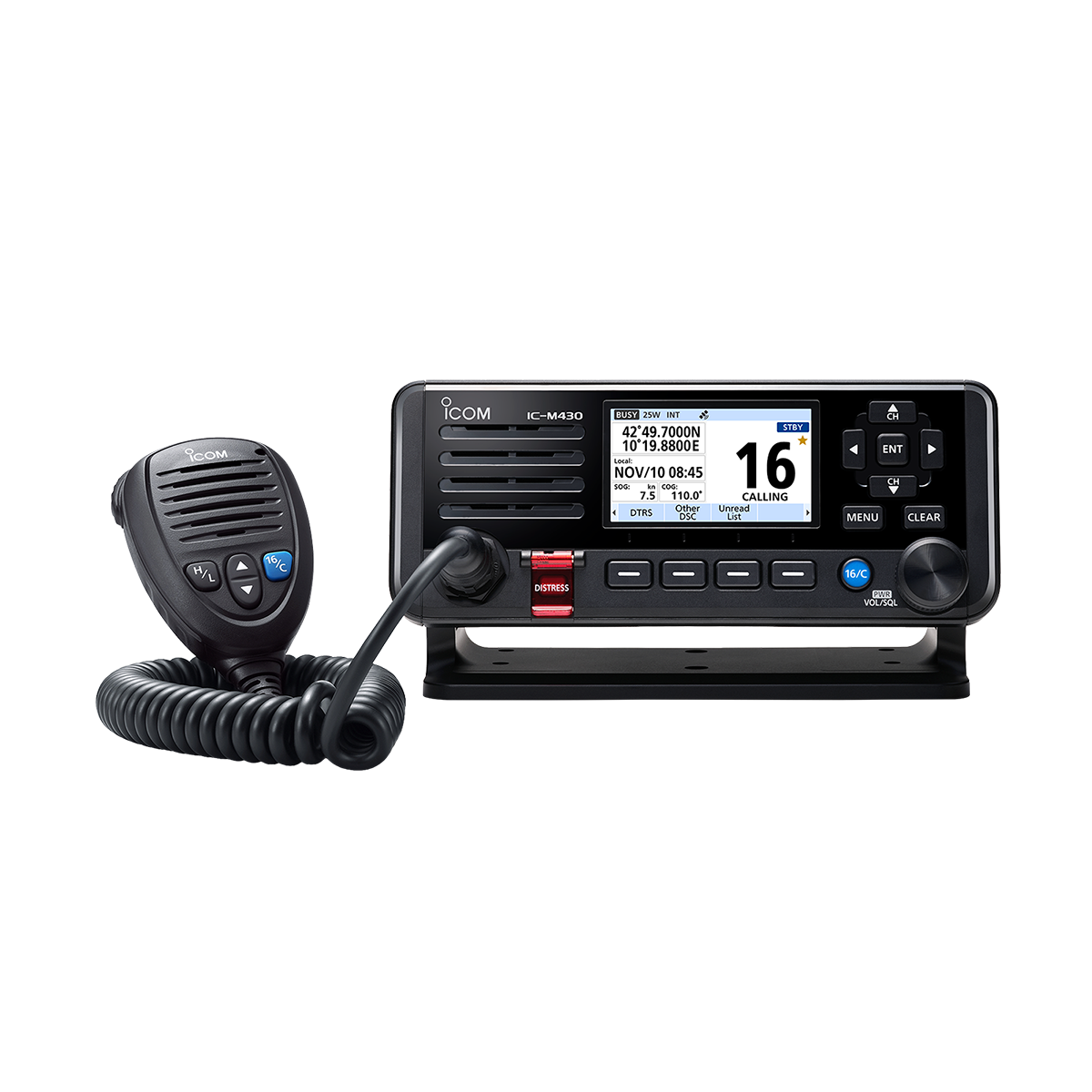

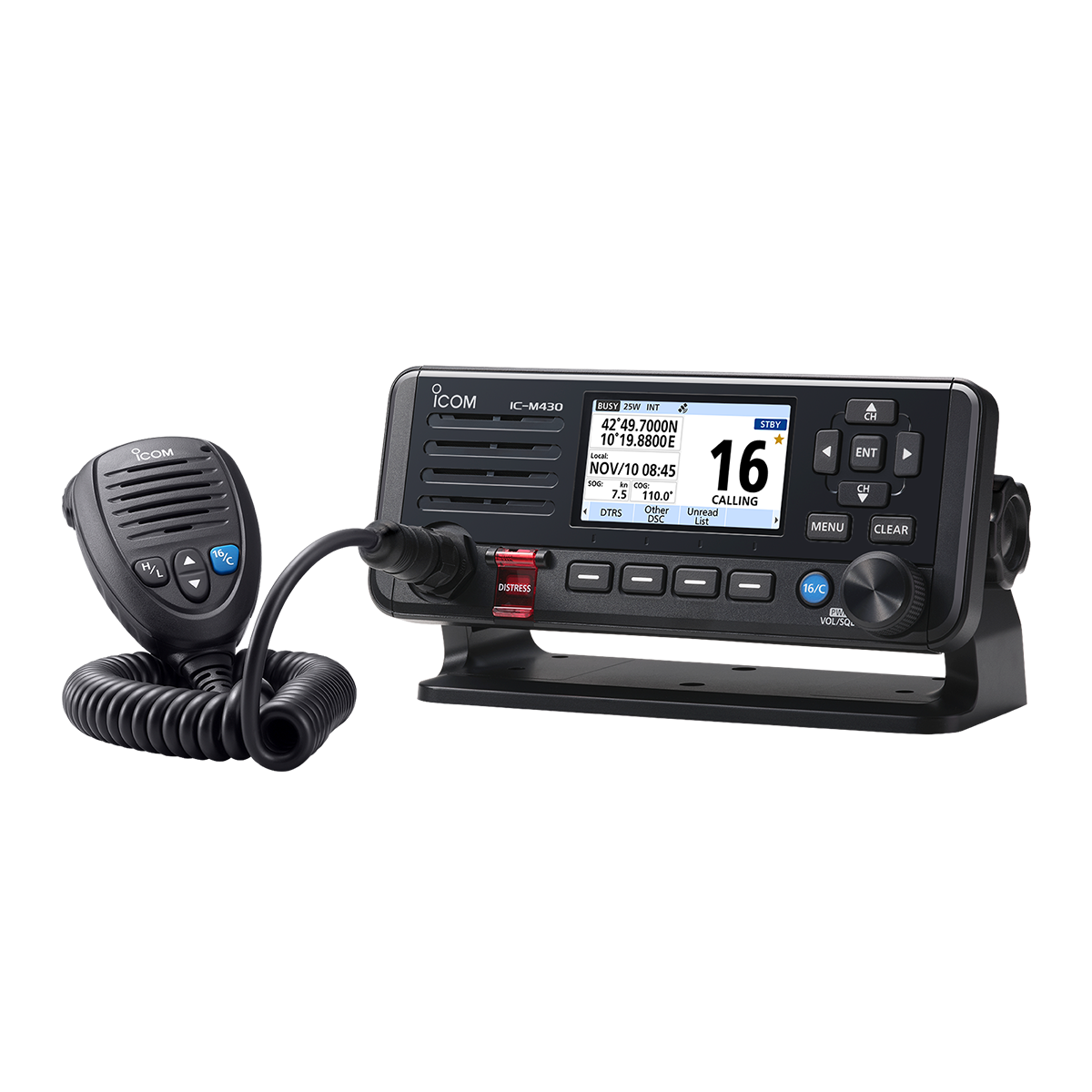

The Icom IC-M430E is a sophisticated fixed-mount marine VHF transceiver featuring an integrated high-sensitivity GPS receiver and a vibrant color TFT display, manufactured by Icom Inc. in Japan. Engineered for professional commercial vessels, workboats, and advanced leisure craft, the M430E delivers powerful 25-watt communication performance alongside built-in Class D Digital Selective Calling (DSC).
Equipped with a high-resolution color LCD, the transceiver provides exceptional day and night legibility with intuitive soft-key navigation. The built-in multi-GNSS GPS receiver eliminates the need for an external position sensor input for DSC distress operations. Furthermore, the unit features advanced active noise cancellation to suppress background engine and wind noise, ensuring crystal-clear audio transmission and reception in noisy wheelhouses.
Key Features:
• High-Resolution Color TFT Display: Wide-angle color screen offers superior clarity, crisp graphics, and adjustable night mode for bridge watchkeeping.
• Built-In Multi-GNSS GPS Receiver: Automatically acquires position, course, and time data for rapid DSC distress alerting without external wiring.
• Class D DSC Built-In: Continuous monitoring of Channel 70 alongside independent receiver architecture for reliable safety communication.
• Active Noise-Canceling Technology: Bi-directional digital processor removes up to 90% of background ambient noise from transmitted and received audio.
• IPX7 Waterproof Protection: Rugged front-panel housing designed to withstand harsh marine environments and water immersion up to 1 meter for 30 minutes.
| Attribute | Specification Details |
| Manufacturer | Icom Inc. |
| Model / Part Number | IC-M430E (M430E) |
| Item Type | Fixed-Mount VHF Marine Transceiver with Built-In GPS |
| Frequency Range | Tx: 156.025 MHz – 162.000 MHz; Rx: 156.025 MHz – 161.600 MHz; CH70: 156.525 MHz |
| RF Output Power | 25 Watts (High) / 1 Watt (Low) |
| DSC Class | Class D DSC (ITU-R M.493-13 compliant) |
| GPS Receiver | Built-in multi-GNSS receiver (GPS, GLONASS, SBAS) |
| Display | High-resolution color TFT LCD with adjustable backlighting |
| Waterproof Rating | IPX7 (Front panel: 1 meter depth for 30 minutes) |
| Audio Output Power | 10 W typical (into external speaker); 4.5 W internal speaker |
| Power Supply Requirement | 13.8 V DC nominal (11.7 V – 15.9 V DC) |
| Current Consumption | Tx (25W): 5.5 A max; Rx (AF max): 1.5 A |
| Operating Temperature Range | -20°C to +60°C (-4°F to +140°F) |
| Dimensions (W × H × D) | Standard fixed-mount bridge console format |
| Compliance & Standards | IEC 60945 (Marine EMC & Environmental), CE, RED, RoHS |
| Application | Commercial vessel primary bridge VHF/DSC radio, wheelhouse communications |
| Country of Origin | Japan |
