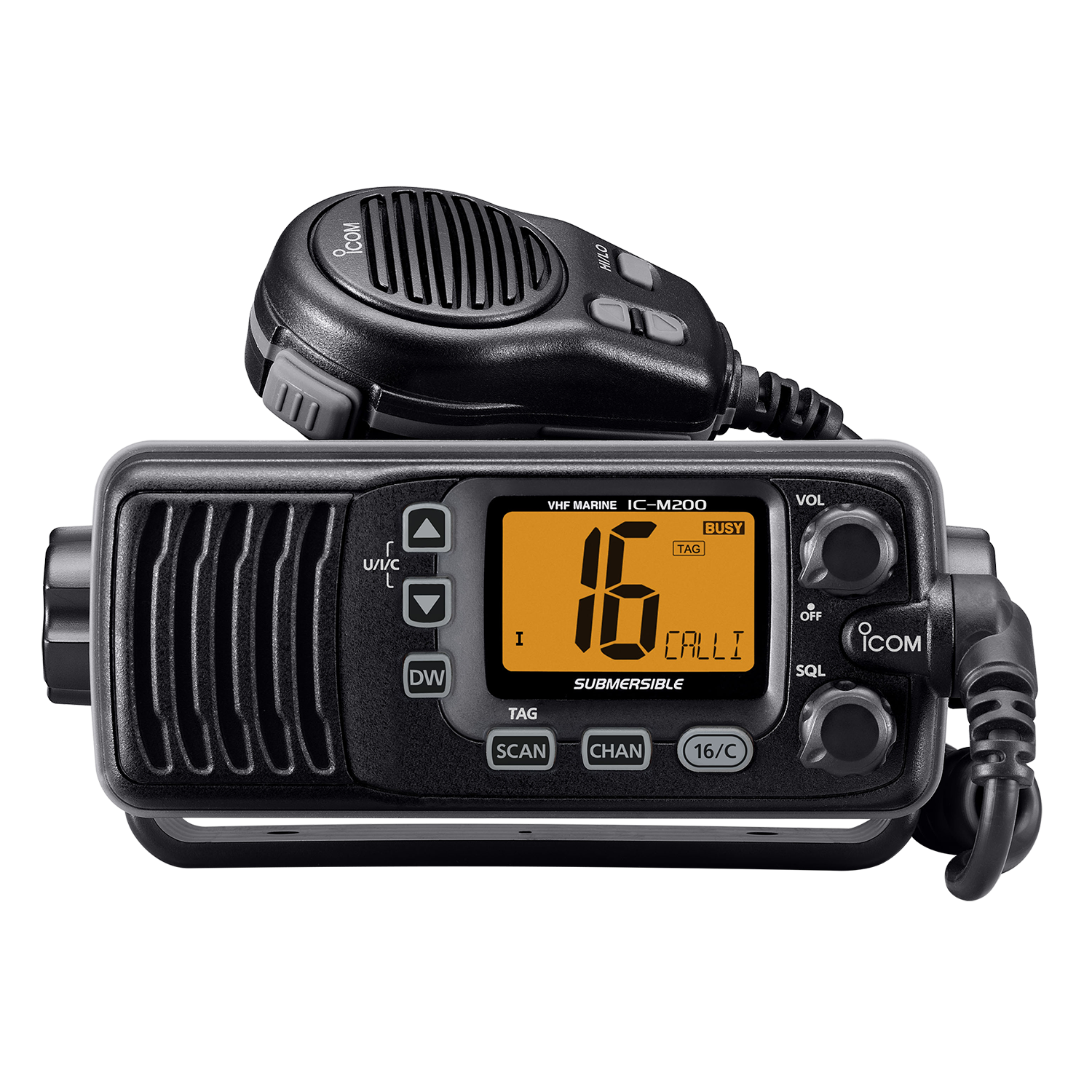

The Icom IC-M200 is a compact, high-reliability fixed-mount VHF marine transceiver manufactured by Icom Inc. in Japan. Designed for small commercial craft, workboat tenders, and space-constrained vessel bridges, the IC-M200 delivers full 25-watt transmitting power in a compact housing that easily integrates into instrument panels or overhead consoles.
Featuring an IPX7 submersible waterproof rating, the IC-M200 includes Icom’s signature AquaQuake draining function, which emits a vibrating acoustic tone to quickly clear water from the speaker grill. Built with a Temperature Compensated Crystal Oscillator (TCXO) for exceptional frequency stability, it comes equipped with a large high-contrast LCD screen, dualwatch/tri-watch monitoring modes, and the HM-164B hand microphone with integrated channel control buttons.
Key Features:
• Compact & Space-Saving Design: Fits into tight mounting locations on small vessel dashboards, wheelhouse consoles, and RIB helm pods.
• AquaQuake Draining Function: Emits low-frequency sound waves to clear trapped water from the speaker grill after high-wave exposure.
• IPX7 Waterproof Protection: Engineered to withstand water immersion up to 1 meter depth for 30 minutes.
• Built-In TCXO Frequency Stability: High-precision oscillator ensures reliable communication across extreme temperature shifts.
• Hand Microphone Channel Controls: Included HM-164B microphone allows operators to change channels and toggle radio settings directly from the handset.
| Attribute | Specification Details |
| Manufacturer | Icom Inc. |
| Model / Part Number | IC-M200 (M200) |
| Item Type | Compact Fixed-Mount VHF Marine Transceiver |
| Frequency Range | Tx: 156.025 MHz – 162.000 MHz; Rx: 156.025 MHz – 162.025 MHz |
| RF Output Power | 25 Watts (High) / 1 Watt (Low) |
| Waterproof Rating | IPX7 (1 meter depth for 30 minutes) |
| Display | High-contrast backlit monochrome LCD |
| Audio Output Power | 4.5 W nominal (at 10% distortion into 4 Ω load) |
| Supply Voltage | 13.8 V DC ±15% (11.7 V – 15.9 V DC) |
| Current Consumption | Tx (25W): ≤ 5.5 A; Rx (max audio): ≤ 1.5 A |
| Frequency Stability | ±1.5 kHz (-20°C to +60°C, TCXO controlled) |
| Dimensions (W × H × D) | 153 × 67 × 133 mm (6.0 × 2.6 × 5.2 in) |
| Weight | Approx. 790 g (1.74 lbs) |
| Channel Selection | International (INT), USA, and Canadian (CAN) channel sets |
| Compliance & Standards | IEC 60945, CE, FCC, RoHS |
| Application | Primary VHF radio for small craft, auxiliary bridge radio, tender communications |
| Country of Origin | Japan |
