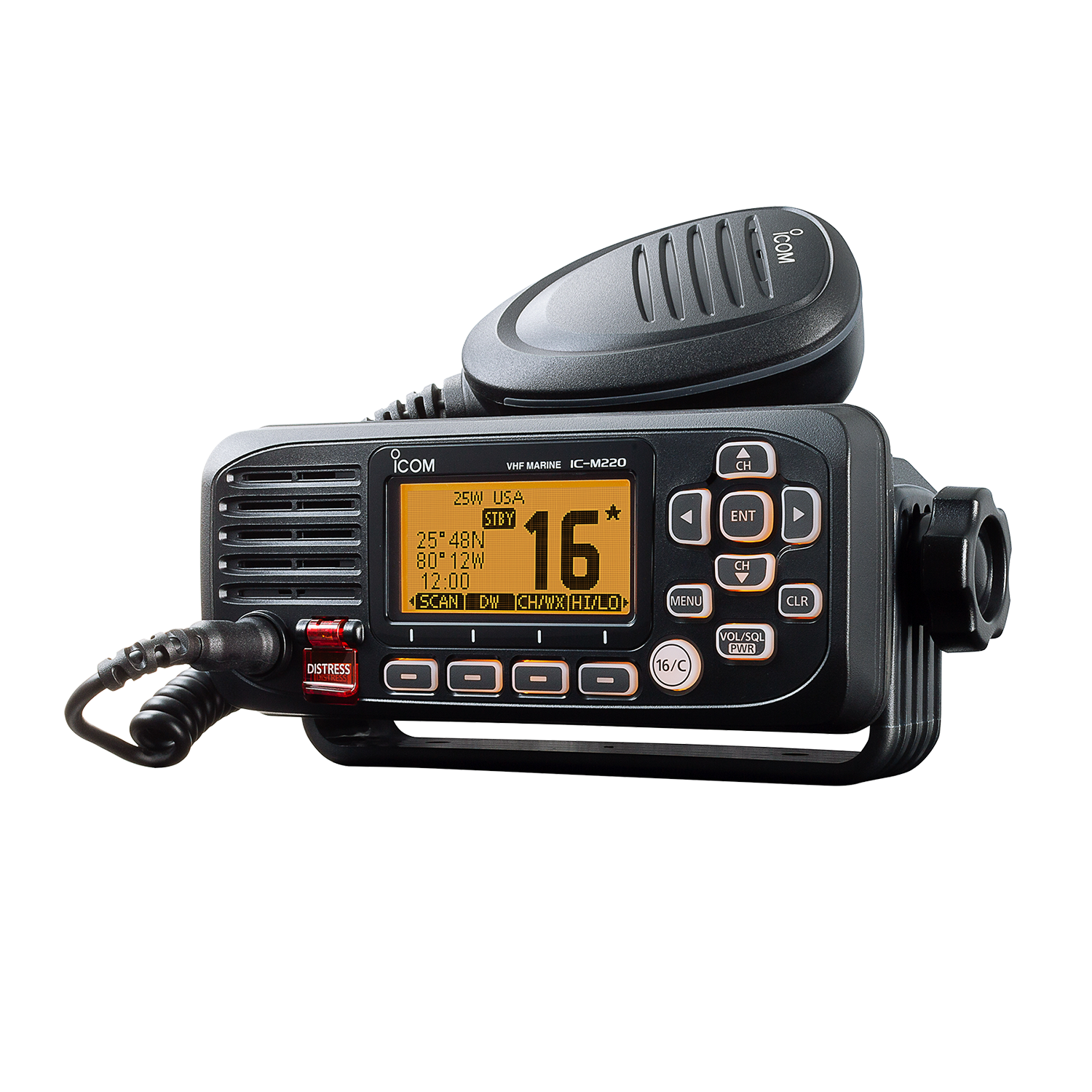

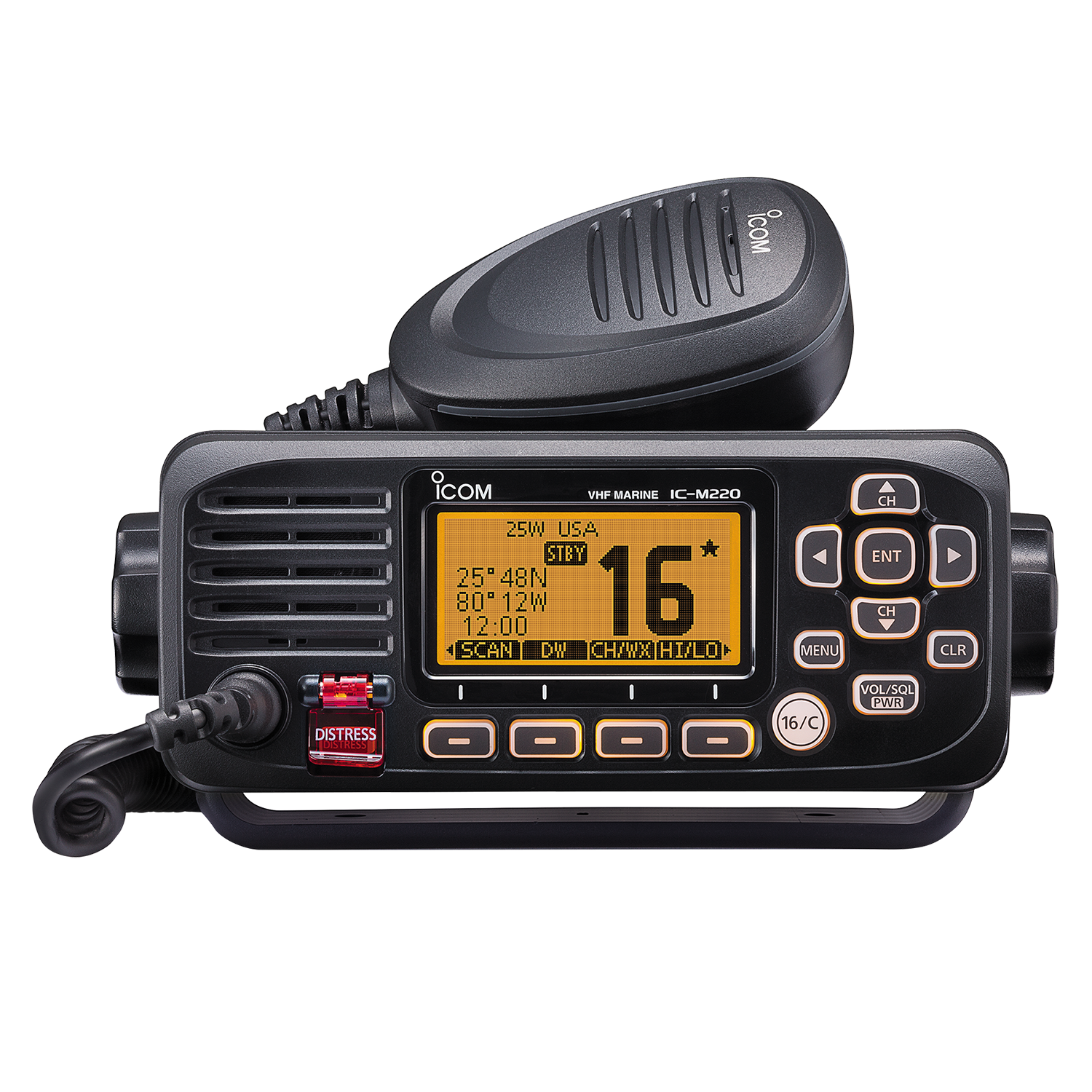

The Icom IC-M220 is an ultra-compact fixed-mount marine VHF transceiver featuring built-in Class D Digital Selective Calling (DSC), manufactured by Icom Inc. in Japan. Designed specifically for small commercial vessels, RIBs, workboat tenders, and space-constrained bridge consoles, the M220 delivers full 25-watt output power and advanced marine communication capabilities in one of the smallest footprints in the industry.
Featuring a high-contrast, wide-viewing-angle dot-matrix LCD, the transceiver provides clear channel data and GPS position readouts even under direct sunlight. It includes a built-in dedicated DSC receiver that continuously monitors Channel 70, an IPX7 waterproof front panel, and Icom’s signature AquaQuake water-draining function to clear moisture from the speaker grill.
Key Features:
• Ultra-Compact Form Factor: Space-saving dimensions allow flexible dashboard, overhead, or flush-mount installation in tight wheelhouses and helm stations.
• Class D DSC Built-In: Continuously monitors Channel 70 for automated safety, urgency, and distress calling (NMEA 0183 GPS input required).
• High-Contrast Dot-Matrix Display: Clear characters and intuitive soft-key navigation ensure effortless operation in all lighting conditions.
• IPX7 Submersible Protection: Built to withstand water immersion up to 1 meter depth for 30 minutes on the front panel.
• AquaQuake Draining Function: Emits vibrating acoustic tones to expel water trapped inside the speaker cone after heavy deck spray exposure.
| Attribute | Specification Details |
| Manufacturer | Icom Inc. |
| Model / Part Number | IC-M220 (M220) |
| Item Type | Ultra-Compact Fixed-Mount VHF Marine Transceiver with Class D DSC |
| Frequency Range | Tx: 156.025 MHz – 162.000 MHz; Rx: 156.025 MHz – 161.600 MHz; CH70: 156.525 MHz |
| RF Output Power | 25 Watts (High) / 1 Watt (Low) |
| DSC Class | Class D DSC (ITU-R M.493-13 compliant) |
| Display | High-contrast dot-matrix LCD with amber backlighting |
| Waterproof Rating | IPX7 (Front panel: 1 meter depth for 30 minutes) |
| Audio Output Power | 4.5 W typical (into 4 Ω external speaker load) |
| Power Supply Requirement | 13.8 V DC nominal (11.7 V – 15.9 V DC) |
| Current Consumption | Tx (25W): 5.0 A max; Rx (AF max): 1.2 A |
| Operating Temperature Range | -20°C to +60°C (-4°F to +140°F) |
| Dimensions (W × H × D) | 125.6 × 66.5 × 110.1 mm (4.9 × 2.6 × 4.3 in) |
| Weight | Approx. 730 g (1.61 lbs) |
| Compliance & Standards | IEC 60945 (Marine EMC & Environmental), CE, FCC, RoHS |
| Application | Small commercial vessel bridge radios, tender communications, compact DSC safety terminals |
| Country of Origin | Japan |
