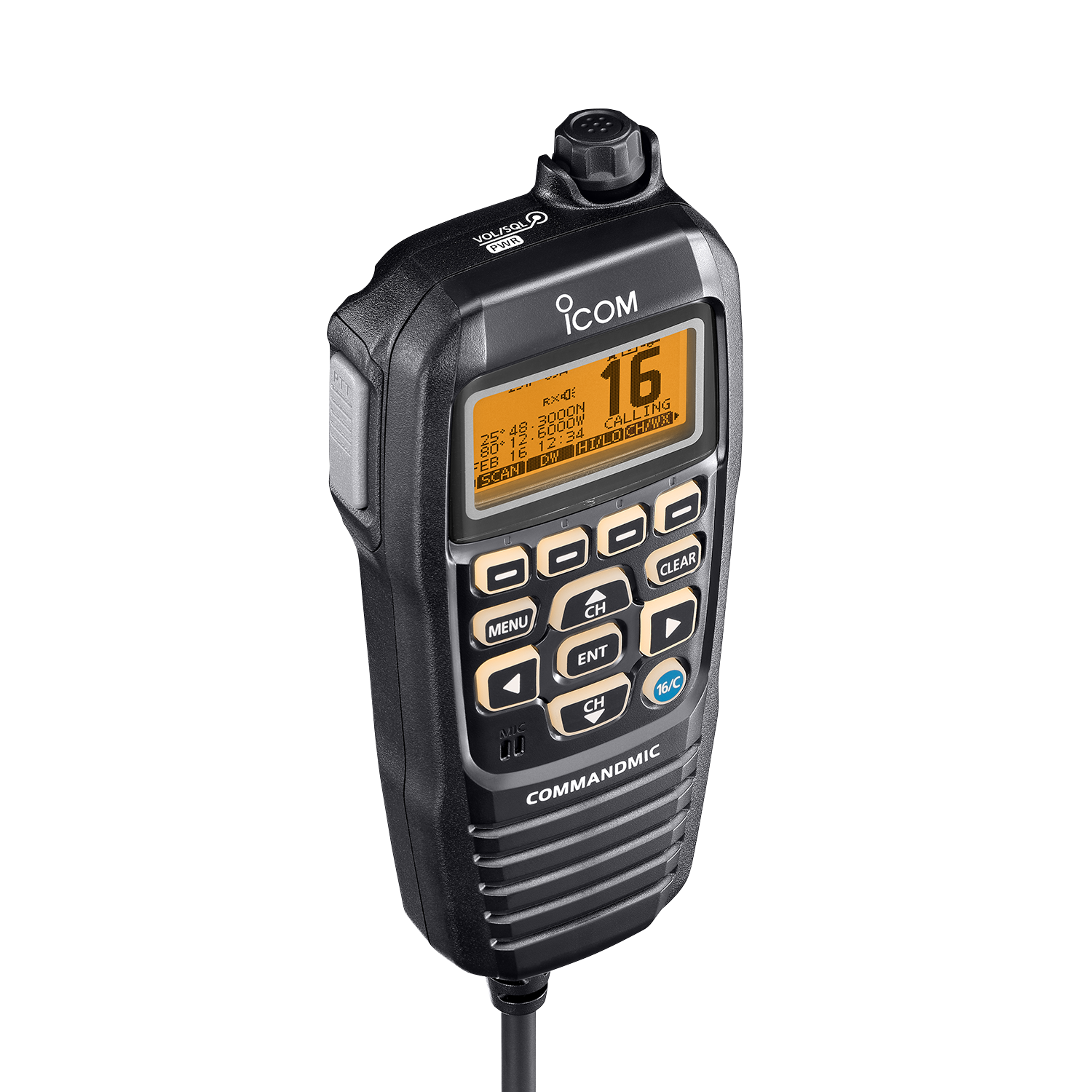

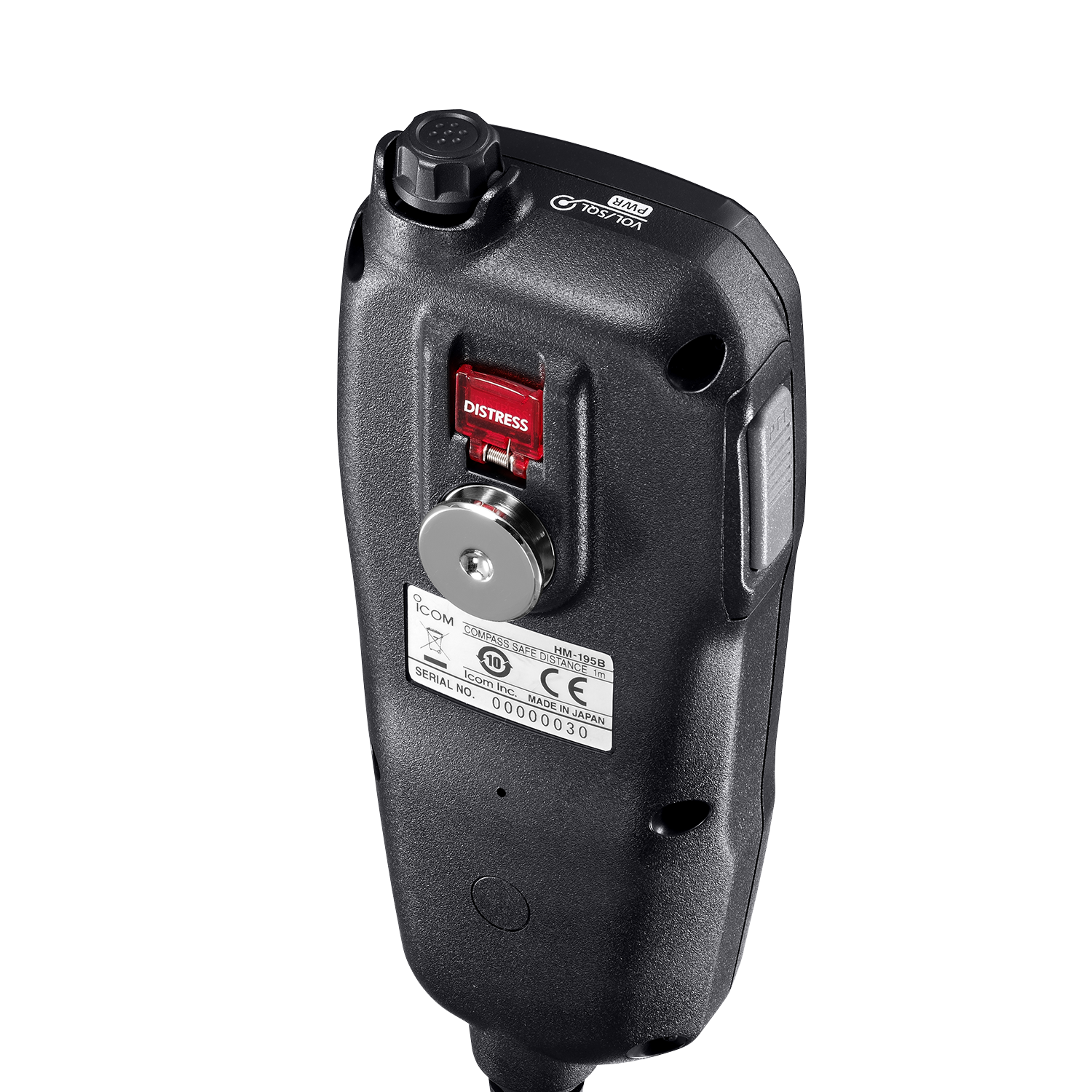

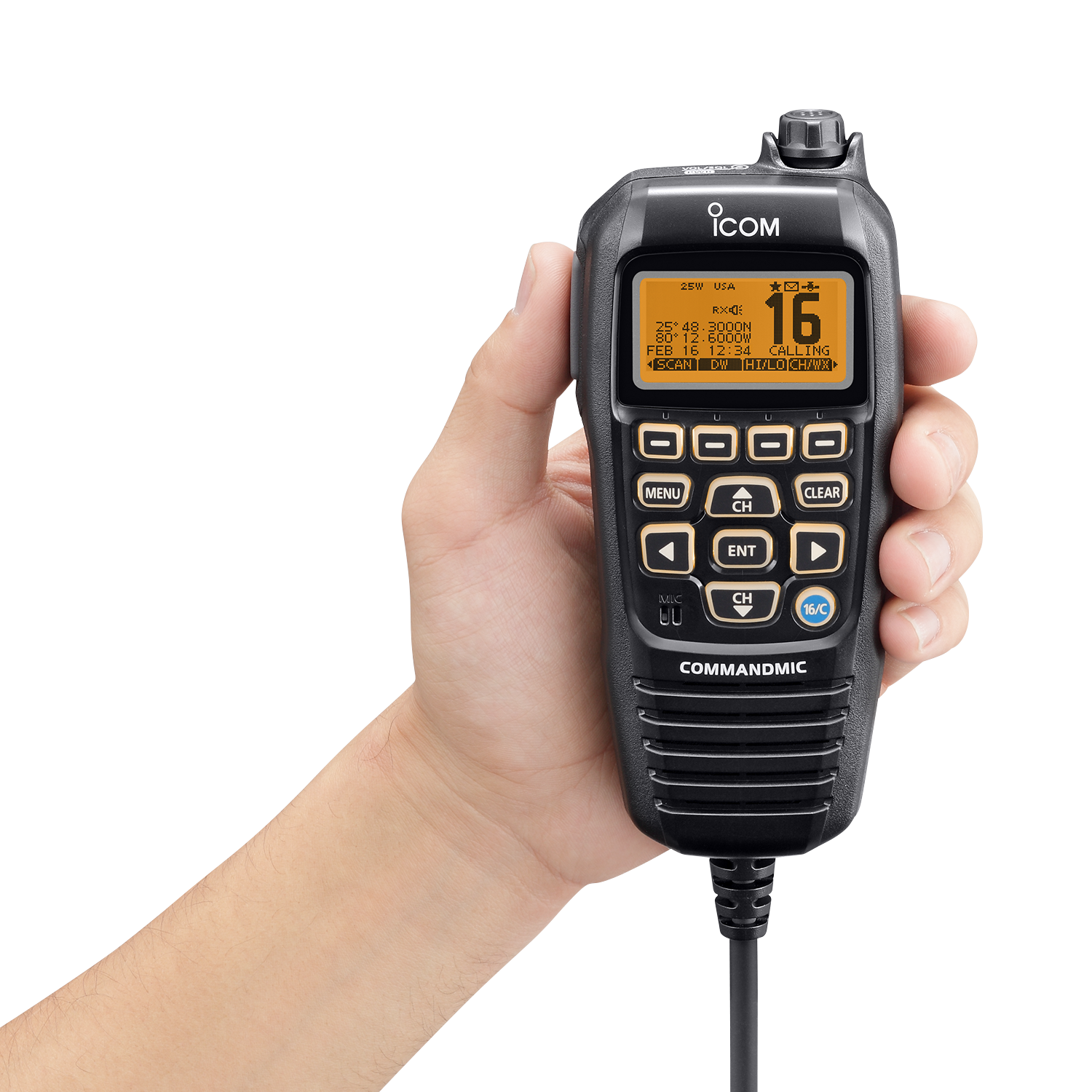

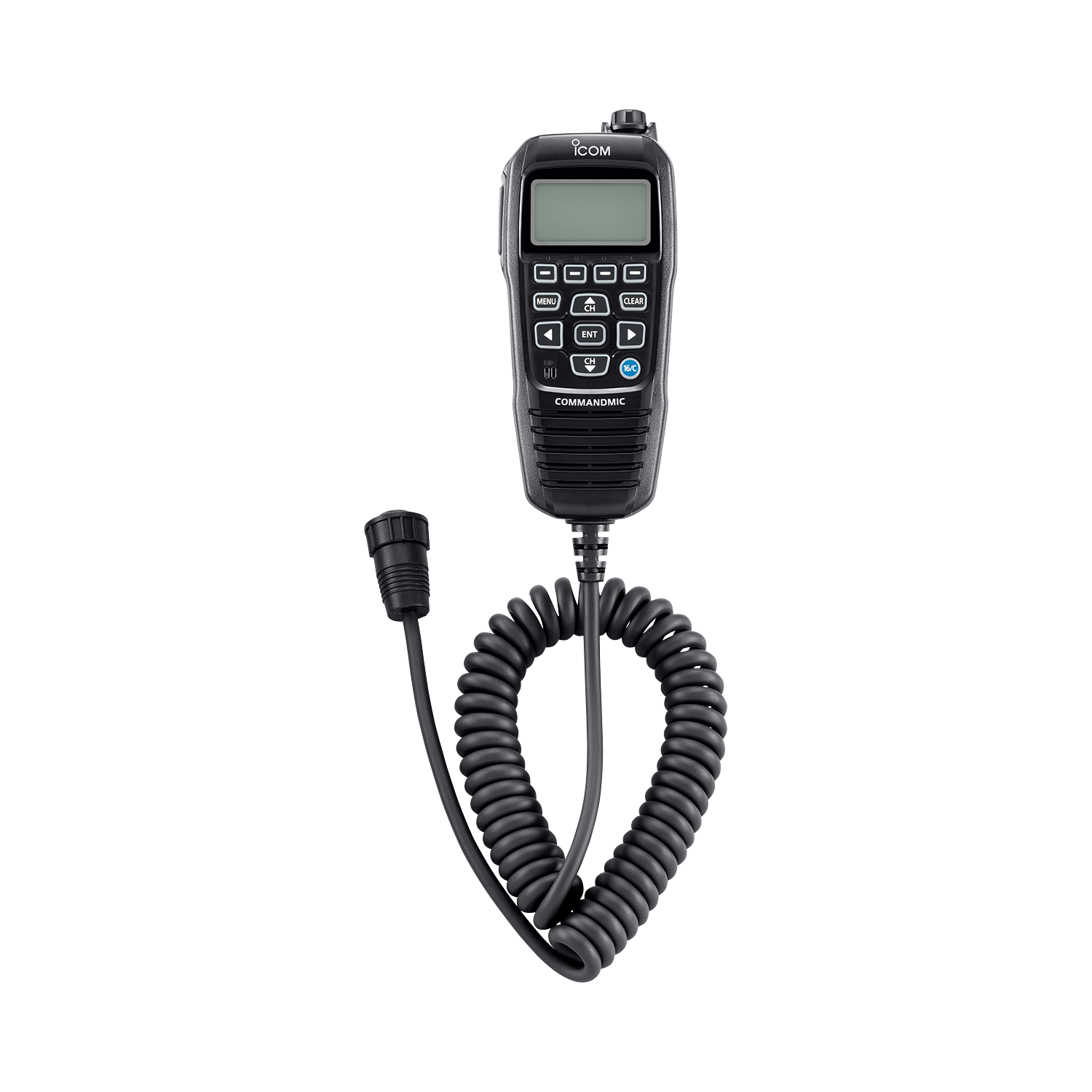

Icom, HM-195B CommandMic Remote Control Handset with Amber Backlit LCD (Black Finish)

The Icom HM-195B (CommandMic IV) is a full-function remote-control microphone handset in a durable black finish, manufactured by Icom Inc. in Japan. Designed for secondary station control on commercial vessels, workboats, and motor yachts, the HM-195B extends complete operational command of fixed-mount VHF marine transceivers (including the IC-M423, IC-M400BB, IC-M506, IC-M605, IC-M510, and IC-M510BB series) to remote locations such as flybridges, bridge wings, or aft steering stations.

Featuring a high-contrast amber-backlit dot-matrix display and illuminated keys, the handset mirrors the primary radio’s menu interface, allowing operators to execute Class D DSC calls, change channels, adjust squelch/volume settings, and initiate intercom calls to the main console. Built to withstand open-deck marine exposure, the HM-195B offers IPX8 submersible protection and incorporates Icom’s AquaQuake water-draining technology.

Key Features:
• Total Remote Station Control: Delivers complete operational control over compatible Icom VHF radios, including full DSC functionality, channel selection, and menu access.
• High-Contrast Amber Backlit Display: High-resolution dot-matrix screen and illuminated keypad provide exceptional legibility during night operations.
• IPX8 Submersible Construction: Engineered to withstand heavy deck spray and continuous water immersion (up to 1.5 meters depth for 30 minutes).
• Intercom Capability: Supports full two-way intercom communication between the remote station and the main transceiver console.
• AquaQuake Draining Function: Emits low-frequency acoustic vibrations to quickly clear trapped water from the speaker grille after wave exposure.

Technical Specification

Attribute Specification Details
Manufacturer Icom Inc.
Model / Part Number HM-195B (P/N: HM195B – Black finish with amber backlight)
Item Type Full-Function Remote Station Handset / Command Microphone
Color / Finish Marine Black
Display Type High-contrast dot-matrix LCD with amber backlighting
Waterproof Rating IPX8 Submersible (1.5 m depth for 30 minutes)
Audio Output 2.0 W internal speaker for high-noise bridge wing/flybridge environments
Interface Functions Full DSC capability, channel selection, menu navigation, squelch/volume, intercom
Intercom Support Full dual-station intercom with main transceiver station
Cable / Connector Multi-pin waterproof connector with heavy-duty strain relief boot
Operating Temperature -20°C to +60°C (-4°F to +140°F)
Compatible Radios Icom IC-M423, IC-M400BB, IC-M506, IC-M510, IC-M605, IC-M510BB series
Compliance & Standards IEC 60945 (Marine Environmental), CE, RoHS
Application Secondary helm station control, flybridge VHF station, bridge wing remote handset
Country of Origin Japan
