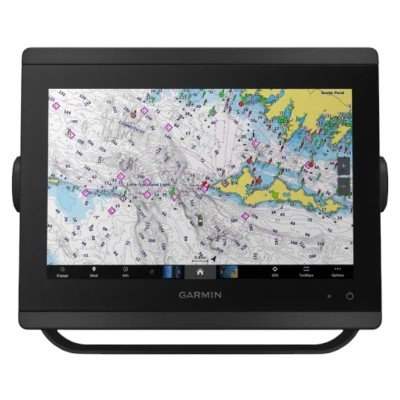

The GPSMAP® 8610 is a high-performance 10-inch multifunction display (MFD) that serves as a cornerstone for advanced marine electronics systems. This specific model comes preloaded with Garmin Navionics+™, providing integrated coastal and inland mapping that combines the best of Garmin and Navionics data.
| Category | Specification |
| Physical Dimensions | 25.9 x 20.5 x 7.5 cm (10.2″ x 8.1″ x 3.0″) |
| Display Resolution | 1920 x 1200 pixels (WUXGA) |
| Weight | 2.4 kg (5.2 lbs) |
| Water Rating | IPX7 |
| Power Input | 10 to 32 Vdc |
| Max Power Usage | 30 W |
| Typical Current Draw | 1.8 A (at 12 Vdc) |

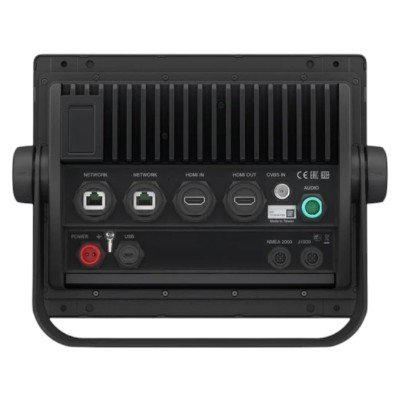

Garmin Marine Network™ Ports: 2
NMEA 2000® Ports: 1
NMEA 0183 Inputs/Outputs: 1 Input / 1 Output
J1939 Port: 1 (Dedicated engine data port)
Video Inputs: 1 BNC Composite; 1 HDMI (HDCP compliant)
Video Outputs: 1 HDMI
USB Ports: 1 Micro-USB (touch output)
Wireless: Wi-Fi, Bluetooth, and ANT+
GPS Receiver: Internal 10 Hz high-sensitivity GPS/GLONASS/Galileo
Data Storage: 2 microSD™ card slots (located on the rear)
User Data: 5,000 waypoints; 100 routes; 50,000 track points
OneHelm™ Integration: Centralizes control for third-party systems like lighting, digital switching, and stabilization.

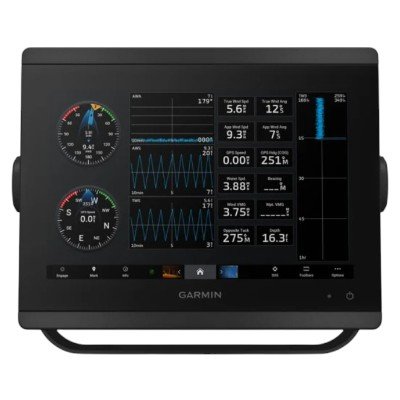

Sailing Features: Includes Garmin SailAssist™ for laylines, race start-line guidance, and enhanced wind data.
Sonar Support: Fully compatible with external GSD™/GCV™ sonar modules and Panoptix™/LiveScope™ systems.
