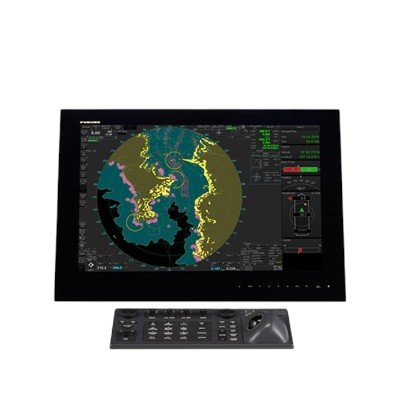

he Furuno FAR-30×5 Series is a commercial marine Chart Radar system designed for merchant vessels, offshore vessels, and workboats. It provides accurate detection and tracking of surrounding vessels, land masses, navigational marks, and other targets for safe navigation and collision avoidance.
The series is available in X-Band and S-Band configurations, including both magnetron and solid-state NXT versions. It features Automatic Clutter Elimination (ACE), advanced target tracking, target trails, and high-resolution radar presentation. The radar can be integrated with other bridge navigation equipment such as ECDIS, AIS, GPS/GNSS, gyrocompass, speed log, and other navigation sensors.
| Parameter | Specification |
|---|---|
| Manufacturer | Furuno |
| Series | FAR-30×5 |
| Equipment Type | Marine Chart Radar |
| Application | Merchant vessels / Workboats |
| Radar Bands | X-Band / S-Band |
| Radar Technology | Magnetron / Solid-State NXT |
| Models | FAR-3015, FAR-3025, FAR-3025-NXT, FAR-3035S, FAR-3035S-NXT |
| Peak Output – FAR-3015 | 12 kW |
| Peak Output – FAR-3025 | 25 kW |
| Peak Output – FAR-3025-NXT | 600 W solid-state |
| Peak Output – FAR-3035S | 30 kW |
| Peak Output – FAR-3035S-NXT | 250 W solid-state |
| X-Band Frequency – Magnetron | 9410 MHz ±30 MHz |
| S-Band Frequency – Magnetron | 3050 MHz ±30 MHz |
| X-Band Solid-State Frequency | 9403.75 / 9413.75 MHz PON channels |
| S-Band Solid-State Frequency | 3043.75 / 3053.75 MHz PON channels |
| Range Scale | 0.125 to 96 NM |
| Antenna Rotation | 24 / 42 rpm |
| Polarization | Horizontal |
| Radar Antenna Type | Slotted waveguide array |
| X-Band Antenna Sizes | 4 ft / 6.5 ft / 8 ft |
| S-Band Antenna Sizes | 8 ft / 10 ft / 12 ft |
| X-Band Beam Width | Approx. 1.9° / 1.23° / 0.95° depending on antenna |
| S-Band Beam Width | Approx. 2.6° / 2.3° / 1.8° depending on antenna |
| Vertical Beam Width | X-band: 20°; S-band: 25° |
| Maximum Wind Load | 100 knots relative |
| Signal Connection | Ethernet between antenna and processor |
| Interface | IEC 61162-1 / IEC 61162-2 and network interfaces |
| Protection – Antenna Unit | IP56 |
| Operating Temperature – Antenna Unit | −25°C to +55°C |
| Power Supply | AC 100–230 V, 50/60 Hz |
| Target Tracking | Advanced Target Tracking (TT) |
| Clutter Reduction | Automatic Clutter Elimination (ACE) |
| Interference Reduction | Advanced Interference Reduction |
| Compliance | IMO / IEC / ITU marine radar standards applicable to configuration |
