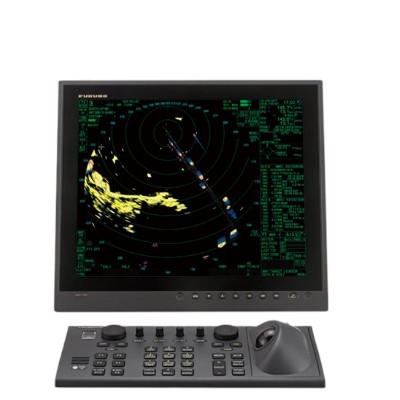

The Furuno FAR-2xx8 Series is a commercial X-band and S-band marine radar system designed for merchant vessels and workboats. It provides high-resolution radar images for vessel detection, navigation and collision avoidance. The series combines advanced signal processing with Automatic Clutter Elimination (ACE), Fast Target Tracking™, AIS display and echo trails.

The series is available in both magnetron and solid-state NXT configurations. The NXT versions provide solid-state target detection with lower maintenance requirements because there is no magnetron to replace.

Key Features

Automatic Clutter Elimination (ACE) for sea and rain clutter suppression.
Fast Target Tracking™ for rapid presentation of target course and speed vectors.
AIS compatibility for displaying AIS targets together with radar targets.
Solid-state NXT technology for reduced maintenance and reliable detection of weak echoes.
Echo Trails for monitoring target movement.
Ethernet connection between antenna and processing equipment.
Integration with ECDIS, GPS/GNSS, AIS, gyrocompass and other bridge sensors.
Available as X-band and S-band radar.
Complies with applicable IMO/IEC/ITU marine radar requirements for the relevant configuration.

Technical Specification

Parameter	Specification
Manufacturer	Furuno Electric Co., Ltd.
Equipment	Marine Radar / Chart Radar
Series	FAR-2xx8
Radar Bands	X-Band / S-Band
X-Band Frequency	9410 MHz ±30 MHz
S-Band Frequency	3050 MHz ±30 MHz
X-Band Solid-State	9403.75 / 9413.75 MHz PON channels
S-Band Solid-State	3043.75 / 3053.75 MHz PON channels
X-Band Output	12 kW / 25 kW / 600 W NXT
S-Band Output	30 kW / 250 W NXT
Range Scales	0.125–96 NM
Antenna Type	Slotted waveguide array
X-Band Antenna Lengths	4 ft / 6.5 ft / 8 ft
S-Band Antenna Lengths	8 ft / 10 ft / 12 ft
X-Band Horizontal Beam Width	1.9° / 1.23° / 0.95°
S-Band Horizontal Beam Width	2.6° / 2.3° / 1.8°
Vertical Beam Width	X-Band: 20°; S-Band: 25°
Antenna Rotation	24 / 42 rpm
Minimum Range	Approx. 22 m
Range Discrimination	Approx. 26 m
Range Accuracy	1% of maximum range or 10 m, whichever is greater
Bearing Accuracy	±1°
Display Modes	Head-up, North-up, Course-up, Stern-up, Stabilized Head-up
Target Tracking	Fast Target Tracking™
AIS	Supported
Echo Trails	Supported
Clutter Reduction	Automatic Clutter Elimination (ACE)
Processor Interface	Ethernet / IEC navigation interfaces
Antenna Protection	IP56
Antenna Operating Temperature	−25°C to +55°C
Power Supply	100–230 VAC, 50/60 Hz; selected configurations support 24 VDC
