$900.00Earn 900 points!
The Furuno FA-40 is a compact AIS (Automatic Identification System) receiver designed to receive AIS signals from nearby vessels and coastal stations. Unlike transponders, it is a receive-only device, meaning it does not transmit your vessel’s information.
It is mainly used to monitor vessel traffic and improve situational awareness onboard
| Parameter | Specification |
|---|---|
| Equipment Type | AIS Receiver (Receive only) |
| AIS Class | N/A (Receiver only, no transmission) |
| Receiver Channels | Dual-channel AIS receiver |
| AIS Standard | ITU-R M.1371, IEC 61993-2 |
| Function | Reception of AIS signals from ships and stations |
| Parameter | Specification |
|---|---|
| Frequency Range | 156.025 – 162.025 MHz |
| AIS Channels | AIS1 (161.975 MHz), AIS2 (162.025 MHz) |
| Channel Spacing | 25 kHz |
| Modulation | GMSK |
| Receiver Type | Dual superheterodyne |
| Sensitivity | ≤ –107 dBm |
| Data Rate | 9,600 bps |
| Parameter | Specification |
|---|---|
| Message Capacity | High-speed reception (multi-target tracking) |
| Reception Mode | Simultaneous dual-channel reception |
| Supported Targets | Class A, Class B, AIS AtoN |
| Update Rate | Real-time (dependent on received signals) |
| Parameter | Specification |
|---|---|
| GPS Receiver | Not included (external GPS required if needed) |
| Function | AIS data only (no own ship position calculation) |
| Parameter | Specification |
|---|---|
| Data Output | NMEA 0183 (IEC 61162-1) |
| Baud Rate | 38,400 bps (AIS standard high speed) |
| Output Sentences | VDM (AIS message format) |
| External Connection | Radar, ECDIS, chartplotter, PC |
| Parameter | Specification |
|---|---|
| Input Voltage | 12 – 24 V DC |
| Power Consumption | Approx. 2–5 W (low power device) |
| Parameter | Specification |
|---|---|
| Operating Temperature | –15°C to +55°C |
| Relative Humidity | Up to 93% RH |
| Standard | IEC 60945 (marine equipment) |
| Parameter | Specification |
|---|---|

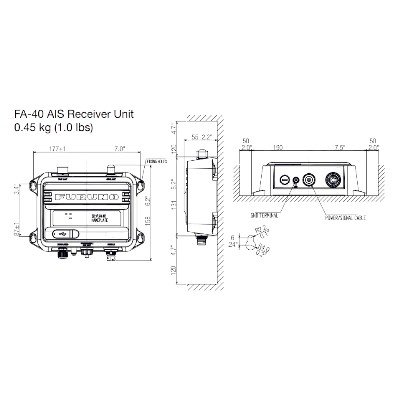

| Dimensions | Approx. 160 × 100 × 50 mm |
| Weight | ~0.5 – 1 kg |
| Component | Description |
|---|---|
| FA-40 Unit | AIS receiver (main unit) |
| VHF Antenna | External AIS antenna required |
| Power Cable | DC supply cable |
| Data Cable | NMEA output cable |
