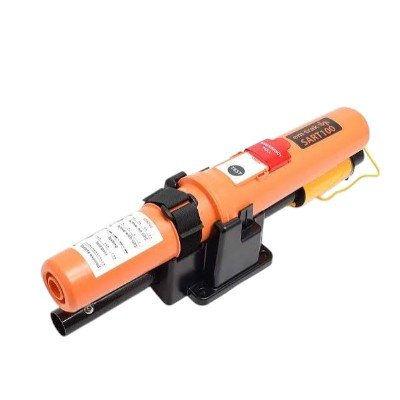

The EM-TRAK SART100 is an AIS Search & Rescue Transmitter (AIS-SART) designed for use aboard lifeboats, liferafts and other survival craft. It uses an integrated GNSS receiver to determine the unit’s position and transmits the position and identification information over the dedicated AIS channels. This allows nearby AIS-equipped vessels and rescue teams to quickly locate survivors.

Main Features

AIS-based Search & Rescue Transmitter
Dual AIS channels: 161.975 MHz and 162.025 MHz
Integrated GNSS positioning
1 W EIRP transmission power
Approx. 1-minute position reporting
Minimum 96-hour operating capability
Primary lithium battery
Manual activation
LED status indication
Compact survival-craft design
Suitable for SOLAS/GMDSS applications

Technical Specification

Manufacturer	EM-TRAK
Model	SART100
Equipment Type	AIS-SART – AIS Search & Rescue Transmitter
Application	Lifeboats, liferafts and survival craft
Origin	United Kingdom
AIS Frequency	AIS 1: 161.975 MHz / AIS 2: 162.025 MHz
Transmit Power	1 W EIRP
GNSS	Integrated GNSS receiver
Position Update	Approximately every 1 minute
Modulation	GMSK / AIS
AIS Messages	AIS Message 1 and Message 14
Operating Life	Minimum 96 hours
Battery	Primary lithium battery
Battery Service Life	Approximately 5 years
Activation	Manual
Operating Temperature	−20°C to +55°C
Storage Temperature	−30°C to +70°C
Waterproofing	Designed for survival-craft marine environment
Indication	LED status indication
Antenna	Dedicated SART antenna
Standards	IEC 61097-14, IEC 60945 and IMO MSC.246(83)
Function	Transmits identification and GNSS position to nearby AIS-equipped vessels/rescue units
