The Anschütz Standard 22 NX is a high-performance marine gyro compass designed to provide highly accurate true heading and rate-of-turn information for all types of commercial and naval vessels. It employs advanced gyroscopic technology with inductive and optical data transmission, eliminating slip rings to reduce wear and maintenance requirements. The system automatically compensates for speed and latitude errors using GNSS and speed log inputs, ensuring reliable heading performance even in high-latitude operations.

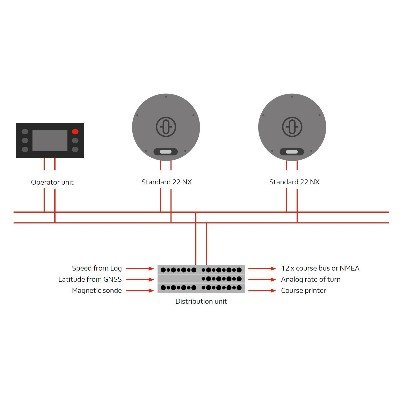

The Standard 22 NX integrates seamlessly with modern bridge systems—including ECDIS, radar, autopilot, AIS, VDR, and Integrated Navigation Systems (INS)—through serial, Ethernet, and redundant CAN bus interfaces. Its built-in web server enables fast configuration, diagnostics, and software updates without proprietary tools. Available as a standalone gyro compass or as part of an advanced heading management system, it offers high reliability, long service life, and compliance with the latest IMO, IEC, and cyber security standards.
| Parameter | Specification |
|---|---|
| Manufacturer | Anschütz GmbH |
| Model | Standard 22 NX |
| Equipment Type | Marine Gyro Compass |
| Principle of Operation | North-seeking gyrocompass providing true heading and rate of turn |
| Heading Accuracy | ±0.4° RMS (at secant latitude) |
| Settling Time | Approximately 1 hour (Quick Settling Mode, <3° error) |
| Power Supply | 18–32 V DC |
| Power Consumption | Max. 80 W (normal operation); Max. 140 W (heating phase) |
| Dimensions (H × W × D) | 432 × 415 × 415 mm |
| Weight | 17.5 kg (Master Compass) |
| Operating Temperature | −10°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Protection Class | IP22 |
| Roll & Pitch Capability | ±45° periodic roll and pitch |
| Maximum Follow-up Rate | 100°/s |
| Heading Outputs | True Heading, Rate of Turn (ROT) |
| Serial Inputs | 3 × IEC 61162/NMEA inputs (Position, Speed, BAM) |
| Serial Outputs | 4 × IEC 61162/NMEA outputs (Heading, ROT, BAM) |
| Ethernet Interfaces | 2 × 10/100 Mbps Ethernet (IEC 61162-450) |
| Analog Output | 1 × Rate of Turn (30°/min, 100°/min, or 300°/min) |
| Network Interface | Redundant CAN Bus, Ethernet |
| Supported Sensor Inputs | GNSS (GPS/GLONASS/Galileo), Speed Log, Bridge Alert Management (BAM) |
| Automatic Corrections | Automatic speed and latitude error correction |
| Configuration | Integrated web server for setup, diagnostics, and software updates |
| Integration | Radar, ECDIS, Autopilot, AIS, VDR, INS, Repeaters |
| Cyber Security | Complies with IACS UR E27 |
| Bridge Alert Management | IEC 62923-1 & IEC 62923-2 compliant |
| Communication Standards | IEC 61162-1, IEC 61162-450, CAN Bus |
| Approvals | IMO, MED, DNV, LR, ABS and other major classification societies (configuration dependent) |
| Key Features | High-accuracy true heading, no slip rings (inductive & optical transmission), quick settling, long gyrosphere life, redundant CAN bus architecture, heading management system support, web-based diagnostics, high-latitude performance, modular expansion to multi-gyro systems. |
