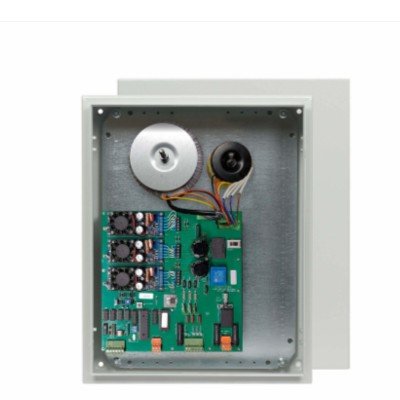

The AMI X903-X is a NMEA 0183 to Synchro converter designed to allow modern gyrocompasses that provide digital NMEA heading data to drive existing analogue synchro heading repeaters, autopilots and other navigation equipment. It is particularly useful when upgrading a vessel’s gyro while retaining existing synchro-based equipment.
| Parameter | Technical Specification |
|---|---|
| Manufacturer / Make | AMI Marine |
| Model | X903-X |
| Equipment Type | Synchro Retransmission Unit |
| Function | NMEA 0183 to Synchro conversion |
| Input | NMEA 0183 heading data |
| Input Source | Gyro Compass / Magnetic Compass heading |
| Synchro Output | Medium-power synchro signal |
| Standard Reference Voltage | 55 V Reference |
| Phase Voltage | 45 V Phase |
| Maximum Synchro Output | Approx. 54–55 V |
| Output Power | Up to 0.2 A per phase |
| Synchro Frequency | 50/60 Hz |
| Selectable Synchro Ratios | 1:1, 9:1, 10:1, 30:1, 36:1, 90:1, 180:1, 360:1 |
| Heading Resolution | Up to 0.01° depending on input data and ratio |
| Rotation | Smooth, software-controlled synchro rotation |
| Step-Up Transformer | Optional |
| High-Voltage Synchro | Supported using optional transformer |
| Output Protection | Synchro output overload protection |
| NMEA Failure Detection | Yes |
| Alarm | Fault/alarm relay |
| Power Supply | AC 115/220 V |
| Application | Gyro retrofits, heading repeaters, autopilots and navigation equipment |
| Mounting | Indoor / bulkhead mounting |
| Approval / Standard | IEC 60945 |
| Origin Country | United Kingdom |
| Latest Version | X9 series successor is referenced by AMI |
