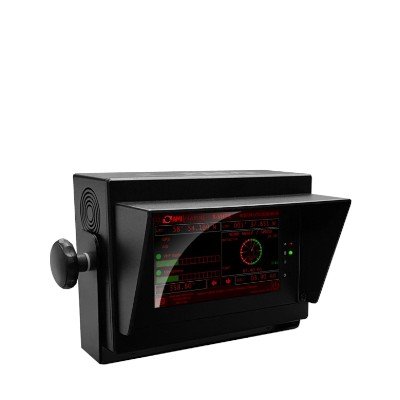

The AMI Marine X-VHFR Mini Data Recorder is a compact marine audio and data recording system designed for small vessels, workboats, tugs, ferries, offshore support vessels, and port control stations. It records VHF radio communications, bridge audio, GPS position, date and time, and AIS data for playback, training, and marine incident investigation.

Technical Specification

Parameter	Technical Specification
Manufacturer	AMI Marine
Model	X-VHFR
Equipment Type	Mini Vessel Audio and Data Recorder
Power Supply	24 V DC
Display	7-inch Colour Touchscreen
Audio Inputs	2 VHF Radio / Microphone Inputs
GPS Input	NMEA 0183, 4800 baud
AIS Input	NMEA-HS, 38400 baud
Navigation Data	GPS, AIS, Heading, Speed Log and other NMEA 0183 data
Storage Capacity	1 TB Removable Storage Drive
Recording Duration	Up to approximately 300 days, depending on configuration
Optional Data Capsule	64 GB Float-Free Capsule
Playback	PC-Based Replay Software
Display Features	Recording Status Indicators, Night Mode
Display Unit Dimensions	310 × 190 × 190 mm
Display Unit Weight	2.8 kg (with 1 TB storage)
Interface Unit Dimensions	180 × 150 × 50 mm
Interface Unit Weight	800 g
