The X-MDR is AMI Marine’s compact, non-mandatory mini voyage data recorder designed for smaller vessels. It records navigation, audio and optional visual/CCTV data, including NMEA, AIS, VHF/bridge audio, and images from radar, ECDIS or chart plotters.

Technical Specification

Parameter	Technical Specification
Manufacturer	AMI Marine
Model	X-MDR
Equipment Type	Mini Voyage Data Recorder / Multimedia Data Recorder
Application	Smaller vessels, workboats, support vessels, cargo vessels and specialist craft
Intended Vessel Size	Typically vessels under 3000 GRT that do not require a mandatory VDR/S-VDR
Display	Full-colour capacitive touchscreen
Display Options	10.1-inch or 13.3-inch display
NMEA Inputs	9 × NMEA inputs
NMEA Data Rate	4,800 to 38,400 baud
Bridge Audio Inputs	6 channels
VHF Audio Inputs	2 channels

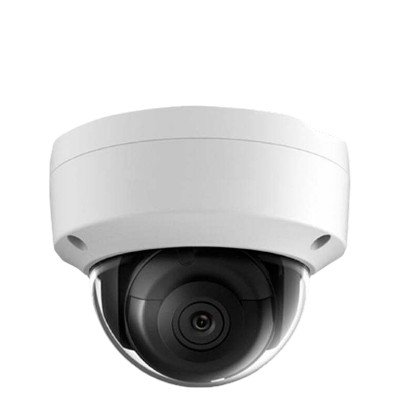

IP Camera Inputs	Up to 8 IP cameras
CCTV Resolution	2 MP HD
CCTV Protection	IP67
CCTV IR Range	Up to 30 m
Navigation Data	GPS, position, speed, heading and other NMEA data
AIS Data	AIS data recording

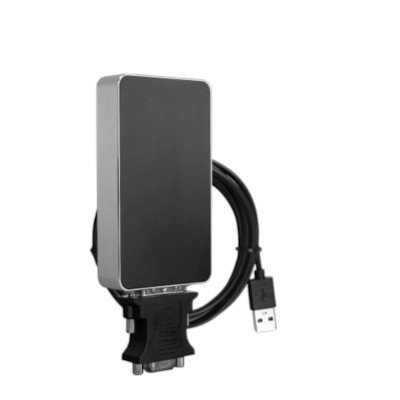

Radar/ECDIS Recording	Optional image/video capture from Radar, ECDIS and Chart Plotter
Video Input Resolution	Up to 1920 × 1200
Storage	2 TB standard system configuration
Extended Storage	Up to 4 TB
Recording Duration	Approximately 11–60 days with camera streams, depending on configuration
Power Supply – MEU	24 V DC

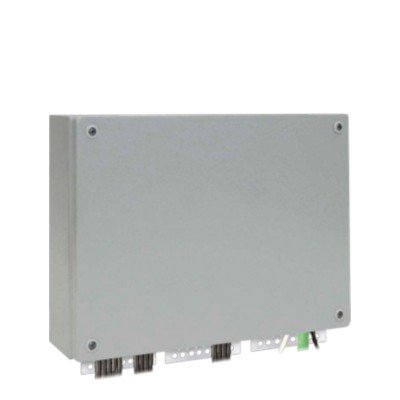

Main Electronic Unit Dimensions	330 × 400 × 120 mm
Main Electronic Unit Weight	7.7 kg
Touchscreen Display Dimensions	320 × 210 × 68 mm
Touchscreen Display Weight	2 kg
Microphone	600-ohm balanced audio, built-in self-test
External Microphone Protection	IP66
Replay Software	AMI Marine PC replay software
Replay Functions	Voyage playback, vessel movement mapping and data download
Float-Free Capsule	Optional
UPS	Optional battery-backed UPS
Origin Country	United Kingdom
IMO / SOLAS Status	Non-mandatory Mini Data Recorder; not a substitute for an IMO/SOLAS type-approved VDR/S-VDR
