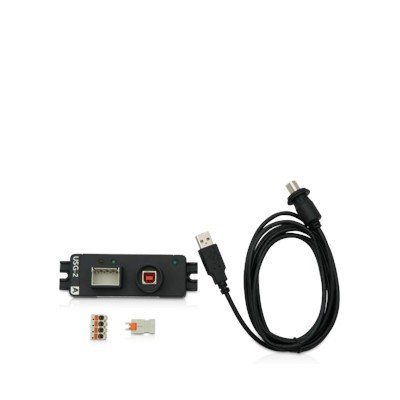

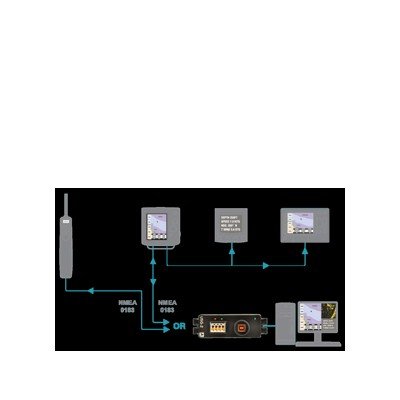

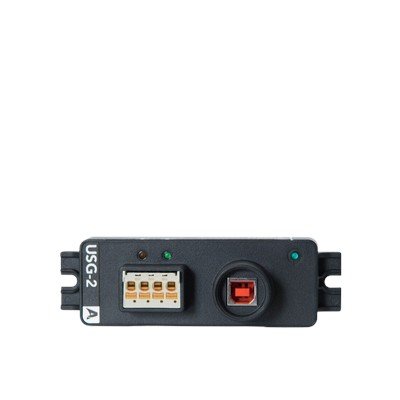

The AMI Marine USG-2 USB to Serial Gateway (SKU: ACT-0075) is a bidirectional interface that connects a computer or laptop to a marine NMEA 0183 data network through a USB port. It supports NMEA 0183, RS-422 and RS-232 communication, allowing marine navigation instruments to exchange serial data with compatible computer software. Its opto-isolated input and ISO-Drive™ isolated output help protect connected equipment, reduce ground-loop problems and improve electrical safety. It also creates a virtual COM port for use with compatible marine navigation and monitoring applications.
|
Specification |
Details |
|---|---|
|
Make |
AMI Marine / Actisense |
|
Model |
USG-2 |
|
SKU |
ACT-0075 (AMI Marine listing) |
|
Product Name |
USB to Serial Gateway |
|
Equipment Type |
Bidirectional USB-to-Serial Interface |
|
Communication Standards |
NMEA 0183, RS-422, RS-232 |
|
USB Interface |
USB Type-B |
|
Computer Interface |
Virtual COM Port |
|
NMEA 0183 Inputs |
1 isolated listener/input |
|
NMEA 0183 Outputs |
1 isolated talker/output |
|
Baud Rate |
300–230400 bps |
|
Input Isolation |
2500 V opto-isolation |
|
Output Isolation |
1500 V ISO-Drive™ |
|
Power Supply |
5 V DC via USB |
|
Current Consumption |
Approximately 50 mA at 5 V DC |
|
Protection |
Overvoltage, ESD and short-circuit protection |
|
Status Indicators |
Power and data activity LEDs |
|
Housing |
Encapsulated electronics |
|
Ingress Protection |
IP67 |
|
Operating Temperature |
−25°C to +70°C |
|
Mounting |
Bulkhead mounting; optional DIN-rail kit |
|
USB Cable Length |
2 m |
|
Manufacturer |
Active Research Ltd. (Actisense) |
|
Origin Country |
United Kingdom |
