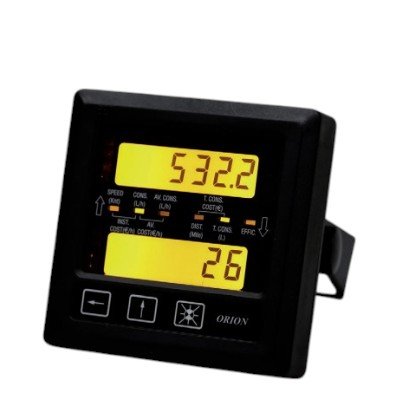

The AMI Marine ORION Ecometer is a marine fuel-consumption and fuel-efficiency monitoring system. It continuously calculates vessel fuel consumption and displays consumption in both volume and currency, together with distance and efficiency information.

Main Features

Real-time fuel consumption monitoring
Instantaneous and average consumption display
Consumption shown in L/h and currency/h
Total and daily fuel consumption
Total and daily vessel distance
Fuel-efficiency factor
Two fuel-flow sensors
NMEA 0183 interfacing
Adjustable gain, damping and display dimmer
Built-in keyboard-assisted maintenance/repair functions
Available for fuel-flow ranges up to 9,000 L/h

Technical Specification

Parameter	Specification
Make	AMI Marine
Model	ORION Ecometer
Product Type	Fuel Consumption / Econometer
Application	Marine vessel fuel-efficiency monitoring
SKU	BEN-0052
Power Supply	12–24 VDC
Current Consumption	Max. 100 mA
Fuel Sensor Inputs	2 × fuel sensor inputs
Fuel Meter Type	Oval-gear fuel flowmeters
Flow Range – 1/2 inch sensor	60–2,400 L/h
Flow Range – 1 inch sensor	600–9,000 L/h
Speed Input	1 × 1/200 nautical mile log speed input (dry contact), or NMEA 0183
NMEA Input Formats	RMA, RMC, VHW, VLW, VTG
Serial Input	RS-422 or RS-232
Outputs	Total consumption dry-contact output
NMEA Output	RS-422 or RS-232 NMEA 0183
Fuel Sensor Power	Dedicated power supply output
Display – Top	Speed, instantaneous consumption, average consumption
Display – Bottom	Total/daily distance, total/daily fuel consumption, efficiency factor
Currency Display	Worldwide currencies supported
Standard	IEC 61162-1
Cabinet Dimensions	114 × 114 × 28 mm
Cabinet Weight	Approx. 1 kg
1/2-inch Flowmeter	Ø110 × 106 mm; approx. 1.6 kg
1-inch Flowmeter	Ø120 × 117 mm; approx. 2.6 kg
