NAVDoctor is a compact wireless NMEA 2000 diagnostic and test tool designed for marine electronics technicians, installers and boat builders. It is powered directly from the NMEA 2000 network and creates a Wi-Fi connection to a smartphone, tablet or computer. Through a standard web browser, technicians can view connected devices, monitor PGNs, check network voltage and load, record NMEA 2000 data and generate a comprehensive network health report.
| Parameter | Technical Specification |
|---|---|
| Manufacturer | Digital Yacht |
| Supplied by | AMI Marine |
| Model | NAVDoctor |
| AMI SKU | DIG-0001 |
| Equipment Type | NMEA 2000 Wireless Diagnostic Tool |
| Network | NMEA 2000 |
| Network Interface | NMEA 2000 integral drop cable |
| Power Supply | Powered directly from NMEA 2000 network |
| Power Load | LEN 2, less than 100 mA |
| Wireless Interface | Built-in Wi-Fi |
| Wi-Fi Function | Creates local Wi-Fi network or joins existing network |
| User Interface | Web browser-based interface |
| App Required | No |
| Supported Devices | Smartphone, Tablet, Laptop or PC with web browser |
| Device Detection | Lists connected NMEA 2000 devices |
| Data Monitoring | Displays received NMEA 2000 PGNs |
| Network Health | Monitors bus voltage, bus load/capacity and key network parameters |
| Data Logging | Logs NMEA 2000 data to text file |
| Diagnostic Report | Generates Network Health Report |
| Report Format | Printable / PDF |
| Installation | Plug-and-play connection to powered NMEA 2000 network |
| Operating Mode | Portable; can also be permanently installed |
| Protection Rating | IP54 |

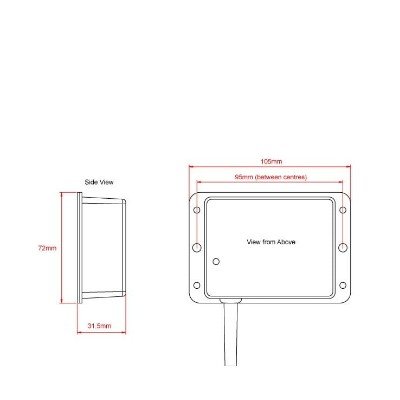

| Dimensions | 115 × 72 × 31.5 mm |
| Cable | 1 m NMEA 2000 drop cable |
| Antenna | Built-in Wi-Fi antenna |
| Typical Application | Installation, commissioning, troubleshooting and maintenance of NMEA 2000 networks |
| Origin / Manufacturer Country | United Kingdom |
