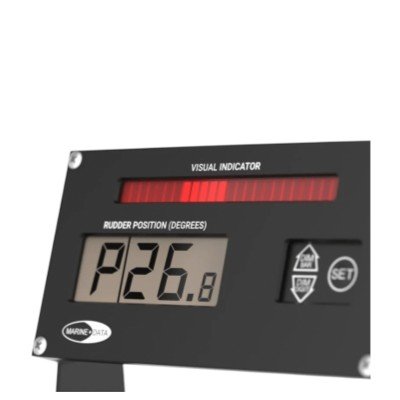

The AMI Marine MD74RDI Digital Rudder Angle Indicator is a compact marine navigation instrument designed to provide clear and accurate indication of a vessel’s rudder angle on the bridge. It receives rudder sensor information through NMEA 0183/RS422 and displays the rudder position digitally with 0.1° resolution.
The unit provides Port and Starboard indication using a high-visibility LED bar, allowing the bridge team to monitor rudder movement during steering, manoeuvring, and normal navigation. Its compact panel-mount design makes it suitable for integration into bridge consoles and steering control systems.
| Specification | MD74RDI Details |
|---|---|
| Manufacturer | AMI Marine / Marine Data |
| Model | MD74RDI |
| Equipment Type | Digital Rudder Angle Indicator |
| SKU | MNE-0066 / F074026 |
| Application | Marine bridge / steering system |
| Display Type | 4-digit digital LCD |
| Rudder Angle Resolution | 0.1° |
| Accuracy | ±0.1° |
| Indication | Port / Starboard |
| LED Indicator | Bar LED for Port and Starboard manoeuvres |
| Data Input | NMEA 0183 |
| Electrical Interface | Digital RS422 |
| NMEA Baud Rate | 4800 / 9600 / 19200 / 38400 Baud, auto-selecting |
| NMEA Sentence | RSA – Rudder Sensor Angle |
| Loss of Valid Data | Display shows “.0” and illumination is turned off |
| Power Supply | 24 V DC |
| Input Voltage | 18–32 V DC |
| Power Consumption | 10 W maximum |
| Dimming | 0–24 V DC |
| Mounting | Panel mount / optional bulkhead mount |
| Dimensions | H 137 × W 250 × D 57 mm |
| Fascia Size | 192 × 97 × 6 mm |
| Weight | Approx. 1.0 kg |
| Construction | Aluminium alloy enclosure |
| Finish | Jet Black, RAL9005 fine-texture powder coat |
| Operating Temperature | -15°C to +55°C |
| Environmental Classification | IEC 60945 – Protected Area |
| Compass Safe Distance | 20 cm standard / 20 cm steering |
| Standards | IEC 60945, IEC 61162-1, IEC 62288 |
| IMO Standards | IMO A.694(17), MSC.36(63), MSC.97(73), MSC.191(79) |
| Type Approval | DNV Wheelmark (0098), when installed as part of Marine Data Rudder Angle Indicator System |
| Accessories | MD74TB Bulkhead Mounting Kit; MD74DIM Remote Dimming Control |
| Origin Country | United Kingdom |
