The AMI Marine Vessel Locator Kit (KIT-0056) is a compact underwater vessel-location system designed primarily for workboats and smaller commercial vessels under 3000 GRT. It provides a simple, fit-and-forget method of locating a vessel if it becomes submerged, supporting salvage operations, emergency response and environmental protection.
The kit incorporates a PT9-NINETY Underwater Locator Beacon, installed in a dedicated mounting bracket. When submerged, the beacon automatically activates and transmits a 37.5 kHz acoustic signal for up to 90 days, allowing the vessel to be located underwater. The beacon has a stated three-year battery life, with AMI recommending periodic testing using the compatible acoustic beacon tester.
| Parameter | Technical Specification |
|---|---|
| Manufacturer | AMI Marine |
| Model / Kit | Vessel Locator Kit – KIT-0056 |
| Equipment Type | Underwater Vessel Locator System |
| Main Component | PT9-NINETY Acoustic Beacon – BEA-0001 |
| Mounting Bracket | MNT-0016 Specially Manufactured Bracket |
| Acoustic Frequency | 37.5 ± 1 kHz |
| Activation | Automatic when fully submerged |
| Activation Medium | Fresh Water / Salt Water |
| Operating Depth | 0.15 m to 6,096 m (20,000 ft) |
| Operating Duration | Up to 90 days after activation |
| Beacon Battery Life | Approximately 3 years |
| Beacon Dimensions | Approx. 98–100 mm × 33 mm diameter |
| Beacon Weight | Approx. 187–200 g |
| Bracket Dimensions | 109 × 51 × 45 mm |
| Bracket Weight | Approx. 100 g |
| Mounting Holes | 4 × 5 mm holes |
| Mounting Hole Centres | 60.9 × 30.1 mm |

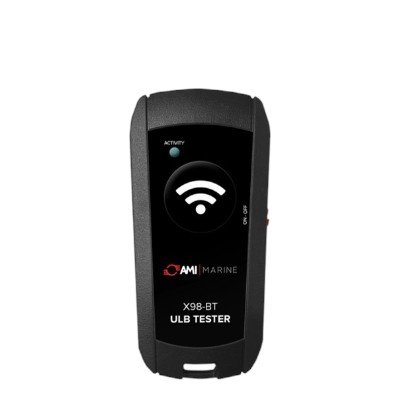

| Beacon Tester | AMI X98-BT Acoustic Beacon Tester |
| Tester Frequency Range | 30–45 kHz |
| Installation | Quick onboard installation by vessel crew |
| Typical Application | Workboats, commercial vessels and vessels under 3000 GRT |
| Location Method | Underwater acoustic signal detection |
| Primary Purpose | Locating a submerged vessel for salvage and recovery operations |
| Maintenance | Recommended beacon testing every 6 months |
| Origin – Kit Supplier | United Kingdom |
| Acoustic Beacon Manufacturer | Novega / PT9-NINETY |
| Beacon Standards | SAE AS8045A; IEC 61996-1 / applicable IMO requirements |
