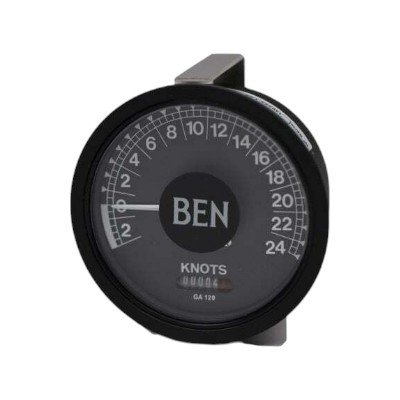

The AMI GALVA120 Analogue Speed and Distance Repeater is a compact marine repeater designed to display Speed Through Water (STW) in an analog format and distance travelled using a backlit electromechanical counter. The repeater is intended for use with compatible marine electromagnetic speed log systems and provides reliable, easy-to-read speed and distance information on the bridge. Its waterproof front panel and integrated backlighting make it suitable for marine bridge installations, including exposed bridge consoles. It is IMO Wheelmark approved and Bureau Veritas Type Approved.
| Parameter | Specification |
|---|---|
| Manufacturer | AMI Marine Ltd. |
| Model | GALVA120 |
| Equipment Type | Analogue Speed & Distance Repeater |
| Speed Display | Wide-angle Analog Galvanometer |
| Distance Display | Backlit Electromechanical Counter |
| Speed Input | 0–500 µA Analog Signal |
| Distance Input | 1/10 Nautical Mile Pulse Input |
| Standard Speed Scale | -2 to +16 knots |
| Optional Speed Scales | -3 to +24 knots, 0 to +48 knots |
| Display Lighting | Integrated Backlight |
| Lighting Supply | 24 VDC, 35 mA |
| Front Protection | Waterproof Front Panel |
| Mounting | Flush Panel Mount |
| Total Diameter | 110 mm |
| Dial Diameter | 97 mm |
| Depth | 72 mm |
| Weight | Approximately 0.5 kg |
| Operating Function | Displays Speed Through Water (STW) and Distance Run |
| Approvals | IMO Wheelmark, Bureau Veritas Type Approval |
