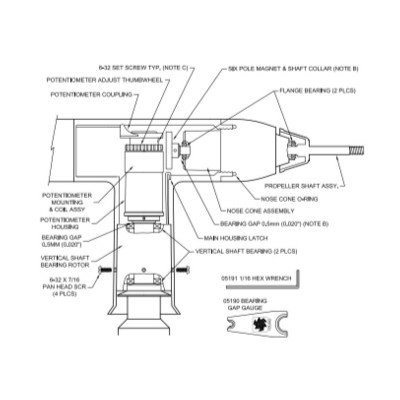

The YOUNG Model 05108 Wind Monitor-HD measures horizontal wind speed and direction. This sensor has many of the same features as Model 05106, including long-lasting, corrosion resistant, ceramic bearings and a ¼ inch diameter propeller shaft. It features a high pitch propeller that will extend bearing longevity due to its lower rotation rate at like wind speeds. The direct output for wind speed is an AC sine wave and direction is a precision potentiometer. The sensor mounts on a standard 1-inch IPS pipe.

Technical Specification

Parameter	Specification
Wind Speed Range	0–100 m/s (0–224 mph)
Azimuth Range	360° mechanical, 355° electrical (5° open)
Wind Speed Accuracy	±0.3 m/s (±0.6 mph) or 1% of reading
Wind Direction Accuracy	±3°
Propeller Threshold	1.0 m/s (2.2 mph)
Vane Threshold	1.0 m/s (2.2 mph)
Propeller Distance Constant	2.7 m (8.9 ft), 63% recovery
Vane Delay Distance	1.3 m (4.3 ft), 50% recovery
Damping Ratio	0.3
Damped Natural Wavelength	7.4 m (24.3 ft)
Undamped Natural Wavelength	7.2 m (23.6 ft)
Wind Speed Signal Output	Magnetically induced AC voltage, 3 pulses per revolution
Wind Speed Calibration	1800 rpm (90 Hz) = 15.0 m/s (33.6 mph)
Azimuth Signal Output	Analog DC voltage from conductive plastic potentiometer
Potentiometer Resistance	10 kΩ
Potentiometer Linearity	0.25%
Potentiometer Life Expectancy	50 million revolutions
Potentiometer Excitation	15 VDC maximum
Operating Temperature	-50°C to +60°C
Sensor Cable	Watertight pigtail cable supplied for electrical connections
Standard Cable Lengths	3 m, 8 m, and 12 m

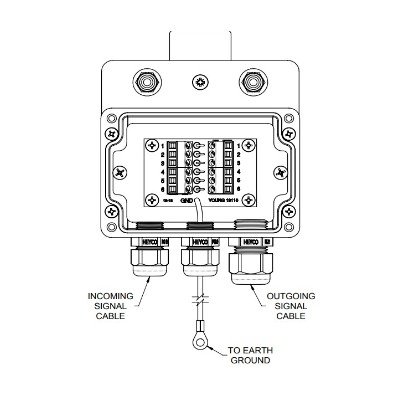

Longer Cable Connection	User-supplied junction box or connector may be used
Overall Height	37 cm (14.6 in)
Overall Length	55 cm (21.7 in)
Propeller Diameter	18 cm (7 in)
Mounting Diameter	34 mm (1.34 in), suitable for standard 1-inch pipe
Unit Weight	1.0 kg (2.2 lbs)
Shipping Weight	2.3 kg (5 lbs)
