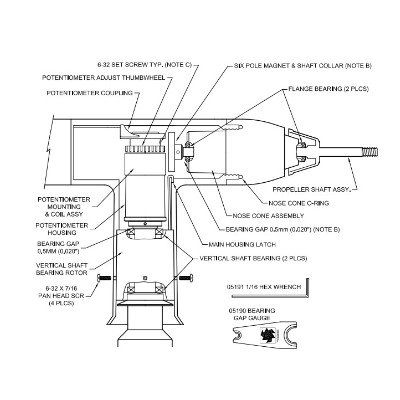

The YOUNG Model 05106 Wind Monitor-MA measures horizontal wind speed and direction. Similar in operation to Model 05103, it utilizes long-lasting, corrosion resistant, ceramic bearings and ruggedized vertical components for the additional rigors of a marine environment. The sensor is available with different cable lengths that are attached in a sealed capsule internal to the sensor. The direct output for wind speed is an AC sine wave and direction is a precision potentiometer. This sensor mounts on a standard 1-inch IPS pipe.

Technical Specification

Parameter	Specification
Wind Speed Range	0–100 m/s (0–224 mph)
Azimuth Range	360° mechanical, 355° electrical (5° open)
Wind Speed Accuracy	±0.3 m/s (±0.6 mph) or 1% of reading
Wind Direction Accuracy	±3°
Propeller Threshold	1.0 m/s (2.4 mph)
Vane Threshold	1.0 m/s (2.4 mph)
Propeller Distance Constant	2.7 m (8.9 ft), 63% recovery
Vane Delay Distance	1.3 m (4.3 ft), 50% recovery
Damping Ratio	0.3
Damped Natural Wavelength	7.4 m (24.3 ft)
Undamped Natural Wavelength	7.2 m (23.6 ft)
Wind Speed Signal Output	Magnetically induced AC voltage, 3 pulses per revolution
Wind Speed Calibration	1800 rpm (90 Hz) = 8.8 m/s (19.7 mph)
Azimuth Signal Output	Analog DC voltage from conductive plastic potentiometer
Potentiometer Resistance	10 kΩ
Potentiometer Linearity	0.25%
Potentiometer Life Expectancy	50 million revolutions
Potentiometer Excitation	15 VDC maximum
Operating Temperature	-50°C to +60°C
Sensor Cable	Watertight pigtail cable supplied for electrical connections
Standard Cable Lengths	3 m, 8 m, and 12 m
Extended Cable Installation	User-supplied junction box or connector may be used for longer cable lengths
Overall Height	37 cm (14.6 in)
Overall Length	55 cm (21.7 in)
Propeller Diameter	18 cm (7 in)
Mounting Diameter	34 mm (1.34 in), suitable for standard 1-inch pipe
Unit Weight	1.0 kg (2.2 lbs)
Shipping Weight	2.3 kg (5 lbs)
