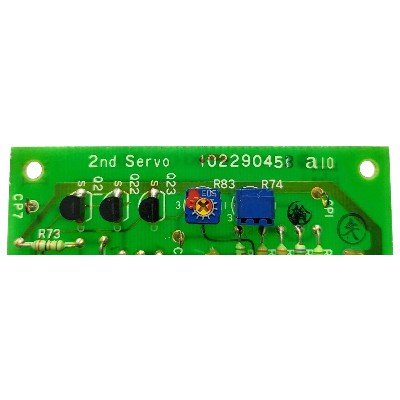

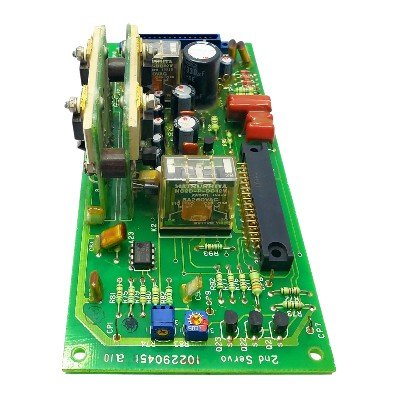

The Toyo Keiki 10229045 A10 is a specialized marine-grade servo control circuit board (PCB) manufactured by Toyo Keiki Co., Ltd. in Japan. Purpose-built for marine automation systems, indicator drive units, and closed-loop feedback controllers, the 10229045 A10 processes control signals to ensure high-precision positioning and measurement driving across vessel monitoring instrumentation.
Integrated within central bridge indicator displays, engine monitoring consoles, and maritime servo actuators, the board conditions input feedback signals, detects error deviations, and amplifies output power to drive physical servo mechanisms. Built with industrial-grade components and protective conformal coating, the 10229045 A10 delivers stable operation under constant shipboard vibration, electromagnetic interference, and temperature variations.
Key Features:
• Closed-Loop Servo Drive Circuitry: Provides precise signal amplification and error correction for smooth, accurate servo motor and indicator needle positioning.
• Marine-Grade Reliability: Conformal-coated PCB traces protect sensitive electronic components against marine salt air, humidity, and continuous vessel vibration.
• High-Integrity Signal Processing: Features onboard passive and active filters to suppress electrical noise and signal distortion on control lines.
• Standard Modular Integration: Compact, slide-in chassis board design with multi-pin edge/header connectors for direct field replacement and simplified maintenance.
• Dual Signal Compatibility: Engineered to process analog DC control voltages, resistance feedback loops, and synchro/servo inputs.
Input signals: Low‑level analog signals from gyro sensor or intermediate control electronics.
Output signals: Amplified analog drive signals to secondary servo actuator or control loop.
Amplification: Designed for high‑gain, low‑distortion signal amplification to maintain servo accuracy.
Noise Immunity: Circuit layout and component choices aimed at minimizing interference in a marine environment.
Power Compatibility: Powered from the gyrocompass main electronics bus (likely 24 V DC with onboard regulators), compatible with marine power systems.
| Attribute | Detail |
|---|---|
| Part Name | 2nd Servo Amplifier PCB |
| Part Number | 102290450 |
| Used In | Tokyo Keiki TG‑5000 Gyrocompass |
| Role | Amplifies secondary servo control signals |
| Type | Internal PCB module |
| Marine Suitability | Designed for vibration, noise, and environmental tolerance typical of shipboard navigation systems |
