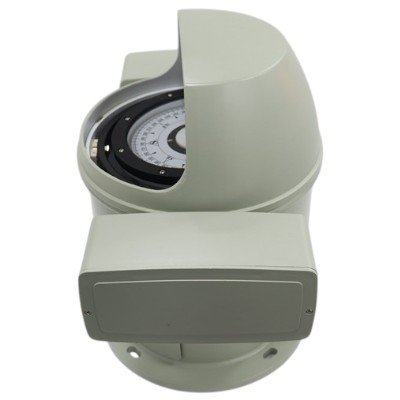

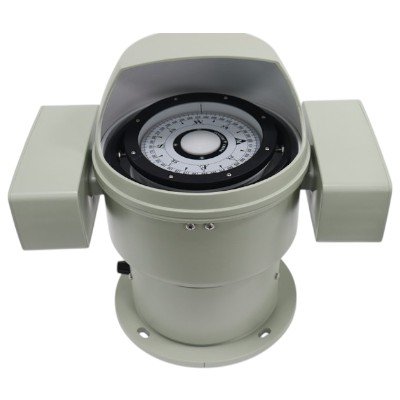

The Tengfei CPT-130A is a table-model (desktop) liquid magnetic compass designed for use as a steering compass on small steel vessels and medium-to-large motorized fishing boats. It is a Class A/B instrument (depending on certification) built to high international standards (GB/T 14108-2011 and ISO-449).
| Feature | Specification |
| Dial Diameter | 130 mm |
| Dial Graduation | 0° to 360° (1° per division) |
| Operating Temp | -25°C to +60°C |
| Indicating Error | ≤ 1.5° (Stable at H=35µT, T=20±3°C) |
| Friction Error | ≤ 0.26° |
| Half-Period | ≥ 5.59 seconds |
| Illumination | DC 24V (Standard for marine bridges) |
| Dimensions | Approx. 390 × 240 × 370 mm |
| Weight | ~7.5 kg to 9.0 kg (including stand) |
| Mounting | 4 holes; Pitch-row: 214 mm; Aperture: Φ10–12 mm |
