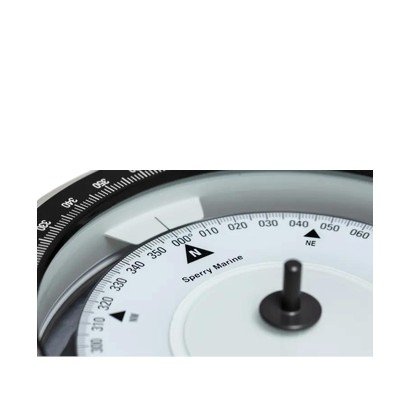

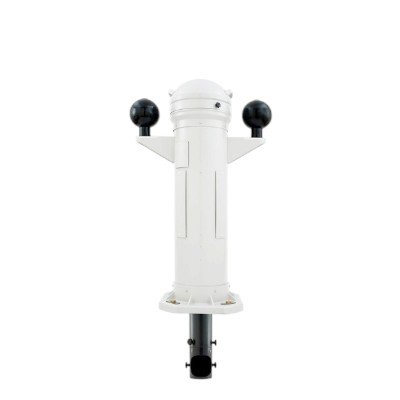

The Sperry Marine JUPITER and NAVIPOL Magnetic Compass System is designed to provide reliable and accurate heading information for marine navigation. The JUPITER is a Class A, flat-glass magnetic compass with a 180 mm compass card, while NAVIPOL is a series of durable aluminium-alloy compass binnacles designed to house the compass. The system supports steering, bearing and reflector compass applications and can be used as a standalone navigation instrument or alongside a gyrocompass system. It includes compass correction arrangements and illumination, with optional accessories such as an azimuth device and flux-gate sensor. The system is designed for dependable operation in demanding marine environments.
| Specification | Details |
|---|---|
| Make | Sperry Marine |
| Product Series | NAVIPOL |
| Product Name | Magnetic Compass Binnacle |
| Associated Compass | JUPITER Flat-Glass Magnetic Compass |
| Equipment Type | Marine Magnetic Compass System |
| NAVIPOL I | Standard and steering compass reflector binnacle |
| NAVIPOL II | Standard and steering compass binnacle |
| NAVIPOL III | Steering compass binnacle with window |
| NAVIPOL U | Reflector binnacle with bypass arrangement |
| Reflector Tube Length | 1000 mm, 1500 mm or 2000 mm, depending on model |
| Compass Card Diameter | 180 mm |
| Compass Accuracy | Better than 0.5° (JUPITER compass) |
| Binnacle Material | Seawater-resistant aluminium alloy |
| Standard Power Supply | 230 VAC, 115 VAC or 24 VDC, depending on configuration |
| Emergency Power Supply | 230 VAC, 115 VAC or 24 VDC, depending on configuration |
| Weight | Approximately 60 kg, as listed in manufacturer specifications |
| Accessories | Dimmer, correctors, optional protective cover and azimuth device |
| Approval | Manufacturer lists applicable MED type approvals |
| Application | Commercial vessels and marine bridge navigation |
