The SKIPPER DL1 is a Single Axis Speed Log, working on the doppler principle, providing longitudinal ship’s speed (STW) and distance relative to sea water. The SKIPPER DL1 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.
| Parameter | Specification |
|---|---|
| Manufacturer | SKIPPER Electronics AS (Jotron SKIPPER) |
| Model | DL1 |
| Equipment Type | Single Axis Doppler Speed Log |
| Measurement Principle | Doppler Effect |
| Measured Speed | Speed Through Water (STW) |
| Number of Axes | 1 (Longitudinal) |
| Speed Range | ±50 knots |
| Minimum Water Track | 3 m |
| Speed Accuracy | Better than ±0.2 knots or ±2% (whichever is greater) |
| Speed Resolution | 0.1 knot |
| Distance Measurement | Distance Through Water |
| Water Temperature | Yes |
| Temperature Accuracy | Better than ±1°C |
| Primary Operating Frequency | 715 kHz |
| Display Type | 28 × 30 Red LED Dot Matrix |
| Display Size | 144 × 144 mm (Front Panel) |
| Panel Cut-out | 124 × 124 mm |
| Display Depth | 59 mm |
| Weight | Approx. 1 kg (Display Unit) |
| Power Supply | AC 115–230 V, 50/60 Hz or DC 20–32 V (Automatic Changeover) |
| Power Consumption | Maximum 30 W |
| Sensor Cable Length | 40 m (Standard) |
| Outputs | 2 × NMEA 0183, 2 × Pulse Outputs, Alarm Relay |
| Inputs | 1 × NMEA 0183 (Opto-Isolated), External Dimming |
| NMEA Sentences | VBW, VHW, VLW, MTW |
| Speed Alarms | High Speed, Low Speed, Sensor Failure, Power Failure |

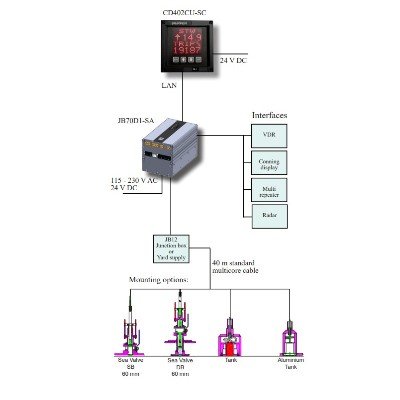

| Mounting Options | Sea Valve (60 mm & 100 mm), Steel Tank, Aluminium Tank, Retrofit Kits |
| Automatic Functions | Automatic Calibration & Automatic Settings |
| Display Features | User Programmable Screens, Day/Night Dimming, Menu Operation |
| Environmental Standard | IEC 60945 |
| Interface Standard | IEC 61162 (NMEA 0183) |
| IMO Compliance | IMO Wheelmark (MED-B) |
| Classification Approvals | MED-B, RMRS, CCS (Optional) |
